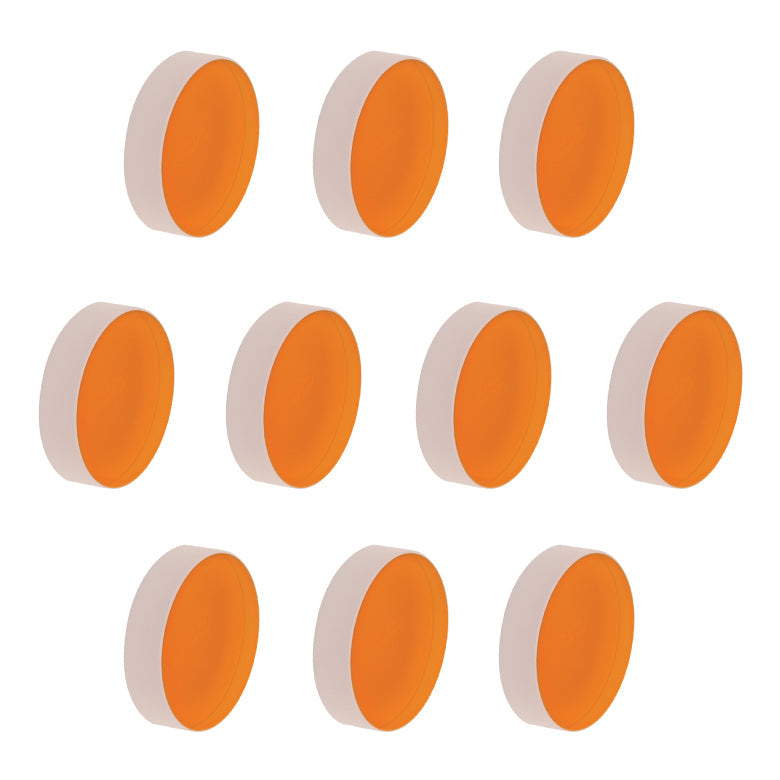

T-BB2-E04-10 - Ø2" Broadband Dielectric Mirror, 1280 - 1600 nm, 10 Pack
- Round Mirror Diameters: 7.0 mm, 1/2", 19.0 mm, 1", 2", 3", or 4"
- Square Mirror Edge Lengths: 1/2", 1", or 2"
- Four Broadband Coating Options
- 350 - 400 nm (Not Stocked with Ø7.0 mm, Ø3", Ø4", or Square Substrates)
- 400 - 750 nm
- 750 - 1100 nm
- 1280 - 1600 nm (Not Stocked with Ø3", Ø4", or Square Substrates)
- Fused Silica Substrates

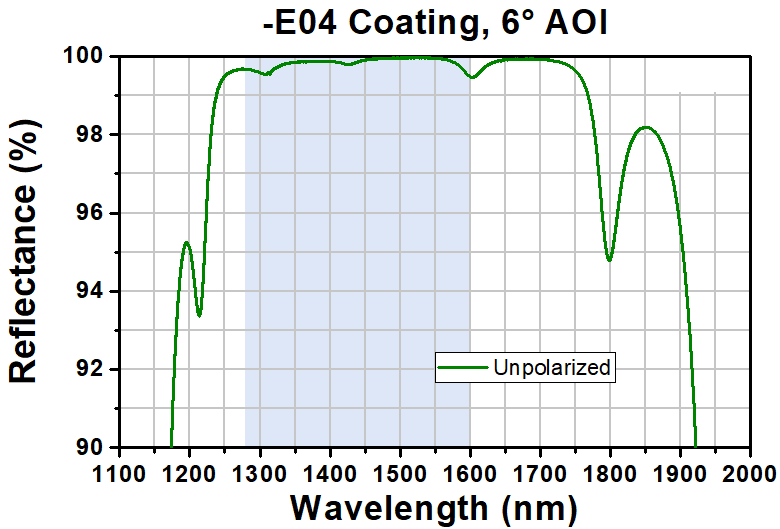

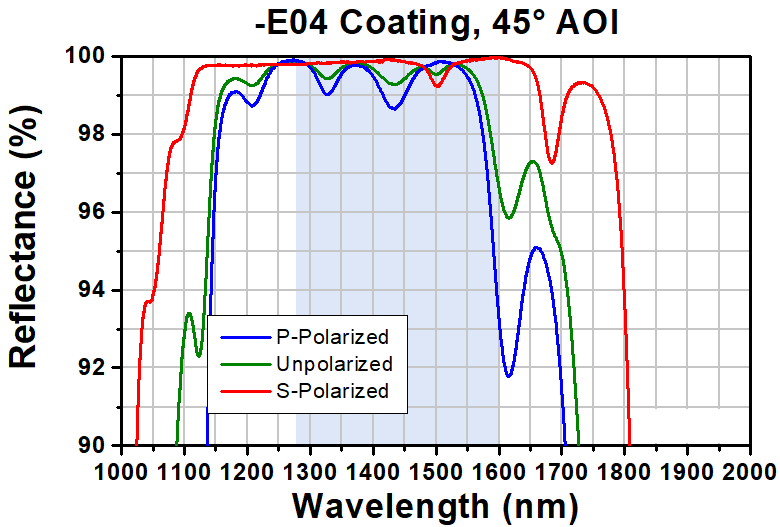

- Ravg > 99% for S- and P- Polarization for Angles of Incidence from 0 to 45°
- Designed for CW and Nanosecond Lasers
| Specifications |
| Material |
Fused Silica |
| Surface Flatness |
λ/10 at 633 nm |
| Surface Quality |
10-5 Scratch-Dig |
| Back Surface |
Fine Ground |
| Clear Aperture |
>85% of Diameter (Round)
>85% of Dimension (Square) |
| Parallelism |
≤3 arcmin |
|
Thickness
|
Ø7.0 mm Optics |
2.0 mm (0.08") |
| Ø1/2" Optics |
6.0 mm (0.24") |
| 1/2" x 1/2" Optics |
6.0 mm (0.24") |
| Ø19 mm Optics |
6.0 mm (0.24") |
| Ø1" Optics |
6.0 mm (0.24") |
| 1" x 1" Optics |
6.0 mm (0.24") |
| Ø2" Optics |
12.0 mm (0.47") |
| 2" x 2" Optics |
6.0 mm (0.24") |
| Ø3" Optics |
19.1 mm (0.75") |
| Ø4" Optics |
19.1 mm (0.75") |
| Thickness Tolerance |
±0.2 mm |
| Diameter Tolerance |
+0.0 mm / -0.1 mm |
