Description

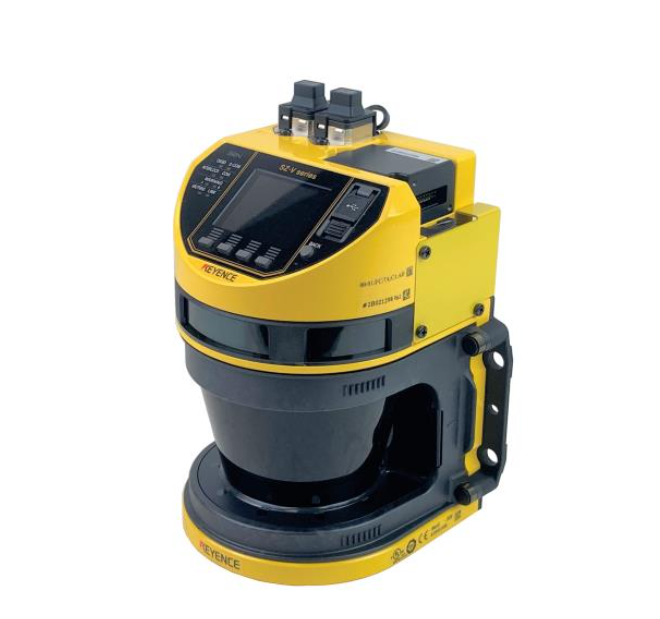

The Keyence SZ-V32NX is an advanced safety laser scanner with integrated camera and PROFIsafe network compatibility. Designed for precise area protection and monitoring, it provides flexible detection zones, high-speed scanning, and reliable integration into industrial safety networks. The SZ-V32NX combines visual confirmation, wide detection coverage, and robust communication for safe and efficient machine operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Safety Systems |
| Part Number |
SZ-V32NX |
| Subcategory |
Safety Laser Scanner |
| Type |
Network Type (PROFIsafe) with Camera Function |
| Detection Angle |
190° (−5° to 185°) |
| Minimum Detectable Object |
20–150 mm (configurable) |
| Protection Zone |
Up to 8.4 m (Standard), 5.7 m (High-Speed) |
| Warning Zone |
Up to 26 m |
| Response Time |
80–176 ms (High-Speed Mode) |
| Laser Source |
Infrared laser diode, 905 nm |
| Laser Class |
Class 1 (IEC60825-1, FDA 21CFR 1040.10, JIS C6802) |
| Display |
2.2-inch QVGA color LCD |
| OSSD Outputs |
2 transistor outputs (PNP/NPN selectable) |
| Max Load Current |
500 mA |
| Max Residual Voltage |
2.0–2.5 V |
| AUX Outputs |
4 transistor outputs, 50 mA max |
| Interface |
USB 2.0, Ethernet (IEEE802.3u 100BASE-TX) |
| Network Function |
PROFIsafe, PROFINET, EtherNet/IP, UDP |
| Power Supply |
24 VDC ±10% (ripple included) |
| Power Consumption |
13.4 W (scanner only), up to 50.8 W (system) |
| Ambient Light Resistance |
Up to 1500 lux |
| Operating Temperature |
−10°C to +50°C (14°F to 122°F) |
| Relative Humidity |
35–85% RH (no condensation) |
| Vibration Resistance |
10–55 Hz, 0.7 mm amplitude |
| Shock Resistance |
100 m/s² (10G), 1000 impacts each axis |
| Enclosure Rating |
IP65 (IEC60529) |
| Material – Scanner Head |
Magnesium case, Polycarbonate/PEI window, Aluminum indicator part |
| Material – Display Unit |
Magnesium/PPS/Polycarbonate case |
| Approved Standards |
IEC61496-1/3, EN ISO13849-1 (Cat 3, PLd), UL508, FCC Class A |
| Cable Length |
30 m (I/O), 20 m (scanner/display), 100 m (Ethernet) |
| Weight |
Approx. 4.93 lbs (2.3 kg) |
Information About SZ-V32NX
The SZ-V32NX is part of the Keyence SZ-V Series, engineered for intelligent safety area scanning with PROFIsafe and PROFINET network integration. It employs an infrared laser diode (905 nm) with Class 1 safety compliance under IEC, FDA, and JIS standards. The built-in QVGA 2.2-inch color LCD enables on-site visualization of detection zones and real-time status. With up to 32 banks of programmable areas and support for 3 scanner heads, the SZ-V32NX ensures maximum flexibility in complex automation environments. Constructed with magnesium and aluminum housings, it offers IP65 protection, long-term durability, and high vibration resistance.
Key Features:
- Integrated Camera Display: QVGA 2.2-inch color LCD provides visual confirmation of detection zones.
- PROFIsafe Compatibility: Supports PROFINET, EtherNet/IP, and UDP communication for industrial safety networks.
- Wide Detection Angle: Covers 190° (−5° to 185°) with protection zones up to 8.4 m and warning zones up to 26 m.
- Fast Response Time: Scanning cycles as short as 80 ms in high-speed mode.
- Multi-Head Configuration: Connect up to 3 scanner heads for expanded coverage and redundancy.
- Dual OSSD Outputs: Two independent transistor outputs (PNP/NPN selectable) for safety control.
- Rugged Construction: IP65 enclosure with magnesium case and reinforced polycarbonate lens window.
- Environmental Endurance: Operates between −10°C and +50°C, up to 85% RH, with 10G shock resistance.
- Long Cable Length: Supports up to 30 m I/O and 100 m Ethernet cable runs.
- Network Diagnostics: Includes FTP, SNTP, and OPC UA services for advanced monitoring and configuration.
The SZ-V32NX delivers precise safety monitoring and visual diagnostics, meeting modern industrial safety and automation standards.
