The powerful solution for your upstream software development

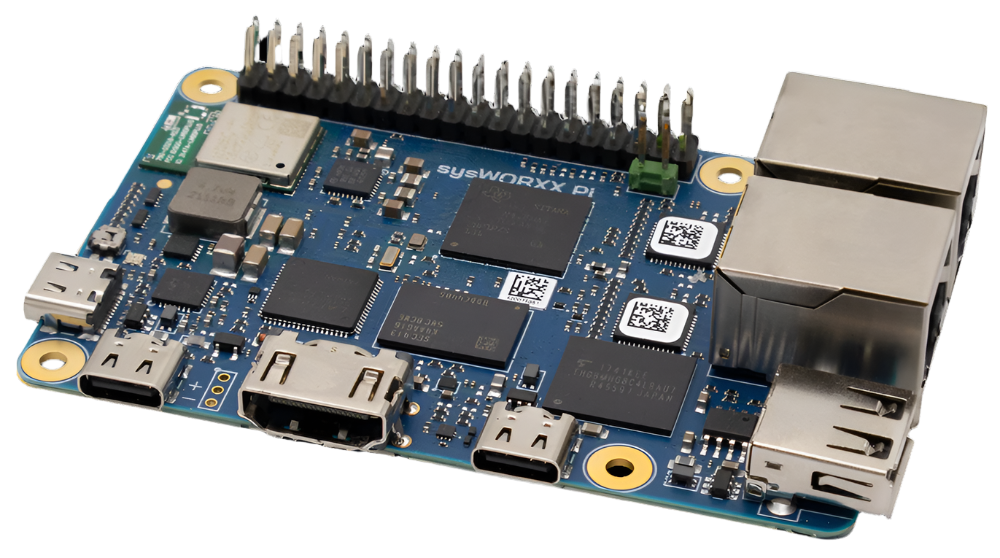

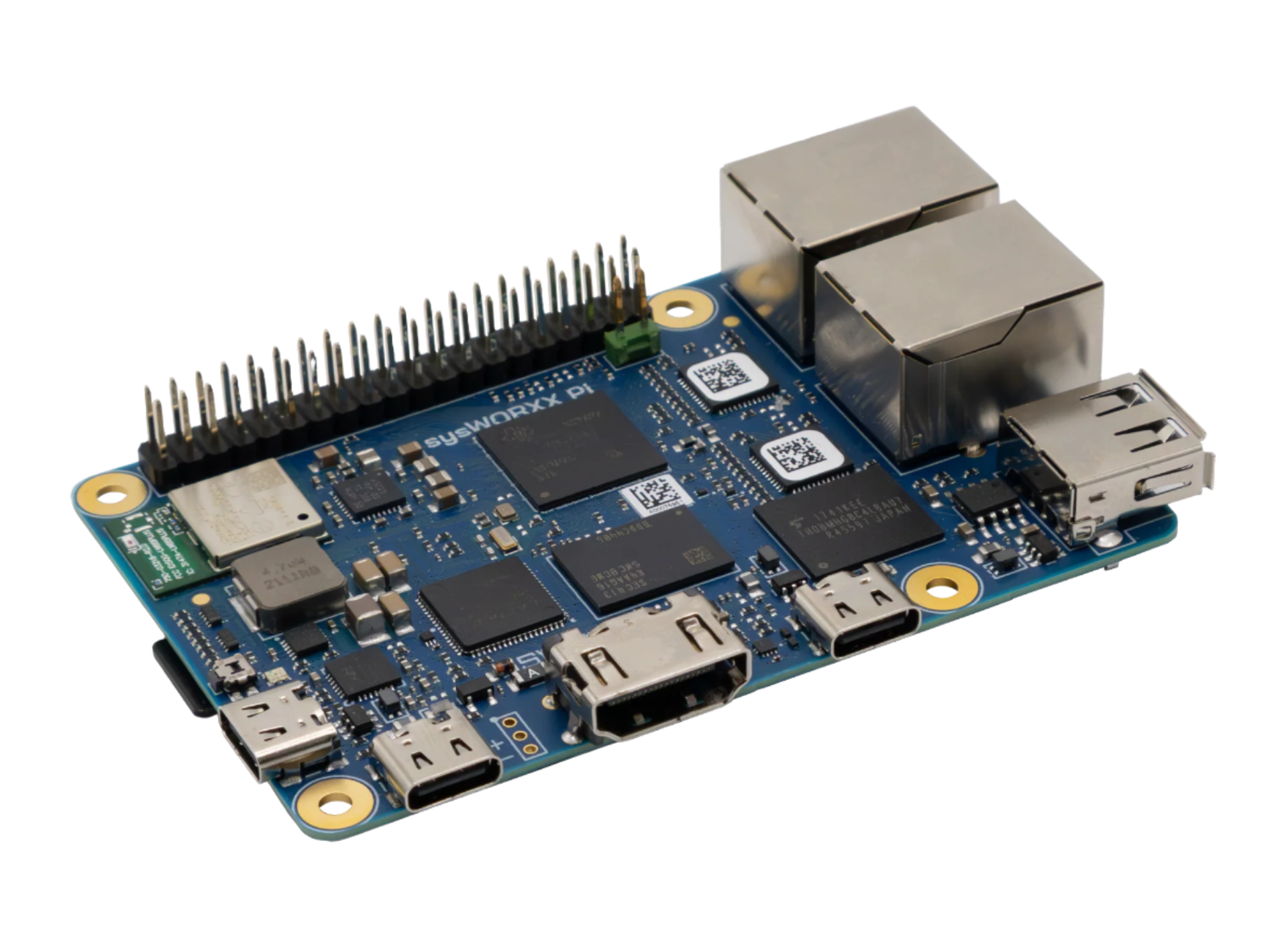

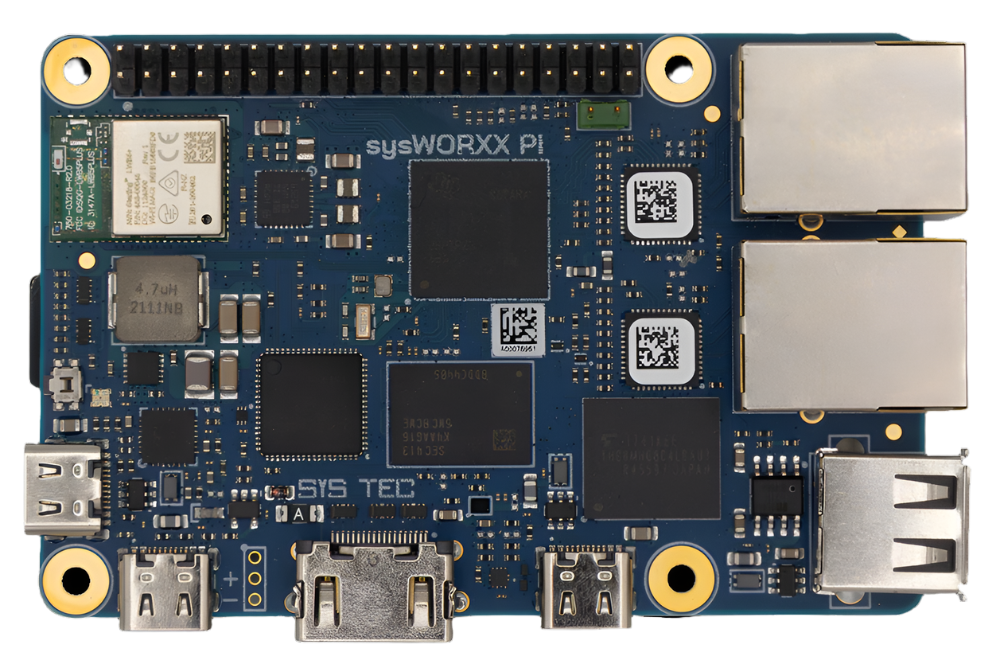

Industrial connectivity right on board. The sysWORXX Pi-AM62x is a powerful single board computer (SBC) for industrial applications, designed as an evaluation platform for our sysWORXX ECUcore-AM62x (SoM). It provides the perfect environment for testing hardware and software concepts in industrial networks and is fully embedded in the sysWORXX technology platform.

Dual Ethernet for maximum network flexibility:

• Separation of IT and OT networks (e.g. MQTT, OPC UA, Modbus/TCP, EtherCAT)
• Security architectures with gateway/firewall functionality
• Network monitoring and intrusion detection in the production network
• Real-time capable communication with industrial protocols (e.g. Profinet, EtherCAT)

Further highlights:

• USB, SIO, CAN and configurable GPIOs for easy peripheral integration
• Optional eMMC memory - robust & durable, ideal for industrial applications
• On-board RTC - for precise time stamps and synchronous process control

The sysWORXX Pi-AM62x enables fast and reliable validation of your system architecture - whether as a prototype, proof-of-concept or hardware-in-the-loop test platform.

• Entry into embedded Linux and network technology
• GPIO access for your own hardware developments
• Compatible with software solutions from the CTR controller series

Supported software and development environments:

• Freely programmable with C/C++, Rust, C#, Python
• Node-RED incl. sysWORXX node for low-code access to I/Os
• Support for CODESYS and OpenPCS
• RAUC framework for secure over-the-air updates
• Support for Docker for containerized applications

Core
CPU	TI Sitara™ AM6254 Quad-Core Cortex™-A53 @ 1.4 GHz, optionally with 3D Graphics Processing Unit
Real-time Co-Pro	Cortex™-M4 @ 400 MHz
RAM	2 GiB DDR4
eMMC	8 GiB (optional)
RTC	on board (optional external buffering by battery or gold cap)
Boot Mode	SD Card / eMMC

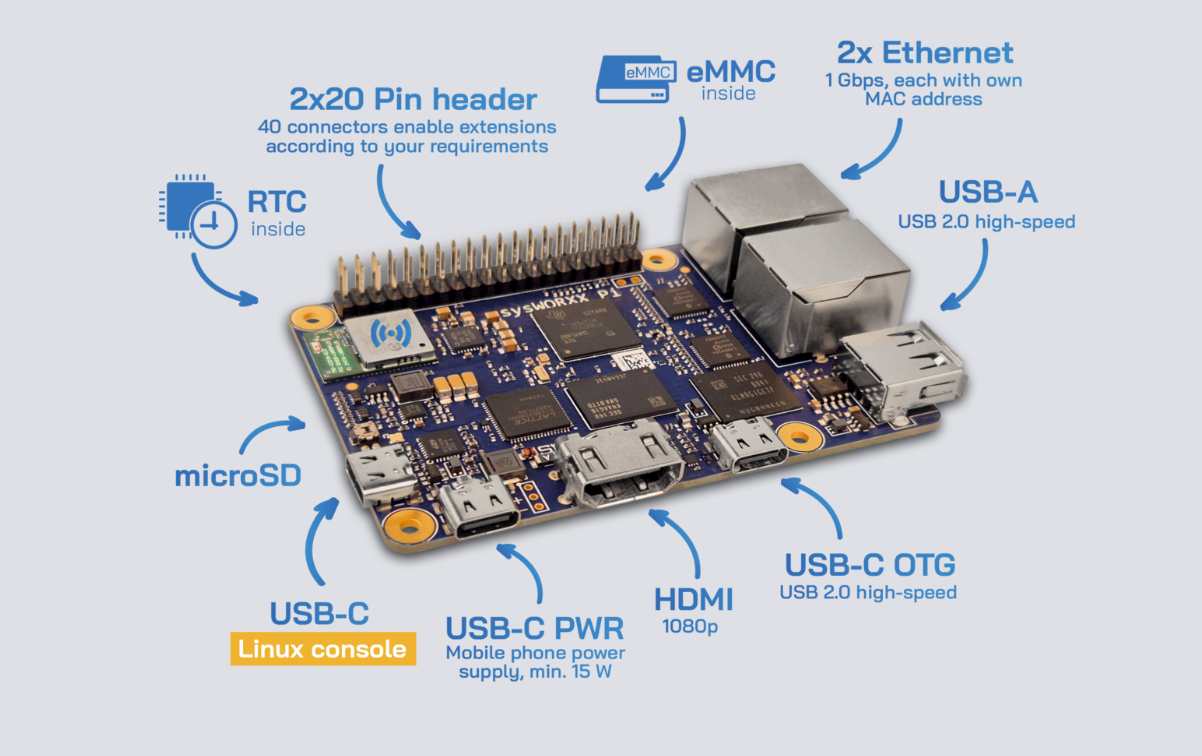

Connectivity
ETH	2 (1Gbps, each with its own MAC address)
USB Host	1 USB-A (USB 2.0 high-speed)
USB OTG	1 USB-C (USB 2.0 high-speed)
Display	1 HDMI (1080p)
Wi-Fi	802.11 a/b/g/n/ac
Bluetooth	5.2
40-pin pin header	max. 1 SPI
	max. 2 I2C
	max. 1 UART
	max. 1 CAN-FD
	max. 28 GPIO
Linux console	serial (on-board as USB-C)

NAME:	TYPE	SIZE	ACTION
Application Note (EN) - sysWORXX IO CODESYS	pdf	2 MB	Download
Data Sheet (EN) - sysWORXX Pi-AM62x	pdf	1 MB	Download
Data Sheet Addendum (EN) - sysWORXX AM62x device series	pdf	232 KB	Download
Node-RED I/O example (JSON)	zip	3 KB	Download
Node-RED InfluxDB-Demo (JSON)	zip	4 KB	Download
Quick Start Guide (EN) - sysWORXX Pi-AM62x	pdf	1 MB	Download
