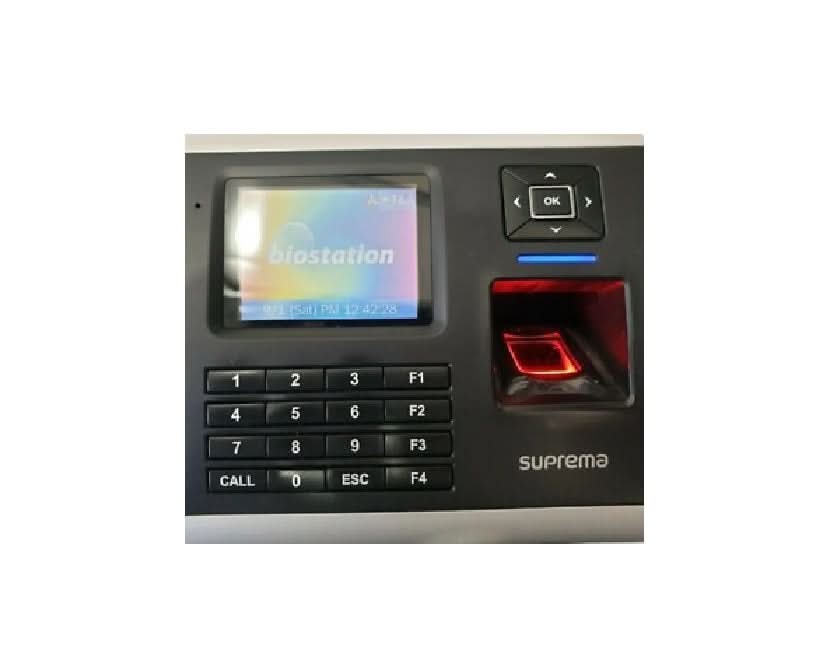

The BSH-OC is a specific variant of the Suprema BioStation, an IP-based fingerprint terminal. While the BEPL-OC (BioEntry Plus) you previously asked about is a slim, card-reader style device, the BSH-OC is a more robust terminal featuring a full color LCD screen and a numeric keypad for enhanced user interaction.

Specifications

Model Number: BSH-OC

Brand:Suprema

Alt Part Number(s):BSH-OC

Product Type:Fingerprint Terminal

Technical Description

Brand:Suprema

Model Number: BSH-OC

Series:  BioStation

CPU:  Dual CPU system (32-bit RISC + 400MHz DSP)

Memory:  72MB Flash + 34MB RAM

Fingerprint Sensor:  500 DPI Optical sensor

Authentication Speed:  1:3,000 matches per second

Time Clock Type:  Biometric Timeclock

Display: 2.5" 16M Color LCD

RF Option:  125kHz HID Prox

Interfaces:  TCP/IP, RS485, RS232, Wiegand (Input/Output), and USB memory slot

I/O & Relay:  1 Internal relay; 4 TTL inputs

Audio:  16-bit Hi-Fi sound for voice

Power:  12V DC

Mounting:  Wall mount or gang box mount
