Overview

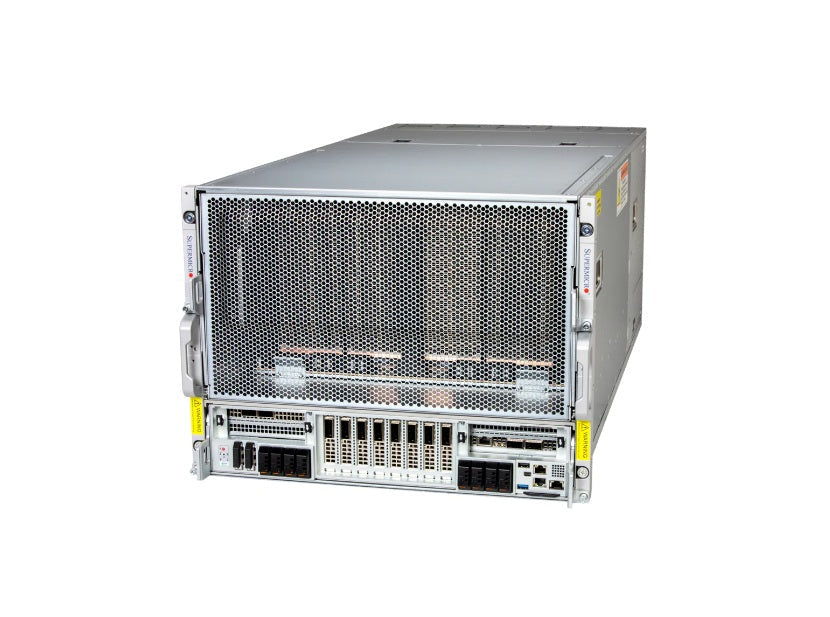

The Supermicro SYS-822GS-NBRT is a high-performance 8U GPU SuperServer specifically designed for intensive AI, deep learning, and High-Performance Computing (HPC) workloads. It is built around the NVIDIA HGX B200 8-GPU platform, leveraging the Blackwell architecture to provide massive computational power.
Specifications
Model Number: SYS-822GS-NBRT
Brand: Supermicro
Alt Part Number(s): SYS-822GS-NBRT
Product Type: GPU Server
Technical Description
Brand: Supermicro
Model Number: SYS-822GS-NBRT
Processor Type:Dual Intel Xeon 6700/6500-Series
Processor Socket: 2 × E2 (LGA‑4710)
Processor Core: 86 Cores / 172 threads per CPU
ProcessorCache: Up to 336 MB per CPU
Processor Power: 700W (350 W Per CPU)
Chipset Type: Intel C741
Motherboard: Super X14DBG‑LC+
Networking: 2 RJ45 10GbE ports (Intel X710) and 1 dedicated 1GbE IPMI LAN port
Storage: 8 × E1.S NVMe + 2 × M.2 NVMe
Drive Bays: 8 × front hot‑swap E1.S NVMe
Graphics Controller: ASPEED AST2600 BMC VGA
GPUSupported: NVIDIA HGX B200 8‑GPU
GPU Memory Size: 180GB
Memory Capacity: 256GB Per Slot
Memory Supported: 8TB(4TB per CPU)
Memory Technology: DDR5
Memory Channels: 16 Channels
Memory Slots: 32 x DIMM
Expansion Slots: 10 (8 LP + 2 FHHL)
Cooling: 12 heavy‑duty fans with air shroud
Power Supply: (3+3) Redundant 6600W CRPS 80 PLUS Titanium
Form Factor: 8U Rackmount/GPU Server
Height: 13.8″
Width: 17.6″
Depth: 37.4″
*
