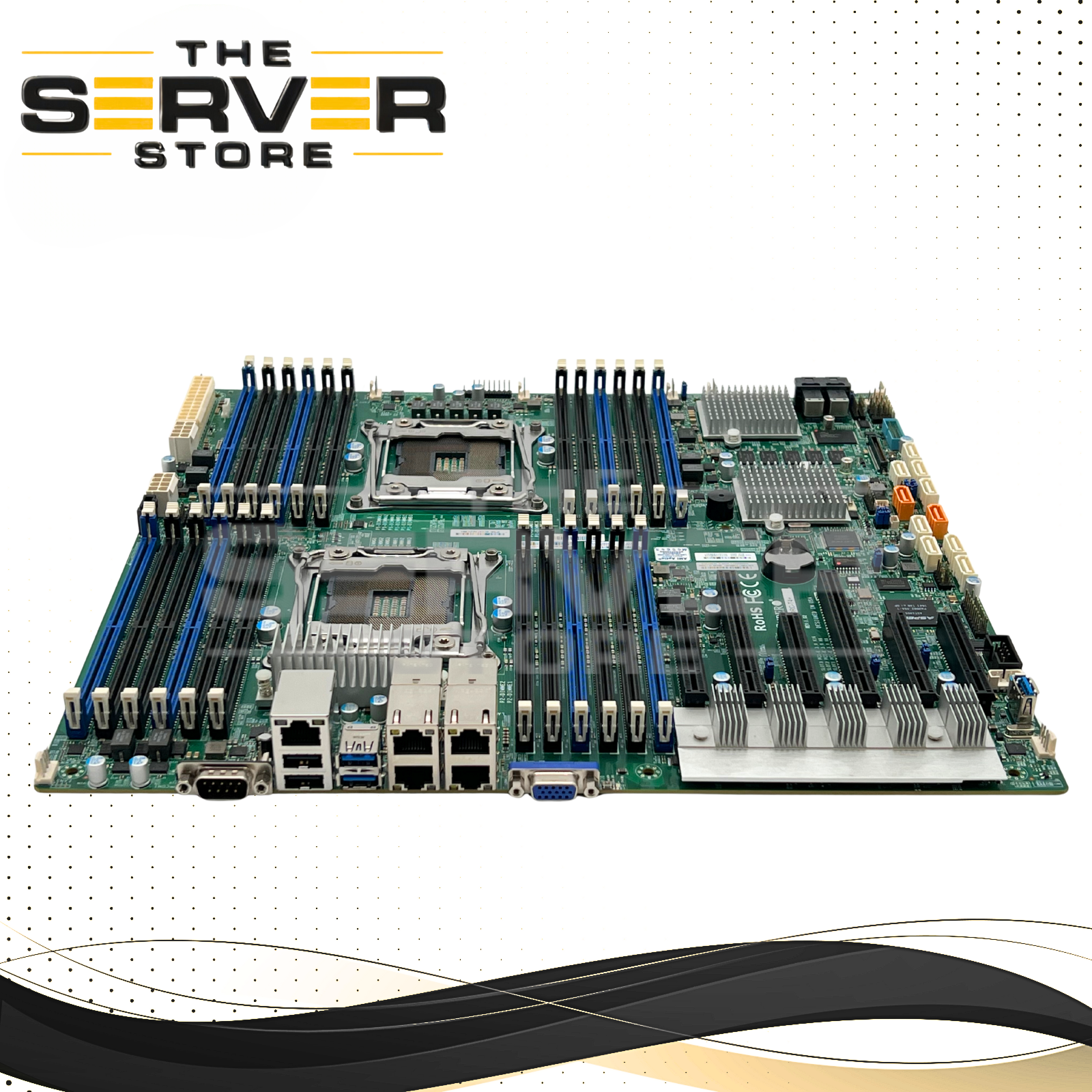

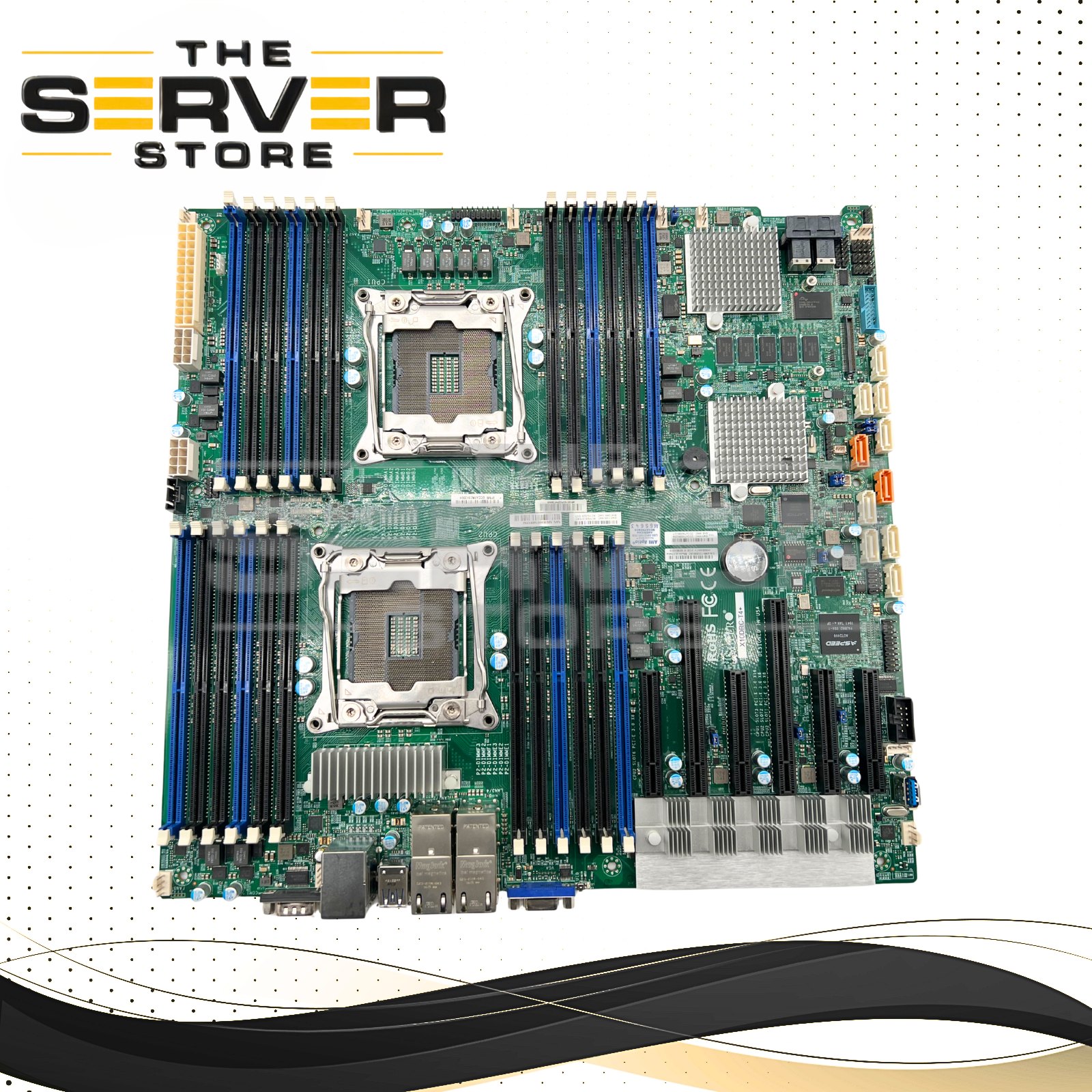

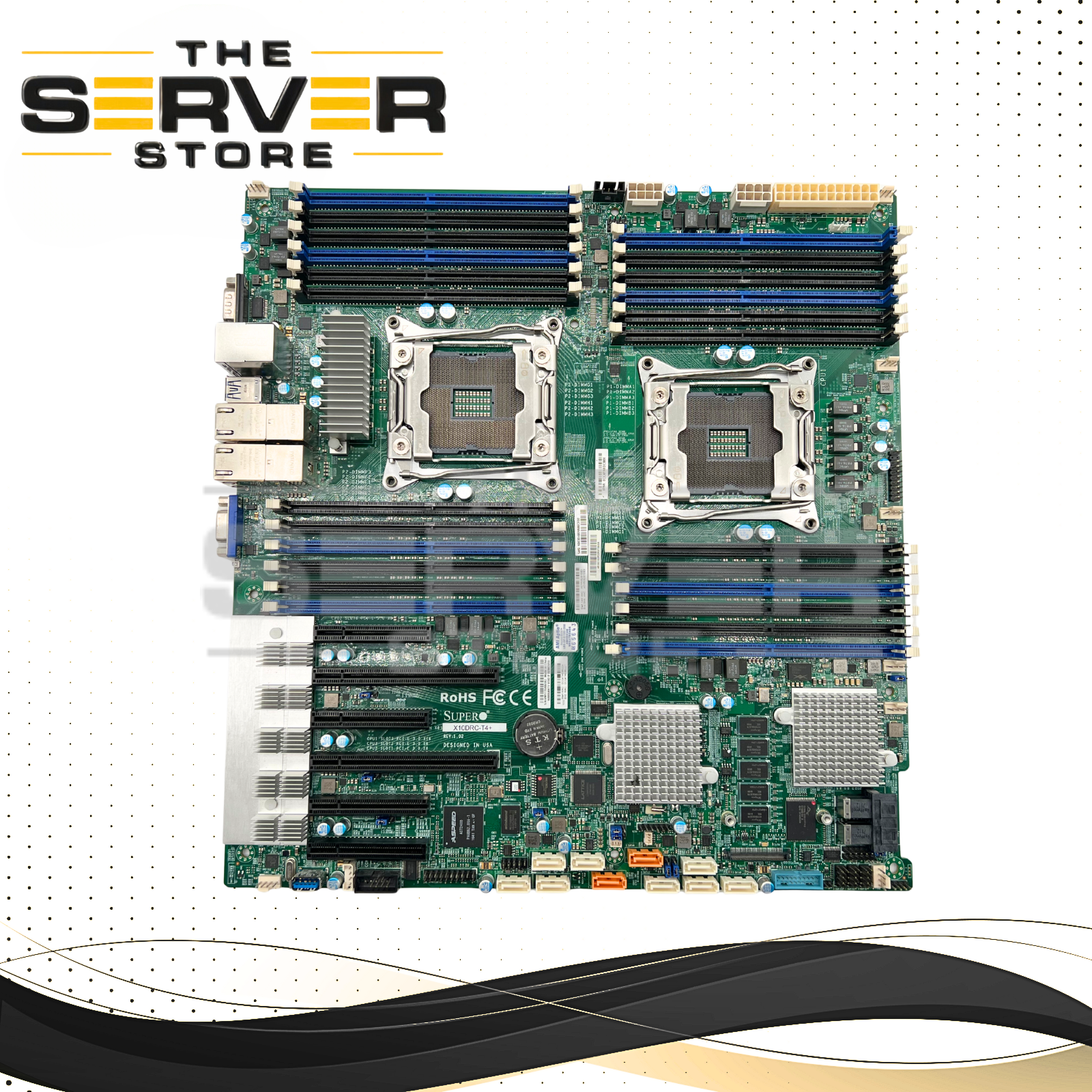

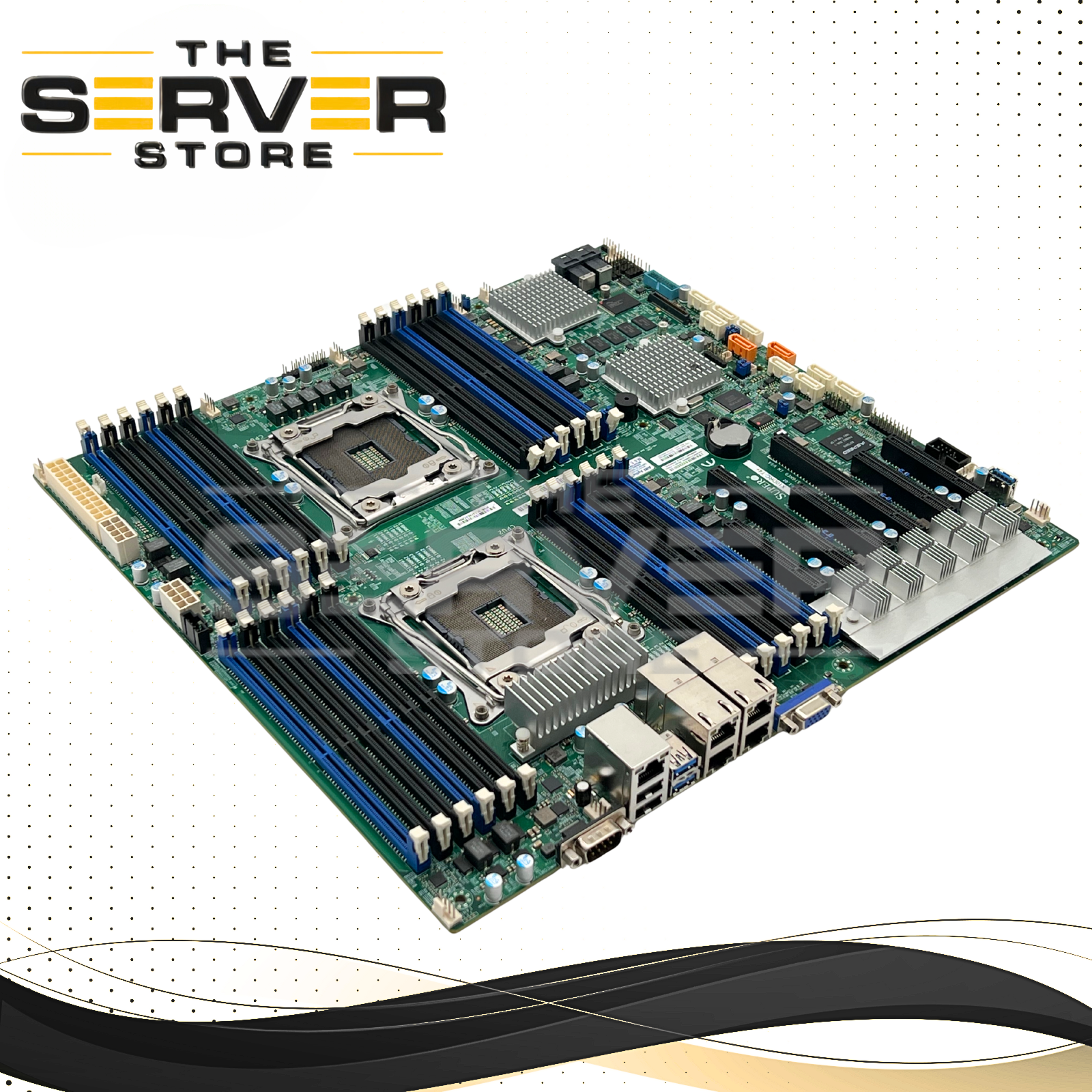

Supermicro X10DRC-T4+ Dual Socket LGA2011-3 EE-ATX Server Motherboard – Intel Xeon E5-2600 v4/v3 Support

The Supermicro X10DRC-T4+ is a high-performance dual-socket server motherboard engineered for demanding enterprise, virtualization, and data-center workloads. Supporting the Intel Xeon E5-2600 v3 and v4 processor families, this board delivers exceptional scalability, strong storage capabilities, and powerful 10GbE networking—making it ideal for cloud computing, virtualization clusters, HPC applications, and high-IO enterprise environments.

Built on the Intel C612 chipset and equipped with advanced server-grade features such as integrated IPMI 2.0 remote management, SAS3 (12Gbps) RAID capabilities, and massive DDR4 memory potential, the X10DRC-T4+ provides the flexibility and performance needed for modern workloads.

Key Specifications

• Form Factor: Enhanced Extended ATX (EE-ATX), 13.68" x 13" (34.75cm x 33.02cm)

• CPU Support: Dual Socket R3 (LGA 2011-3)

• Compatible Processors: Intel Xeon E5-2600 v3 & v4 series (up to 22 cores, 145W)

• Chipset: Intel C612

• Memory Support:

  • 24 DIMM slots

  • Up to 3TB ECC DDR4 with 3DS LRDIMM

  • Up to 768GB ECC RDIMM

  • Supports DDR4 speeds up to 2400MHz

• Expansion Slots:

  • 2 × PCIe 3.0 x16

  • 3 × PCIe 3.0 x8

  • 1 × PCIe 2.0 x4 (in x8 slot)

• Storage Connectivity:

  • 10 × SATA3 6Gb/s (RAID 0,1,5,10 via chipset)

  • 8 × SAS3 12Gb/s via Broadcom 3108 controller (RAID 0,1,5,6,10,50,60)
