Overview

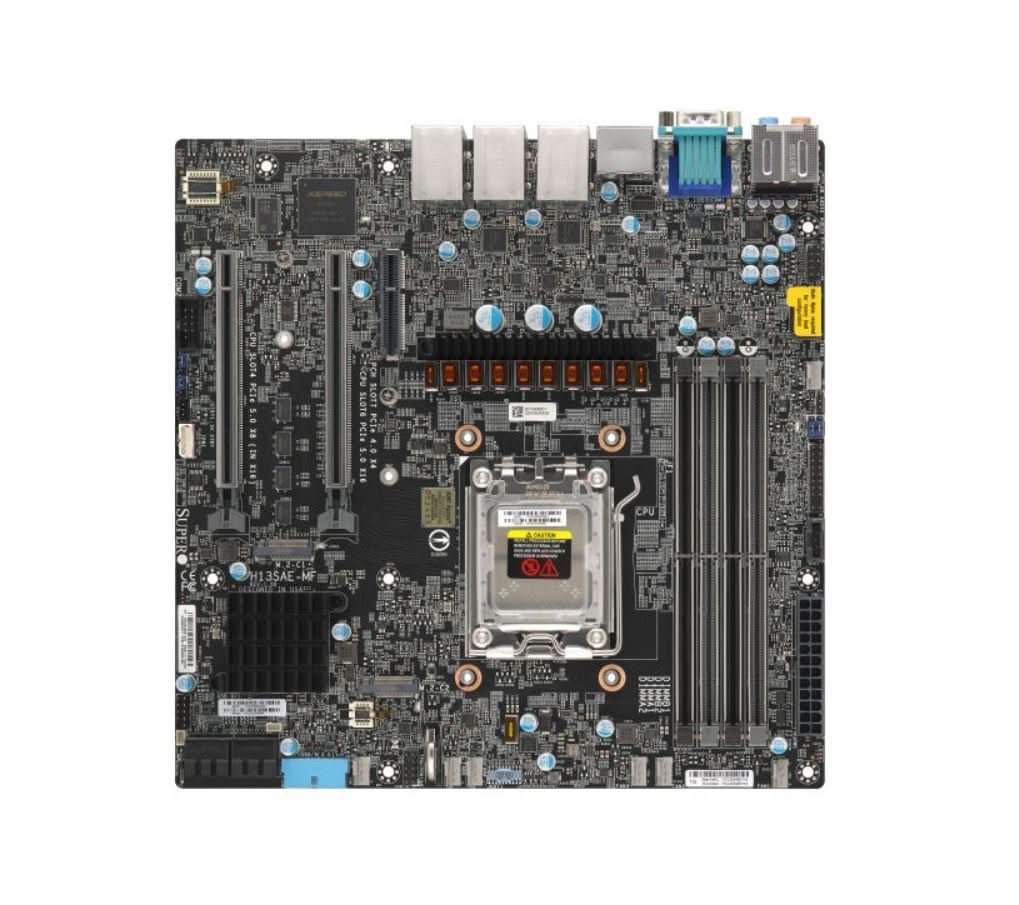

The Supermicro MBD-H13SAE-MF-B is a Micro-ATX motherboard for AMD LGA-1718 CPUs, including EPYC 4005/4004 and Ryzen 7000/9000/8700G series. It features PCIe 5.0 x16 for advanced connectivity and high-performance computing.
Specifications
Model Number:MBD-H13SAE-MF-B
Brand: Supermicro
Alt Part Number(s):MBD-H13SAE-MF-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model:MBD-H13SAE-MF-B
Form Factor: Micro-ATX
Dimension: 9.6" x 9.6" (24.384cm x 24.384cm)
CPU: Single AMD EPYC 4004/4005 or Ryzen 7000/9000 Series
Core Count: Up to 16C/32T
Memory: 4 DIMM Slots; Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Error Detection: ECC memory (corrects single-bit, detects double-bit errors)
Chipset: B650
SATA: 4 SATA (6Gbps); RAID 0/1/10 support
Network Controller: Dual Intel i210 1GbE LAN; Dedicated IPMI LAN with ASPEED AST2600 BMC
USB: 2 USB 3.2 Gen1 (Header); 3 USB 3.2 Gen2 Type-A (Rear); 3 USB 3.2 Gen2 Type-C (Rear); 1 USB 2.0 (Header)
Video: 1 HDMI 2; 1 DisplayPort; 2 VGA Type-C (Rear)
Serial: 1 COM port (Header)
Audio: ALC 888S HD Audio
TPM: TPM 2.0 Header
PCIe Slots: 1 PCIe 4.0 x4; 2 PCIe 5.0 x16
M.2 Slots: 2 M.2 PCIe 5.0 x4 (M-key 2280/22110)
BIOS: AMI 32MB SPI Flash; ACPI 6.4; SMBIOS 3.5+; UEFI 2.8
Voltage Monitoring: +12V, +3.3V, +5V, CPU and system temperature, thermal trip support
Fans: 7x 4-pin fan headers (up to 7 fans)
*
