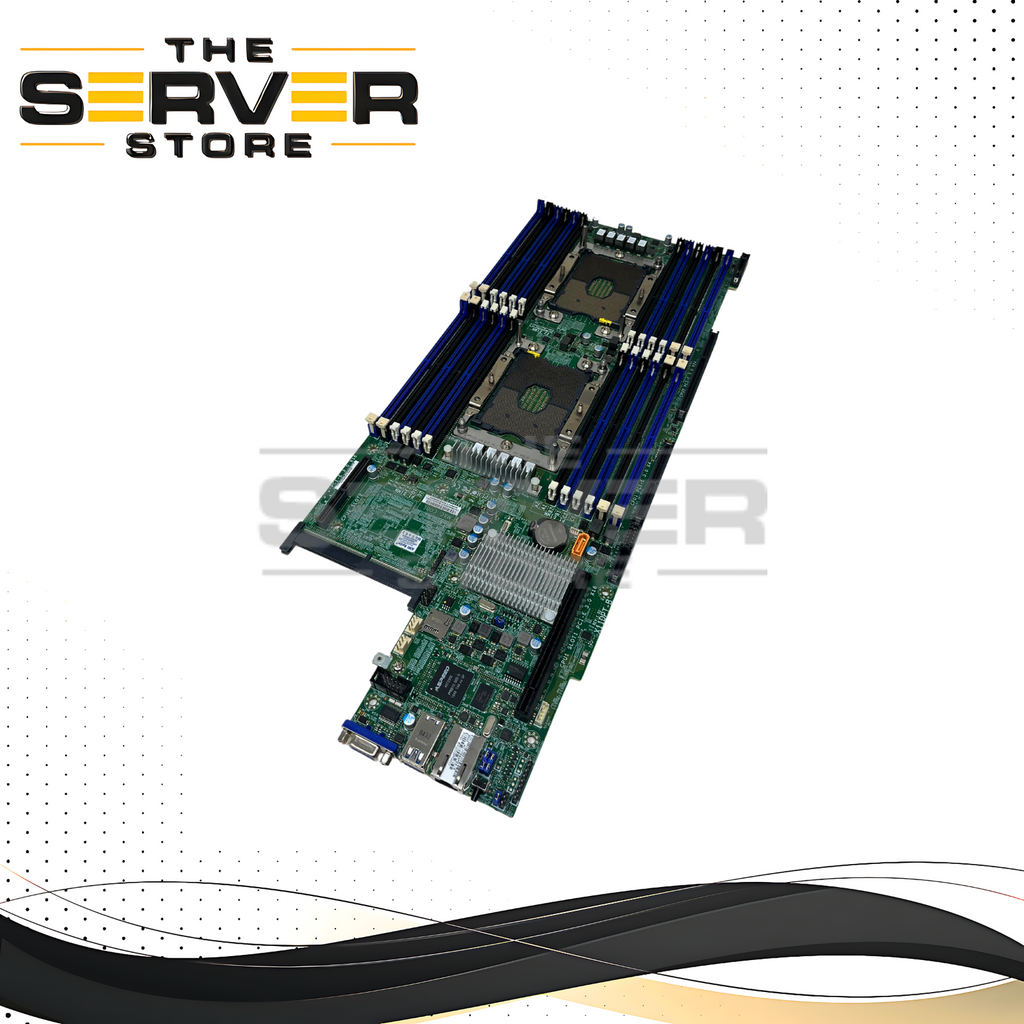

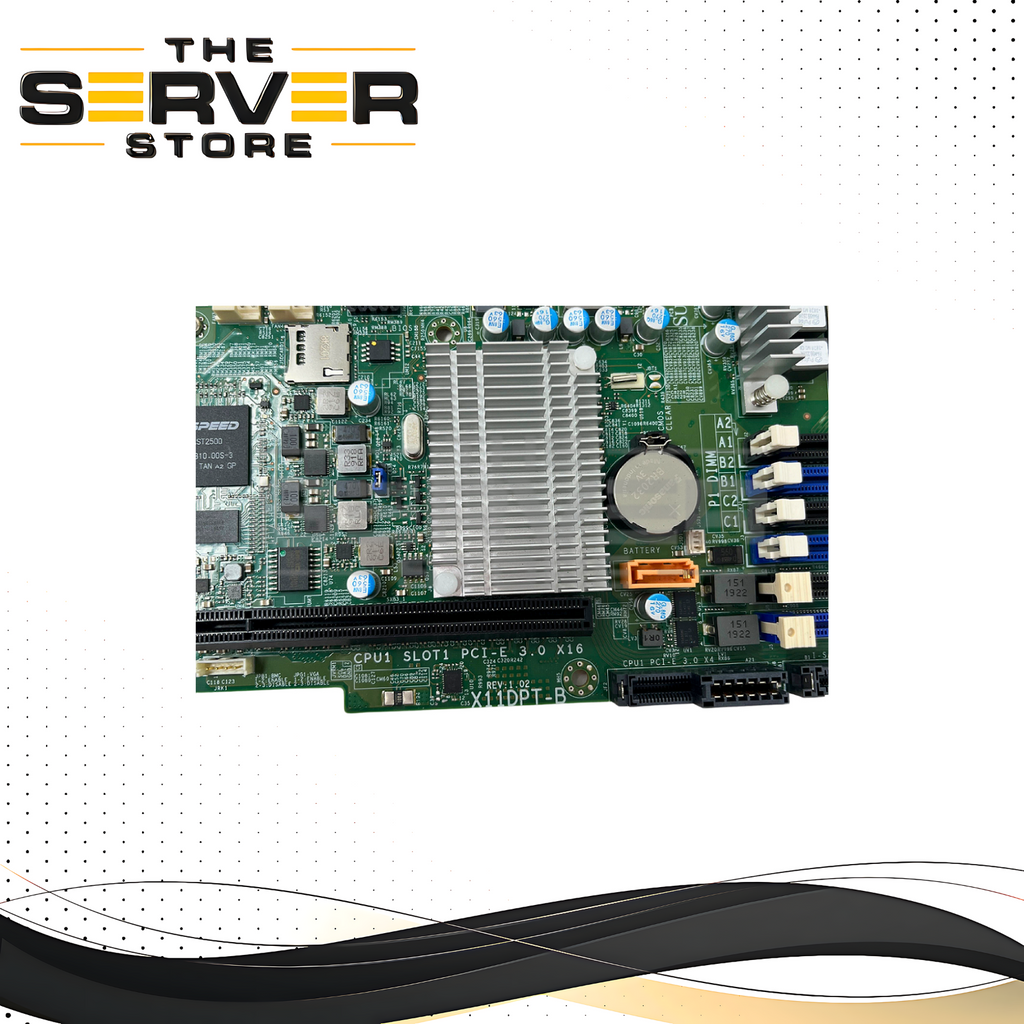

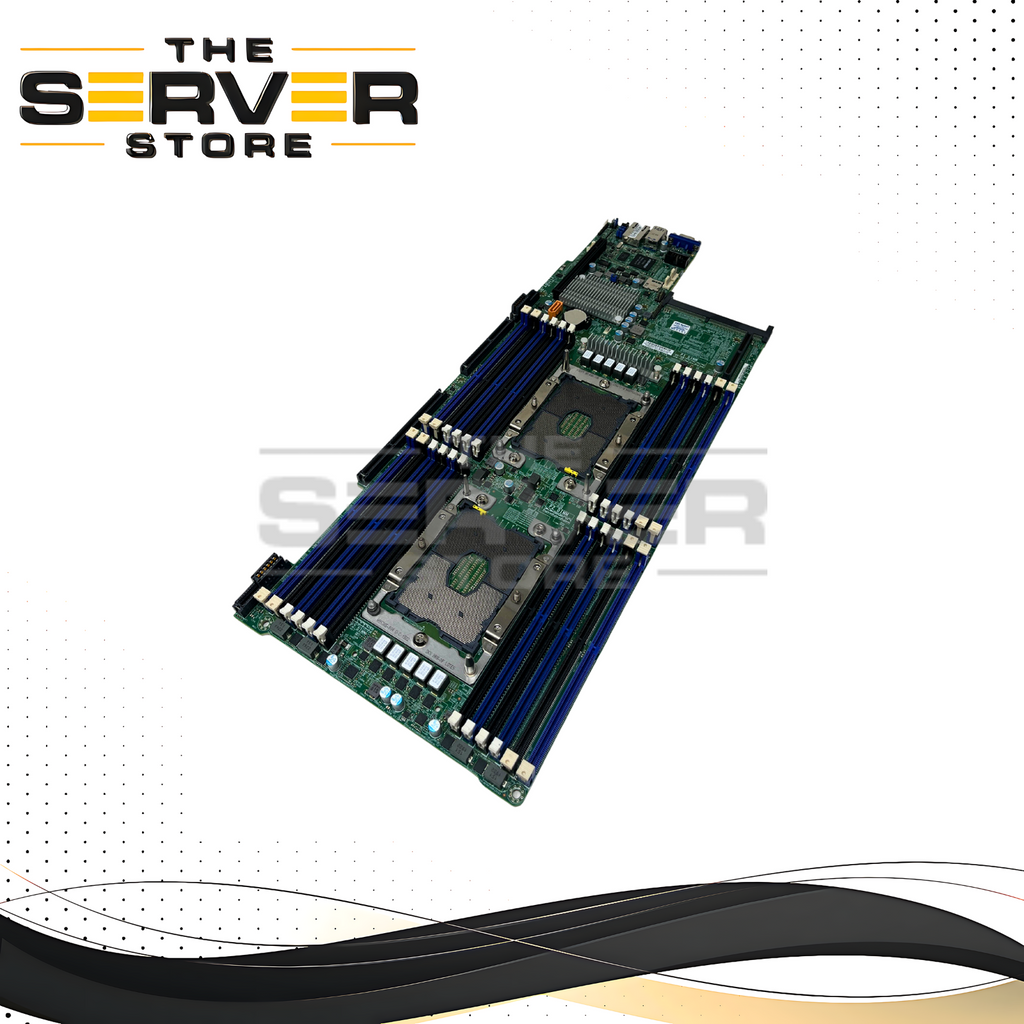

Supermicro Motherboard Dual Socket P LGA 3647 Rev 1.02 Key Features:
1) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s Intel® C621
2) Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz or 6TB DCPMM, DDR4-2666MHz, in 24 DIMM slots;
3) Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
4) 1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot, 1 PCIe 3.0 x24 Proprietary Slot (for Supermicro storage add-on card), _x000D_ 1 PCIe 3.0 x16 SIOM LAN Networking Slot, _x000D_ 1 PCIe 3.0 x8 Proprietary Slot (For M.2 add-on card)
5) Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
6) 1 VGA port
7) Single LAN with Networking options provided via SIOM module
