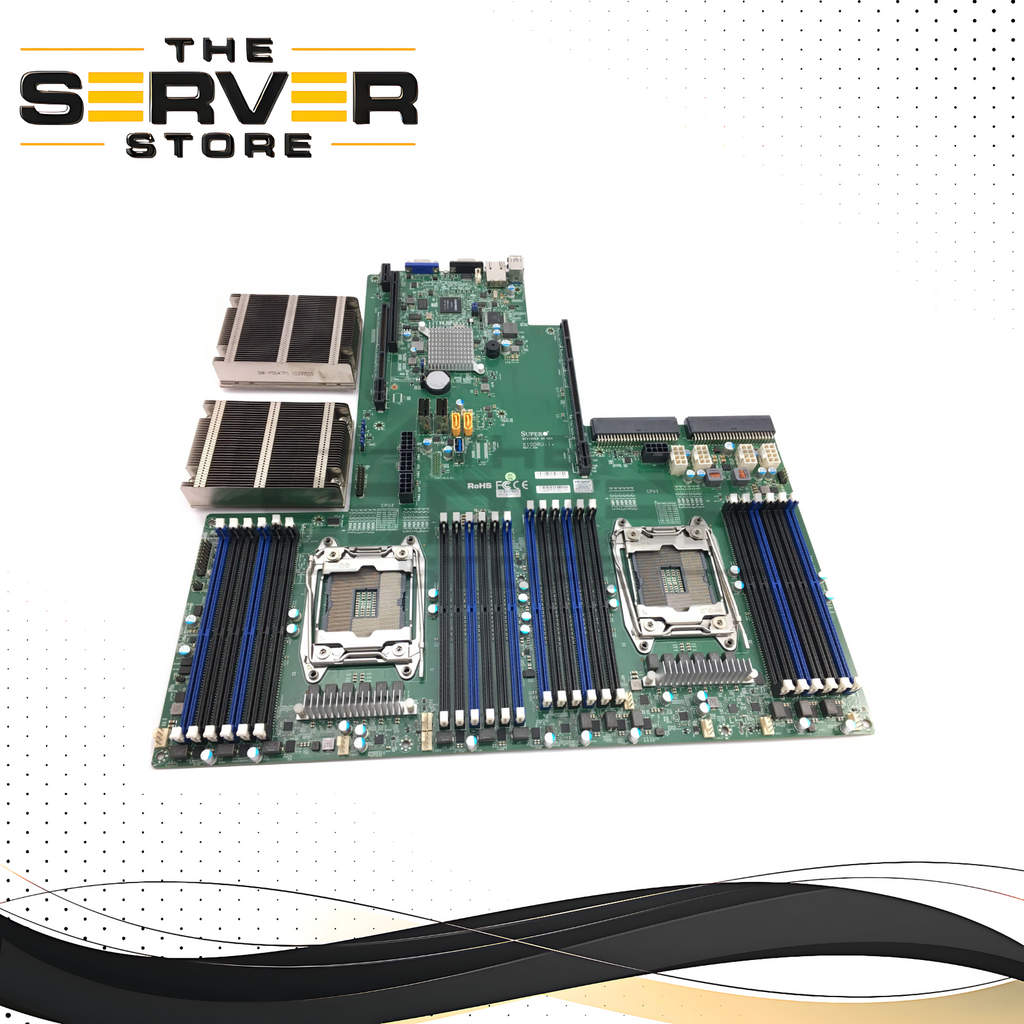

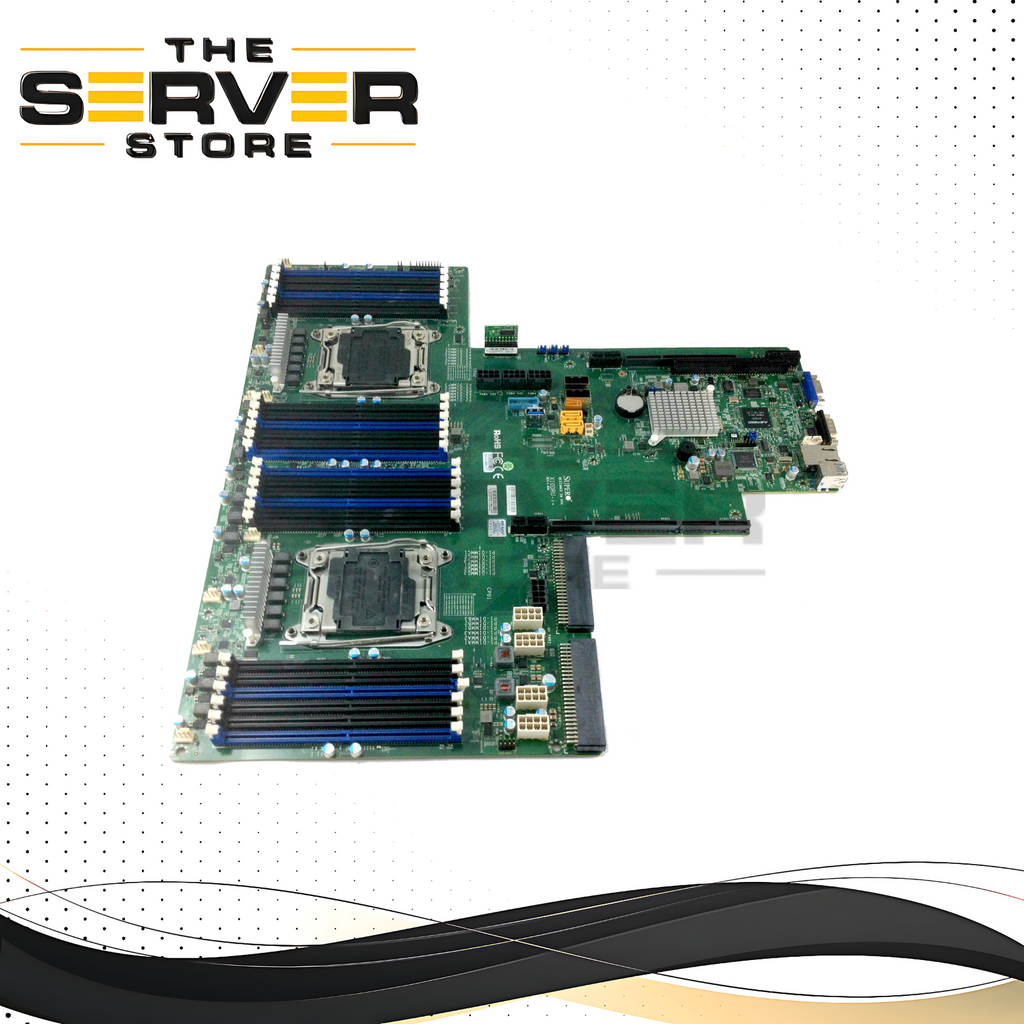

Supermicro Dual Intel Xeon E5-2600 v3/v4 LGA2011-3 DDR4 Server Motherboard X10DRU-I+ (MBD-X10DRU-i+)

The Supermicro X10DRU-I+ (MBD-X10DRU-i+) is a high-performance dual-socket server motherboard engineered for Supermicro Ultra and WIO (Wide I/O) platforms, delivering enterprise-grade reliability, scalability, and remote management. Built on the Intel C612 chipset, this motherboard supports Intel Xeon E5-2600 v3 and v4 processors, making it an ideal foundation for virtualization, database, cloud, and high-density compute workloads.

Designed for maximum memory capacity and I/O flexibility, the X10DRU-I+ features 24 DDR4 DIMM slots with support for up to 3TB of ECC 3DS LRDIMM memory, ensuring exceptional performance for memory-intensive applications. Its proprietary Ultra/WIO form factor enables advanced PCIe expansion through Supermicro riser solutions, optimizing bandwidth for storage, networking, and accelerator cards.

Key Features & Specifications

• Manufacturer: Supermicro

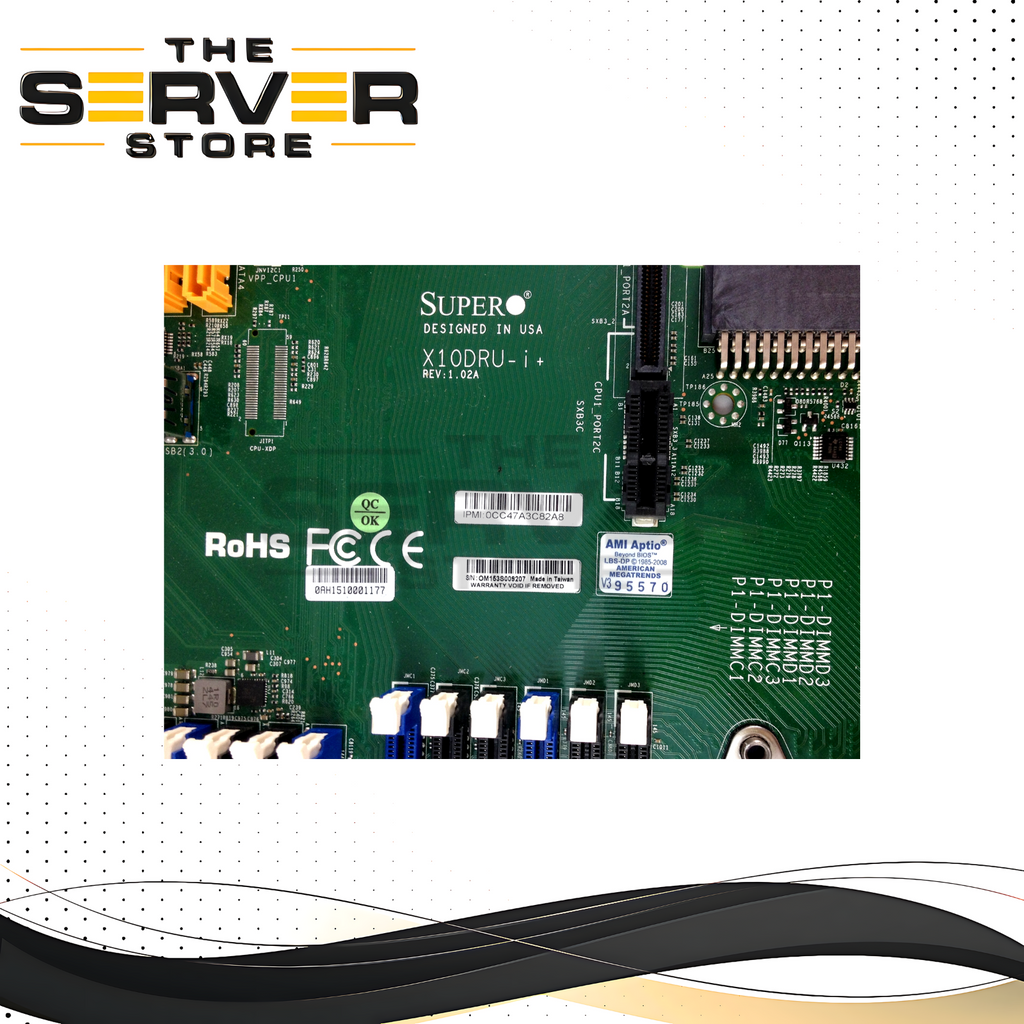

• Model: X10DRU-I+ ( X10DRU-I )

• Part Number: MBD-X10DRU-i+

• Socket Type: Dual Socket R3 (LGA 2011-3)

• CPU Support: Intel Xeon E5-2600 v3 / v4 family processors

• Chipset: Intel C612

Memory Support

• Memory Slots: 24 × DDR4 DIMM slots

• Maximum Capacity:

  • Up to 3TB ECC 3DS LRDIMM

  • Up to 768GB ECC RDIMM

• Memory Speed: Up to 2400 MHz

• ECC Support: Yes

Storage & RAID

• SATA Ports: 10 × SATA III (6Gb/s)

• RAID Support: RAID 0, 1, 5, 10 (Intel C612 controller)

Expansion & I/O

• PCIe Expansion (via proprietary risers):

  • Left Side: 1 × PCIe 3.0 x32

  • Right Side:

    • Ultra platform: 1 × PCIe 3.0 x40

    • WIO platform: 1 × PCIe 3.0 x8 (in x16 slot)

Networking & Management

• Management: Integrated IPMI 2.0 with dedicated LAN port

• Remote Access: KVM-over-LAN, remote monitoring, power control

Rear I/O

• USB: 3 × USB 3.0 (2 rear, 1 internal Type-A)

• Video: 1 × VGA

• Serial: 2 × COM ports

Physical Specifications

• Form Factor: Proprietary Supermicro Ultra / WIO

• Dimensions: Approx. 16.8" × 17"

Ideal Use Cases

• Enterprise virtualization platforms

• Cloud and private data centers

• Database and ERP systems

• High-density compute and storage servers

The Supermicro X10DRU-I+ motherboard delivers exceptional memory scalability, flexible PCIe expansion, and proven Xeon performance, making it a dependable choice for mission-critical server deployments and long-term infrastructure upgrades.
