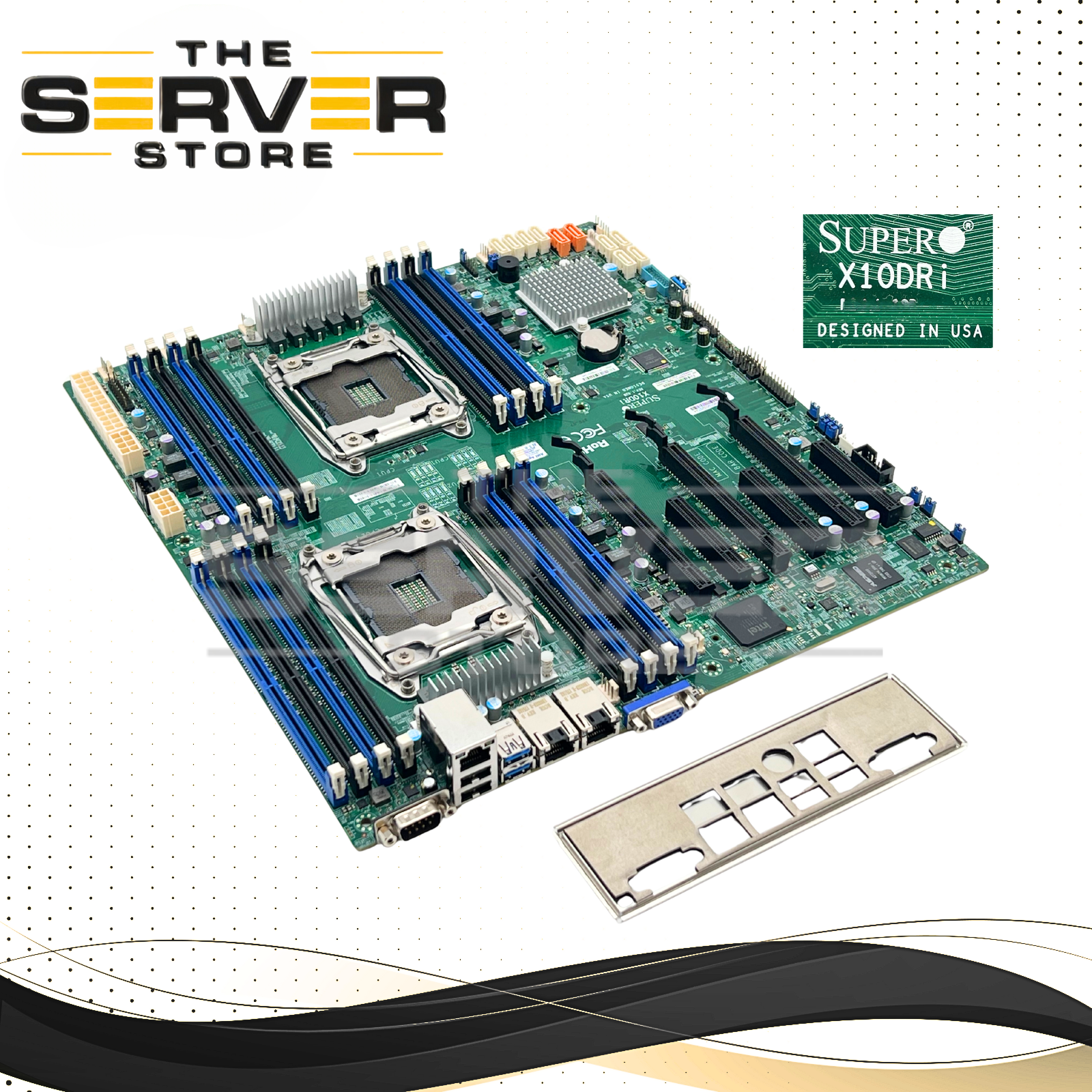

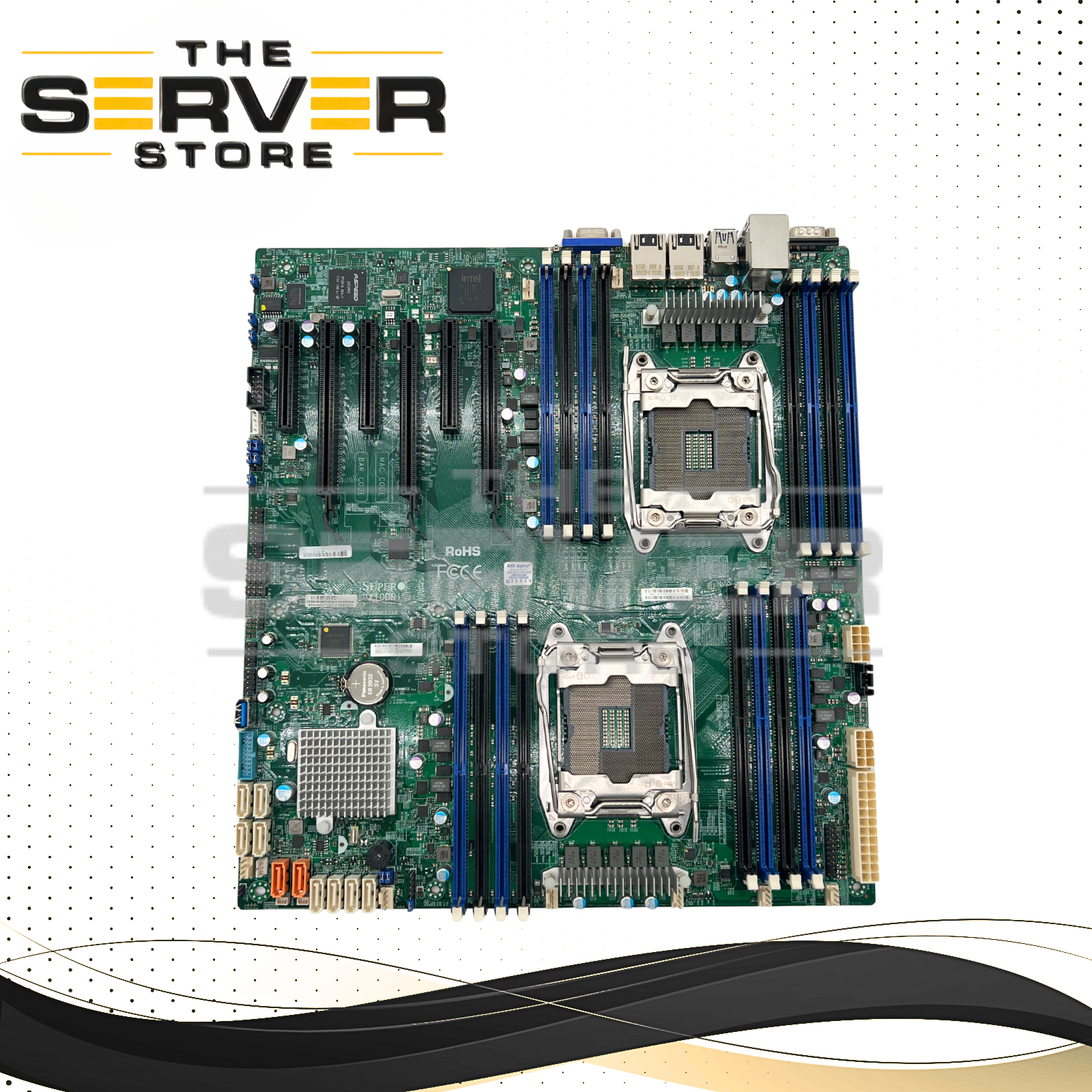

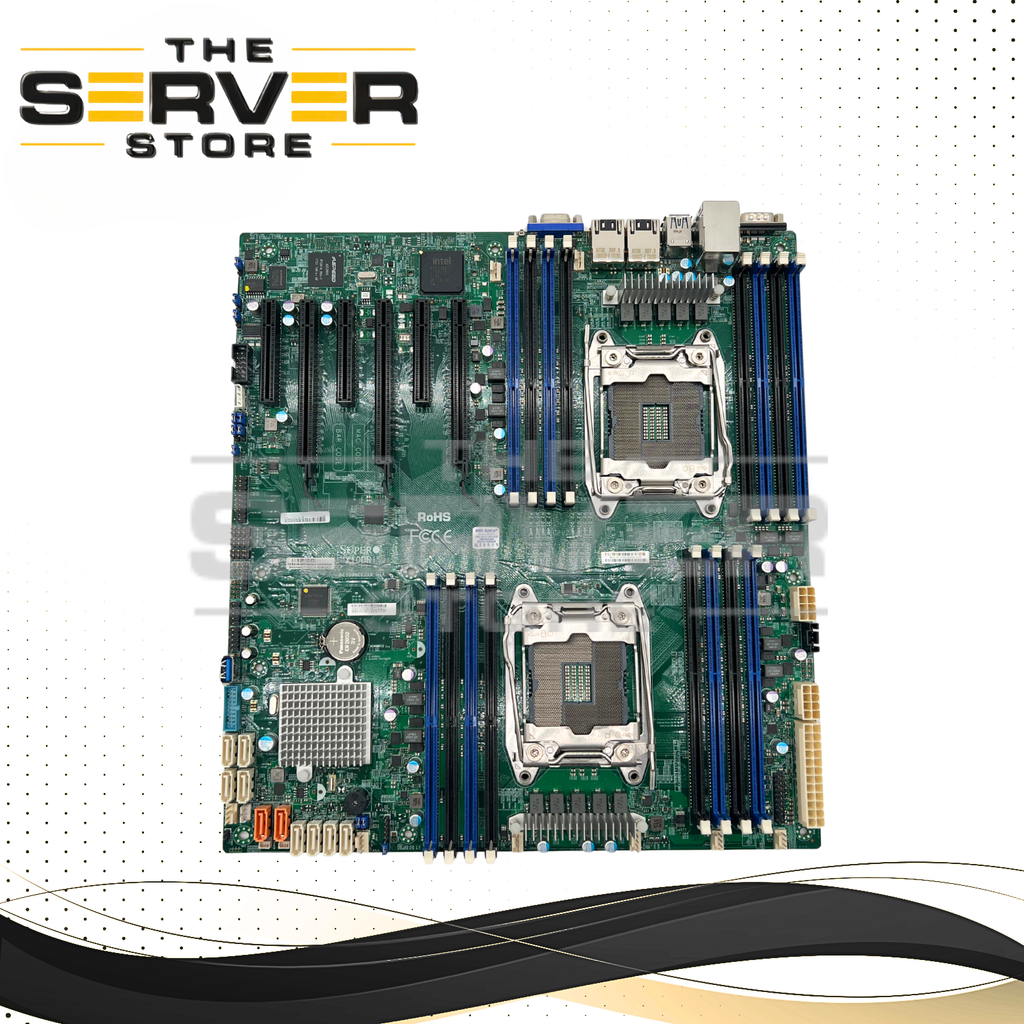

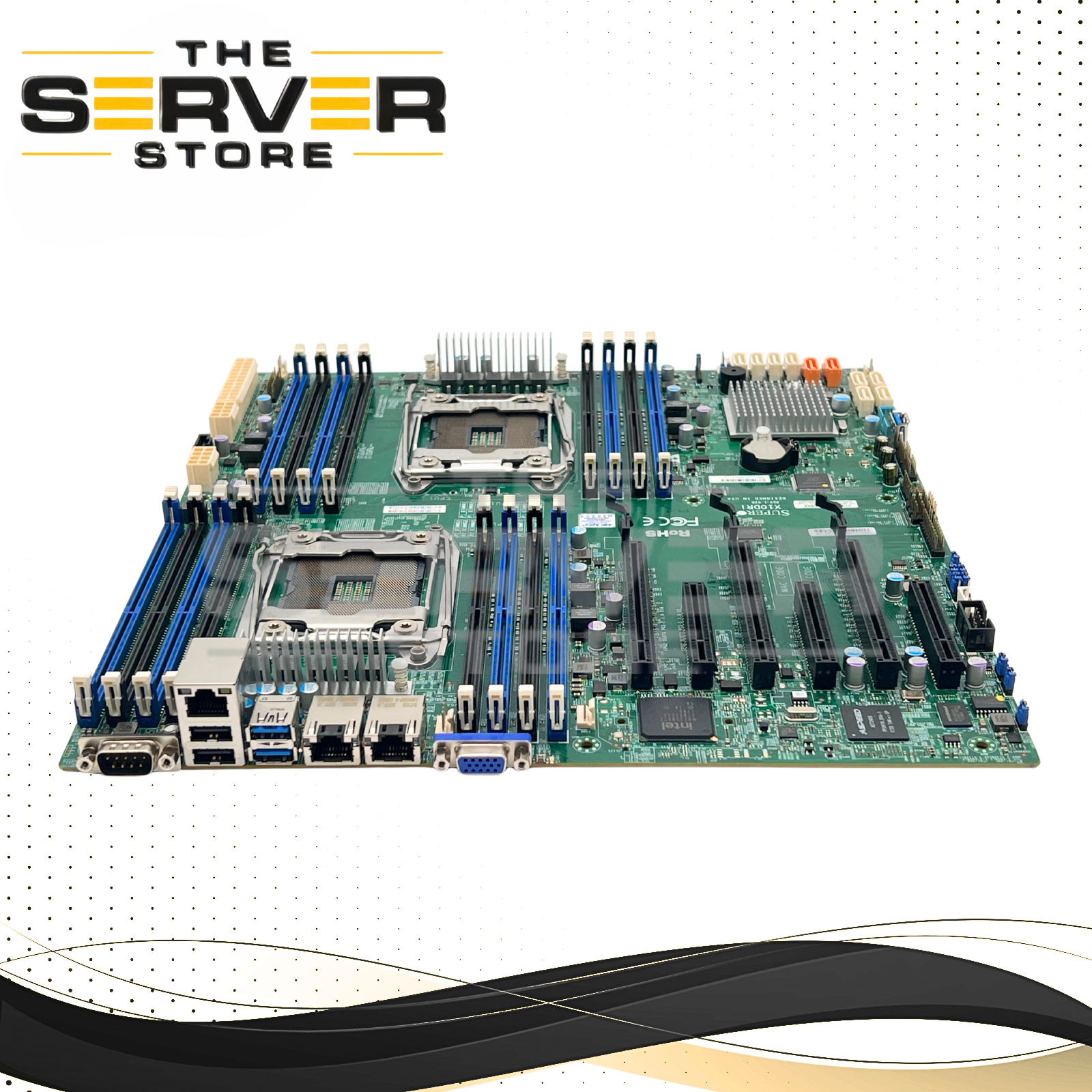

Supermicro X10DRi – Dual FCLGA-2011-3 (R3) DDR4 i350 NIC E-ATX Motherboard

The Supermicro X10DRi is a high-performance Extended ATX (E-ATX) server motherboard (sytem Board) designed for dual Intel Xeon E5-2600 v3/v4 processors using the FCLGA-2011-3 (Socket R3) platform. Built for enterprise workloads, virtualization, storage, and high-density computing, it offers extensive expansion, memory capacity, and networking capabilities.

---

Processor Support

• Socket Type: Dual FCLGA-2011-3 (Socket R3)

• Supported CPUs: Intel Xeon E5-2600 v3 & v4 series

• Optimized for multi-core, enterprise-grade workloads

---

Expansion Slots (PCIe)

The X10DRi includes six full-speed PCI Express 3.0 slots:

• 3 × PCI-E 3.0 x16

• 3 × PCI-E 3.0 x8

These slots support high-performance GPUs, RAID controllers, high-speed NICs, NVMe adapters, and other enterprise expansion cards.

---

Memory Support (DIMM)

• 16 × DDR4 DIMM slots total (8 per CPU)

• Supports:

  • ECC Registered (RDIMM)

  • Load-Reduced DIMM (LRDIMM)

• Maximum Capacity:

  • Up to 512GB RDIMM

  • Up to 2TB 3DS LRDIMM (with supported CPUs & BIOS)

• Supported Speeds:

  • 2400 / 2133 / 1866 / 1600 MHz
    (Dependent on CPU & memory configuration)

Designed for virtualization, databases, and memory-intensive applications.

---

Storage Connectivity

• 10 × SATA3 (6Gbps) ports

• RAID support: 0, 1, 5, 10

• Some configurations may support SAS3 or NVMe via add-in cards.

Ideal for high-capacity storage arrays and software-defined storage deployments.

---

Networking

• Dual Intel i350 Gigabit Ethernet LAN ports

• 1 × Dedicated IPMI LAN port

Remote management is handled via integrated IPMI for enterprise server administration.

---

Rear I/O & Internal Headers

USB Connectivity

• 2 × USB 3.0 (rear)

• 2 × USB 2.0 (rear)

• Internal headers:

  • 2 × USB 3.0 (header)

  • 4 × USB 2.0 (header)

  • 1 × Type-A USB 3.0

Video

• 1 × VGA port

• Powered by ASPEED AST2400 BMC controller (onboard graphics)

Serial

• 1 × Rear serial port

• 1 × Internal serial header

---

Physical Specifications

• Form Factor: Extended ATX (E-ATX)

• Designed for rackmount server chassis supporting E-ATX motherboards

---

Ideal Use Cases

• Virtualization hosts

• Enterprise application servers

• Database servers

• High-density storage systems

• Private cloud infrastructure
