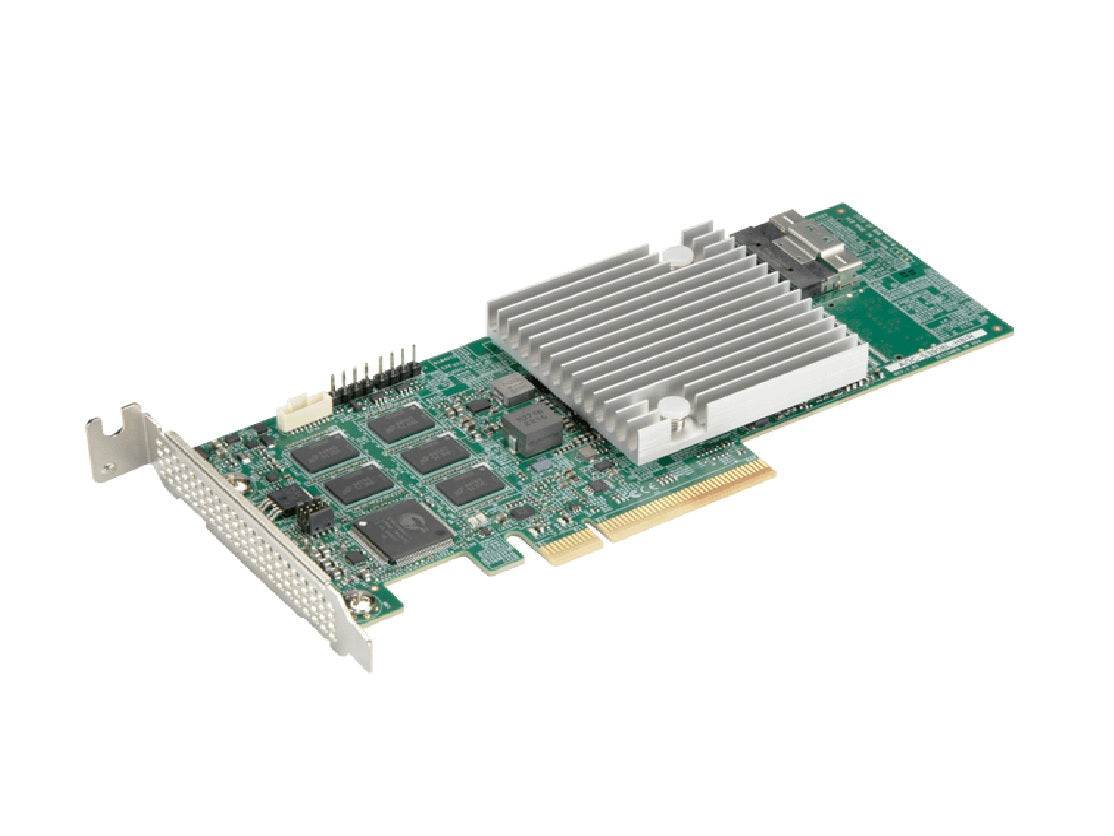

The Supermicro AOC-S3908L-H8IR-16DD-O is a low-profile internal RAID adapter card designed for enterprise-class server and storage systems. It features 8 internal ports with support for 12Gb/s SAS and 6Gb/s SATA drives, and uses a PCIe 4.0 interface for high-speed data transfer. This model is optimized for managing up to 16 drives with an expander.
Specifications
Model Number: AOC-S3908L-H8IR-16DD-O
Brand: Supermicro
Alt Part Number(s): AOC-S3908L-H8IR-16DD-O
Product Type: SAS Controller
Technical Description
Brand: Supermicro
Model Number: AOC-S3908L-H8IR-16DD-O
Total Number of SAS Ports: 8
Number of SAS Ports (Internal): 8
Maximum Data Transfer Rate: 12Gbit/s
Controller Type: 12Gb/s SAS
Controller Chip: Broadcom 3908L
Onboard Cache: 8GB DDR4 2666MHz
Interface: PCI Express 4.0
Power consumption: 14W
Raid levels: 0, 1, 5, 6, 10, 50, 60, and JBOD
Form Factor: Plug-in Card
