Description

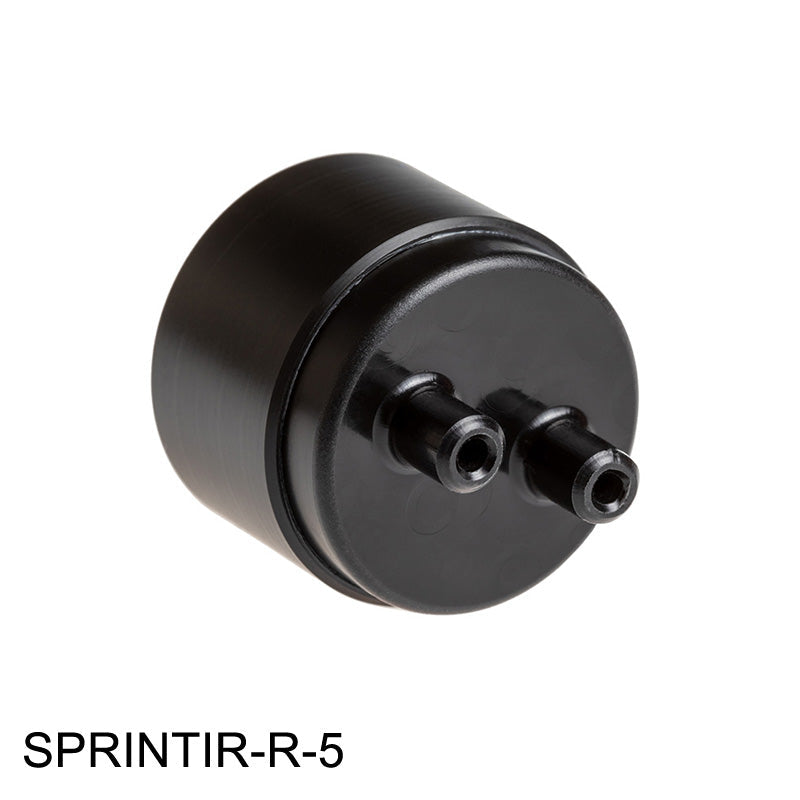

The SPRINTIR-R-5 5% CO2 Sensor (formerly known as the GC-0031) is the fastest commercial CO2 sensor on the market.
Capable of measuring up to 5% CO2 levels up to 50 times a second, this sensor is designed for applications where high speed between measurements and fast response time are most important
This sensor is fitted with a standard flow-through adaptor so the CO2 gas can be passed over the optical sensor at high speed using an optional micro-pump.
The SprintIR®-R-5 uses patented NDIR solid-state LED optical technology enabling the sensor to respond to rapidly changing CO2 without compromising performance.
Features
- High-Speed Sensing and Fast Response (50hz)
- Digital (UART) output
- Ideal for Healthcare and Food Packaging applications
Models
- SPRINTIR-R-5 – for integration into high-volume OEM products

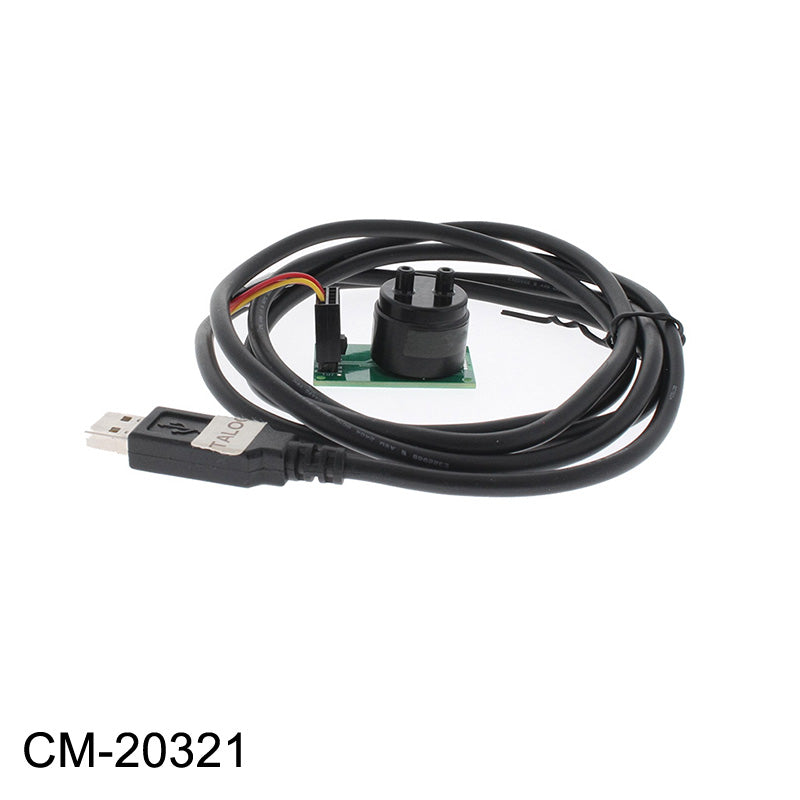

- CM-20321 - SprintIR-R-5 5% CO2 Sensor Development Kit
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order sensors on this page, then order the Devkit here.
Specifications
- CO2 Sensing Method: Patented solid-state NDIR absorption
- Sample Method: Flow through adapter
- Measurement Range: 0-5%,
- Accuracy: ±70 ppm +/- 5% of reading
-
Resolution: 10 ppm
- Measurement noise: < 10% of reading with no digital filtering
- Pressure Dependence: 0.15% of reading per mbar in normal atmospheric conditions
- Operating pressure range: 500mbar to 2 bar with flow through adapter
- Response Time: Flow Rate Dependent
- Update rate: 50 Hz
- Sensor Life Expectancy: > 15 years
Electrical
- Power Input: 3.25 to 5.5V. (3.3V recommended)
- Peak Current: 100mA
- Average Current: <15mA
- Power Consumption: 35 mW
- Communication: UART
- Connector: 4 x 0.5mm sq pins
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Documents
Quality Certificate - ISO9001 (pdf) GSS Guide for Sample Draw Pumps (pdf)
Accessories:
- Gas Sensor Development Kit (CM-200)- designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
- CM-0032-6S/R - Custom USB cable enables communication to GasLab Software for Sensor Board and Development Kit.
- Micro-Pump Kit includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
- Nafion Tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
- Micro Gas Sampling Pumps provides a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
