Description

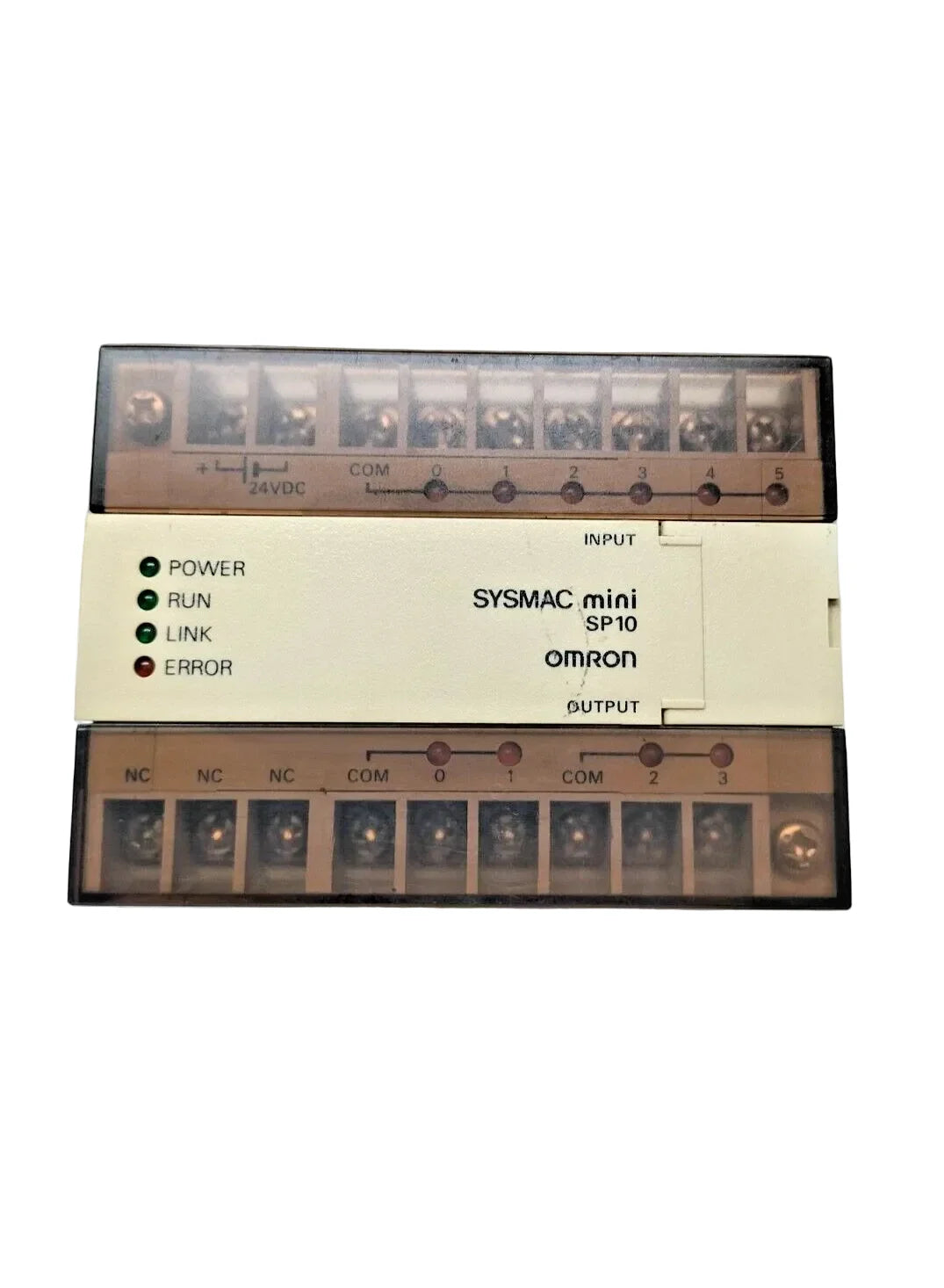

The Omron SP10-DR-D is a compact programmable controller from the SYSMAC Mini series designed for small-scale industrial automation systems. It operates from a 24 VDC power source with approximately 10 W consumption and provides digital inputs with relay outputs rated up to 2 A. The controller is intended for discrete machine control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
SP10-DR-D |
| Subcategory |
PLC Module/Rack |
| Series |
SYSMAC Mini SP10 |
| Product Type |
Programmable Controller CPU |
| Power Supply |
24 VDC (Class 2) |
| Power Consumption |
Approx. 10 W |
| Input Voltage |
24 VDC |
| Input Current |
7 mA |
| Output Type |
Relay |
| Output Rating |
24 VDC / 250 VAC, 2 A max |
| Country of Manufacture |
Japan |
| Weight |
0.50 lbs |
Information About SP10-DR-D
The SP10-DR-D belongs to the Omron SYSMAC Mini SP10 series of programmable controllers. It is powered by a 24 VDC Class 2 source and accepts 24 VDC input signals with a nominal input current of 7 mA. The unit provides relay outputs capable of switching 24 VDC or 250 VAC loads up to 2 A maximum. Designed for compact control panels, it integrates CPU functionality and I/O control within a single housing for standalone automation tasks.
Key Features:
-
SYSMAC Mini Platform: Part of Omron SP10 programmable controller series.
-
24 VDC Power Supply: Operates from a 24 VDC Class 2 source, approximately 10 W.
-
24 VDC Digital Inputs: Designed for standard DC sensor interfacing.
-
Relay Outputs: Rated up to 24 VDC / 250 VAC, 2 A maximum.
-
Integrated CPU Module: Executes programmable logic control functions.
-
Compact Controller Design: Suitable for small machine automation systems.
-
Industrial Construction: Designed for panel installation in control cabinets.
The SP10-DR-D delivers the reliability and precision required for compact programmable control in industrial automation environments.
