[shortdesc]1U rackmount, 16x1GbE, 3x10G SFP+, SonicOS 7, 3.0 Gbps threat prevention, 800 Mbps DPI SSL[/shortdesc]

[properties]

Brand	SonicWall
Model	NSa 2700
SKU	02-SSC-4324
Product Type	Next-generation firewall
Series	Gen 7 NSa Series
Form Factor	1U Rack Mountable
Port Count	16x1GbE, 3x10G SFP+
Storage	64GB M.2
Dimensions	43 x 32.5 x 4.5 cm / 16.9 x 12.8 x 1.8 in
Weight	4.0 kg / 8.8 lbs
Input Voltage	100-240 VAC, 50-60 Hz

[/properties]

[specifications]

Operating System	SonicOS 7
Interfaces	16x1GbE, 3x10G SFP+, 2 USB 3.0, 1 Console, 1 Mgmt. port
Expansion	Storage Expansion Slot (Up to 256GB)
Firewall Throughput	5.5 Gbps
Threat Prevention	3.0 Gbps
IPS Throughput	3.4 Gbps
Anti-malware Throughput	2.9 Gbps
TLS/SSL DPI Throughput	800 Mbps
IPSec VPN Throughput	2.10 Gbps
Maximum Connections	1,500,000 SPI / 500,000 DPI
Site-to-site VPN Tunnels	2,000
Power Supply	60W
Power Consumption	21.5 W
Operating Temperature	32°-105° F / 0°-40° C
Storage Temperature	-40° to 158° F / -40° to 70° C
Humidity	5-95% non-condensing

[/specifications]

[accesories]

Optional Power Supply

Optional Redundant Power Adapter

[/accesories]

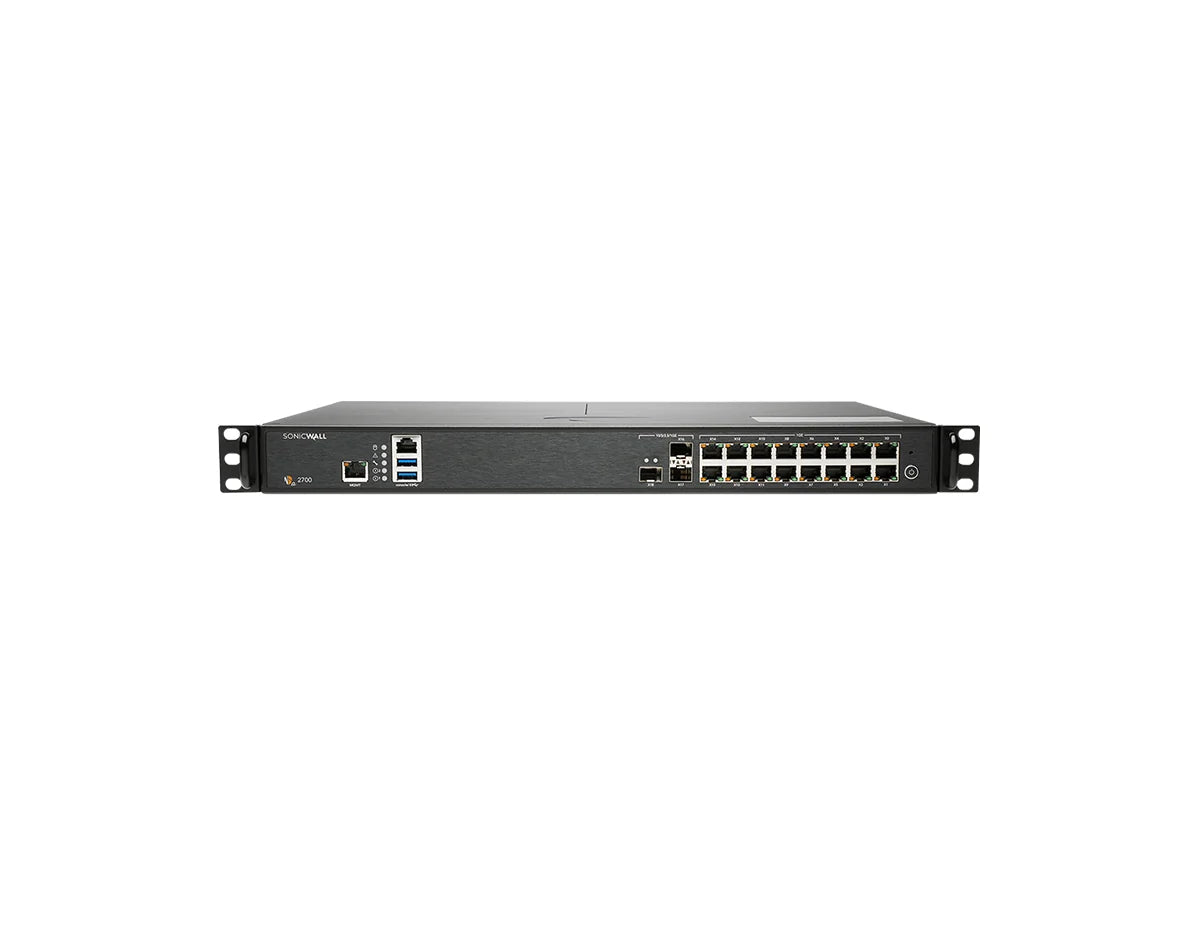

SonicWall NSa 2700 Firewall for Secure Enterprise Edge

The SonicWall NSa 2700 is a next-generation firewall appliance built for medium and distributed enterprise environments. It combines high port density, multi-gigabit inspection performance, secure SD-WAN capability, and SonicOS 7 management for edge security deployments.

Key Benefits and Features

• Supports SonicOS 7 for centralized management, policy configuration, zero-touch deployment, and simplified workflows.
• Provides 16 x 1GbE interfaces and 3 x 10G SFP+ interfaces for flexible network segmentation and uplink design.
• Delivers 3.0 Gbps threat prevention throughput with Gateway Anti-Virus, Anti-Spyware, IPS, and Application Control enabled.
• Supports TLS 1.3 inspection, DPI SSL, secure SD-WAN, dynamic routing, and high-speed VPN functionality.
• Integrates with SonicWall Switches, SonicWave access points, and Capture Advanced Threat Protection.

Ideal Use Cases

• Enterprise internet edge firewall deployment
• Distributed branch office security
• Secure SD-WAN and direct internet access
• Network segmentation with 1GbE and 10G connectivity
• VPN access for site-to-site and remote users

Technical Specifications

• Brand: SonicWall
• SKU: 02-SSC-4324
• Product Type: Network security firewall appliance
• Operating System: SonicOS 7
• Interfaces: 16 x 1GbE, 3 x 10G SFP+, 2 x USB 3.0, 1 console, 1 management port
• Firewall Inspection Throughput: 5.5 Gbps
• Threat Prevention Throughput: 3.0 Gbps
• IPS Throughput: 3.4 Gbps
• Anti-Malware Inspection Throughput: 2.9 Gbps
• TLS/SSL DPI Throughput: 800 Mbps

Deploy SonicWall NSa 2700 at Your Network Edge

Choose the SonicWall NSa 2700 firewall appliance for secure perimeter protection, encrypted traffic inspection, VPN connectivity, and SD-WAN support across enterprise and branch environments.
