Description

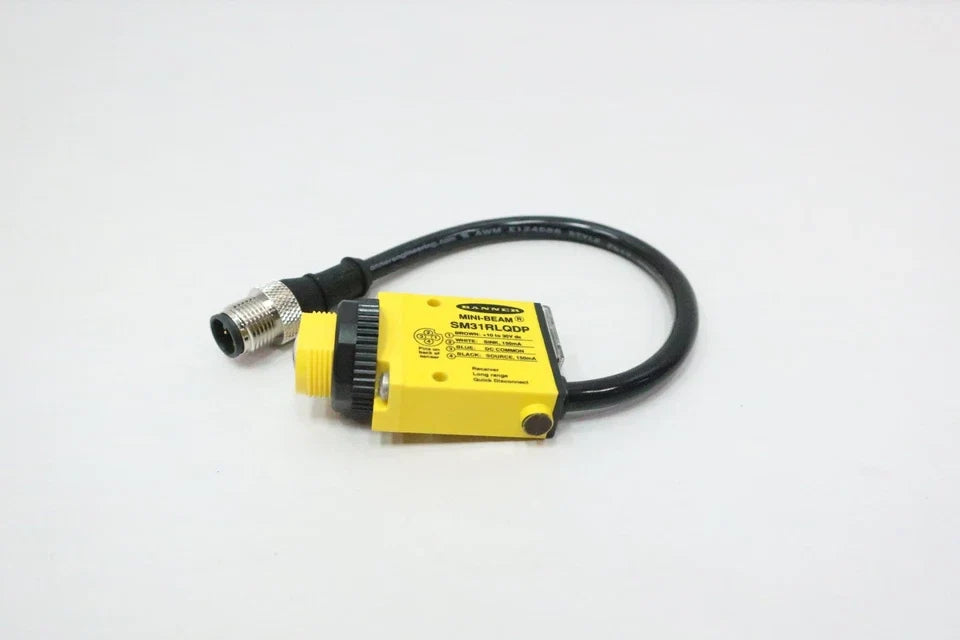

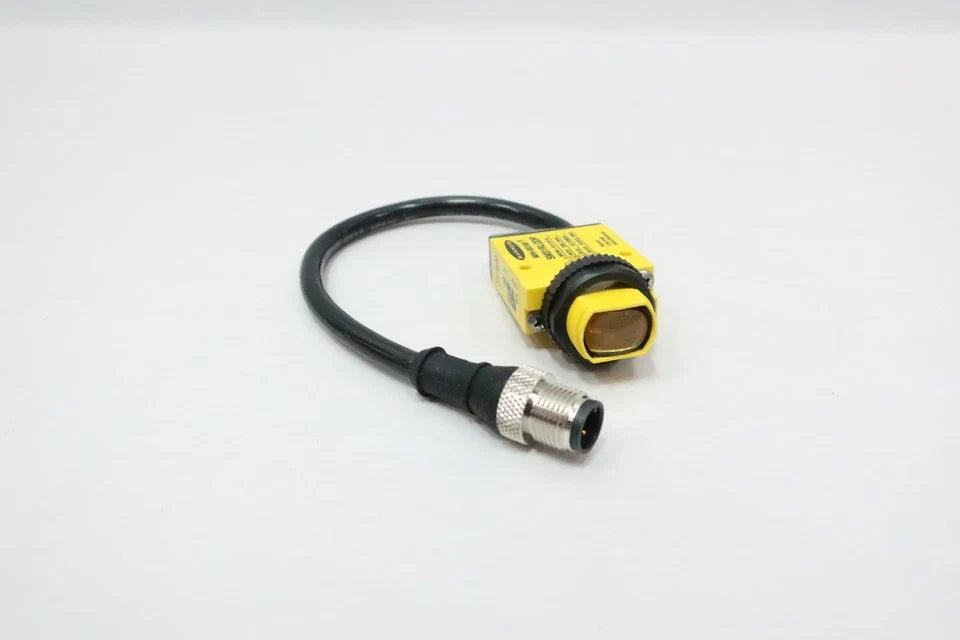

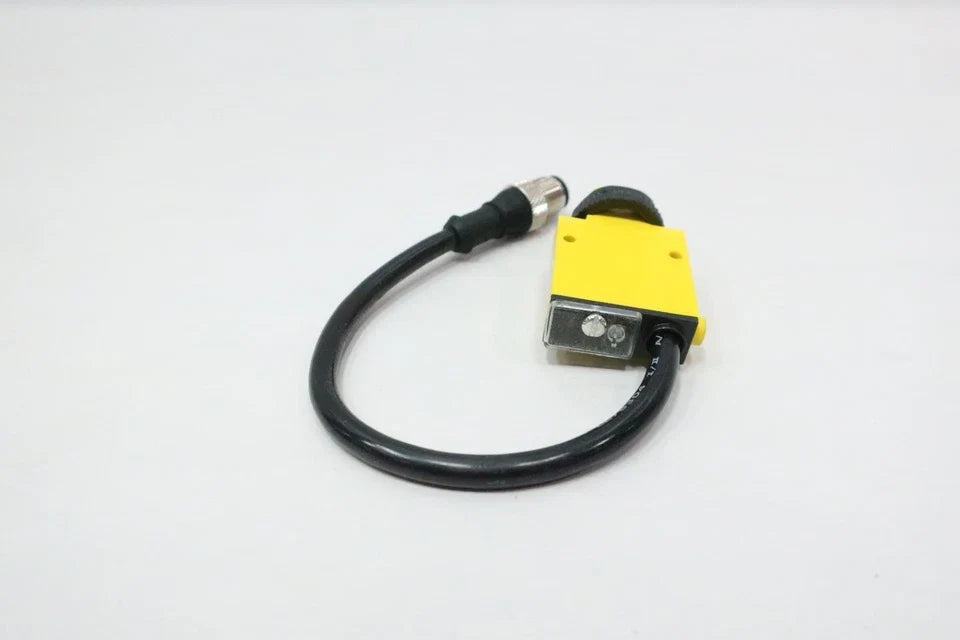

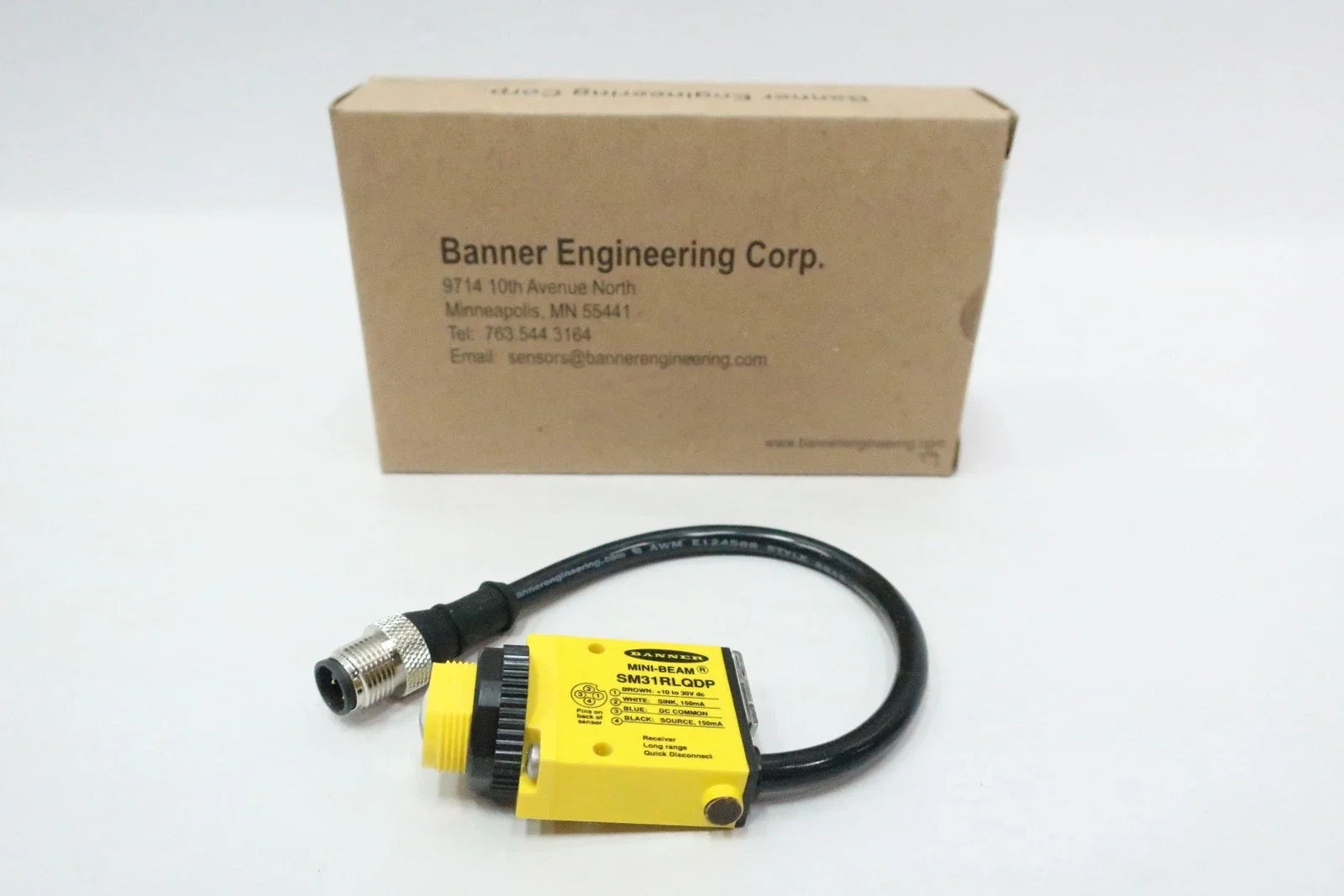

The Banner Engineering SM31RLQDP is an opposed-mode photoelectric receiver designed for long-range object detection up to 30 meters. It operates on a 10–30 VDC supply and provides bipolar NPN and PNP discrete outputs. The unit features an infrared LED sensing system and a 150 mm M12 pigtail quick-disconnect connection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
SM31RLQDP |
| Subcategory |
Photoelectric |
| Series |
MINI-BEAM |
| Sensing Mode |
Opposed (Receiver) |
| Maximum Sensing Distance |
30 m |
| Light Source |
Infrared LED |
| Supply Voltage |
10–30 VDC |
| Output Type |
Bipolar (NPN & PNP) |
| Response Time |
1 ms |
| Turn-On Delay |
100 ms |
| Connection Type |
150 mm M12 Pigtail QD (4-Pin) |
| Housing Style |
Rectangular with M18 Thread |
| Housing Material |
Thermoplastic |
| Lens Material |
Acrylic |
| Environmental Rating |
IP67 |
| Operating Temperature |
-20°C to +70°C |
| Relative Humidity |
90% at 50°C |
| Weight |
1.86 oz |
Information About SM31RLQDP
The SM31RLQDP is part of the Banner Engineering MINI-BEAM® Series and functions specifically as a through-beam receiver. It must be paired with a compatible MINI-BEAM emitter to complete an opposed sensing system. The sensor is housed in a compact rectangular thermoplastic enclosure with IP67 environmental protection and an 18 mm threaded mounting design. Integrated LED indicators provide power and output status, while the DC-powered electronics support light/dark operate configuration.
Key Features:
-
Opposed-mode receiver: Designed for use with compatible MINI-BEAM emitters.
-
30 m sensing range: Supports long-distance through-beam detection.
-
10–30 VDC supply: Standard industrial DC operation.
-
Bipolar outputs: Provides both NPN and PNP discrete outputs.
-
1 ms response time: Suitable for fast detection applications.
-
IP67 rated housing: Protection against dust and moisture.
-
150 mm M12 pigtail QD: Cable with integrated 4-pin connector.
The SM31RLQDP delivers the reliability and precision required for long-range industrial through-beam photoelectric sensing applications.
