Description

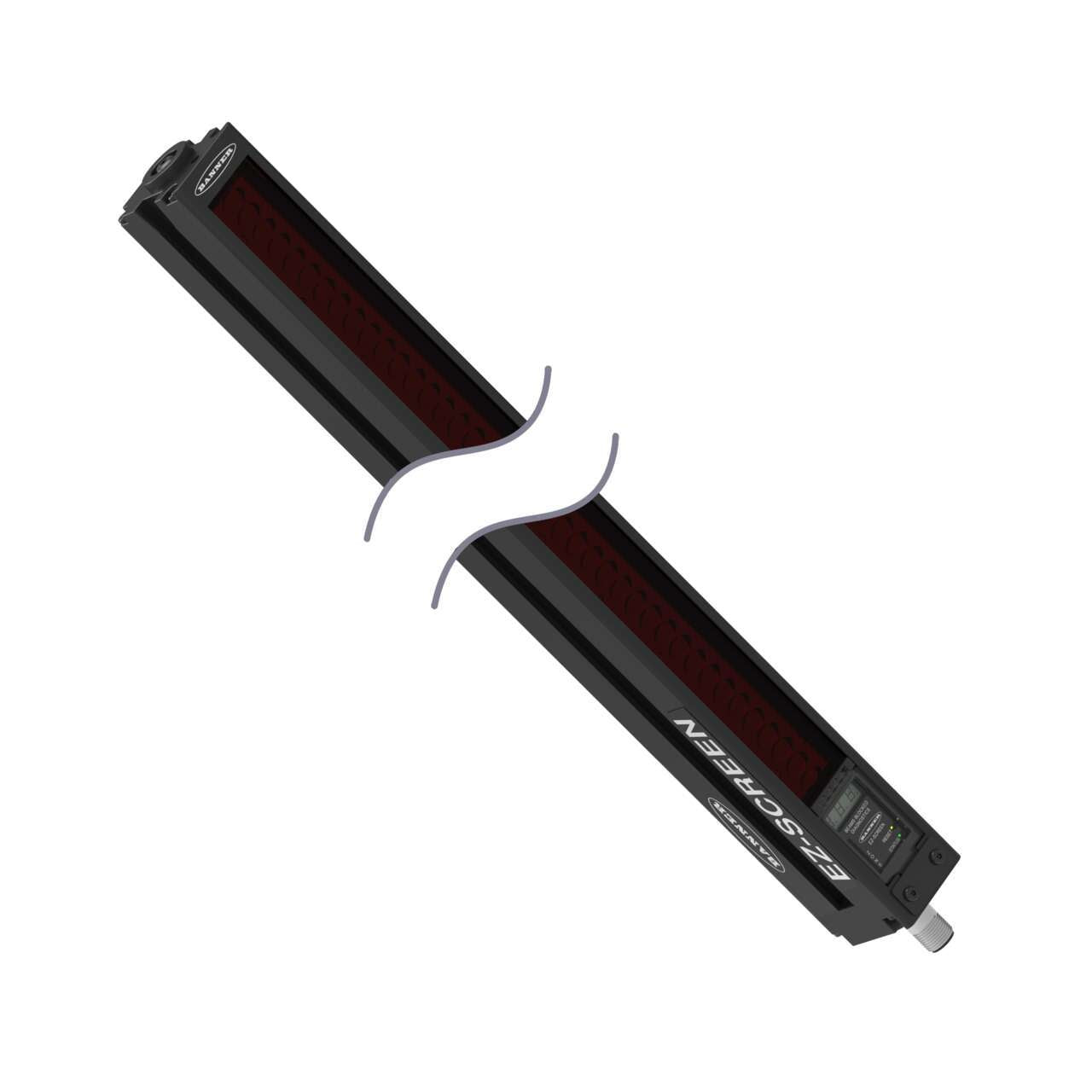

The Banner Engineering SLSR14-150Q8 is a Type 4 safety light curtain receiver designed for machine guarding and personnel protection applications. It provides 14 mm resolution with a defined protective height of 150 mm and operates over distances up to 6 meters. The device is intended for integration into industrial safety systems requiring SIL3 and PL e performance levels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
SLSR14-150Q8 |
| Subcategory |
Light Curtain |
| System Type |
Receiver |
| Safety Type |
Type 4 |
| Resolution |
14 mm |
| Protective Height |
150 mm |
| Operating Range |
0.1 to 6 m |
| Response Time |
11 ms |
| Supply Voltage |
24 VDC |
| Supply Current |
275 mA max. |
| Output Type |
OSSD, 24 VDC |
| Connector Type |
8-pin M12 |
| Ingress Protection |
IP65 |
| Operating Temperature |
0°C to +55°C |
| Housing Material |
Aluminum |
| Weight |
2.90 lbs |
Information About SLSR14-150Q8
The SLSR14-150Q8 is a receiver unit from Banner Engineering’s EZ-SCREEN Type 4 safety light curtain family. It is designed to work with compatible emitters to create a protective sensing field for hazardous machine areas. The unit features a rugged aluminum housing with IP65 protection for industrial environments. It supports selectable trip or latch outputs and integrates monitoring functions required for certified safety applications.
Key Features:
-
Type 4 safety rating: Complies with IEC 61496-2 requirements
-
14 mm resolution: Suitable for finger protection applications
-
150 mm protective height: Covers compact hazardous zones
-
Operating range up to 6 m: Flexible installation options
-
Fast response time: 11 ms reaction for safety shutdowns
-
IP65 enclosure: Protection against dust and water ingress
-
SIL3 and PL e rated: Meets high-level machine safety standards
The SLSR14-150Q8 delivers the reliability and precision required for industrial machine safety light curtain systems.
