Description

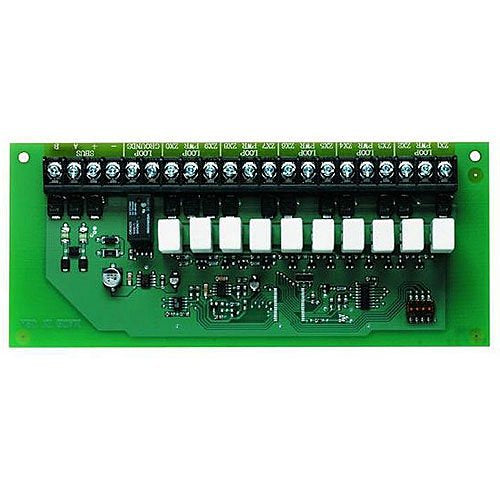

The Silent Knight SK5217 is a 10-zone expander module designed for Honeywell fire alarm systems. It provides the SK-5208 control panel with ten additional Class B (style B) zones, allowing for flexible system expansion. The module supports remote installation and ensures reliable, supervised zone monitoring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Silent Knight by Honeywell |
| Category |
Fire Control Panels |
| Part Number |
SK5217 |
| Subcategory |
Control Panel Modules |
| Zone Capacity |
10 additional Class B zones |
| Compatibility |
SK-5208 Fire Alarm Control Panel |
| Remote Mount Distance |
Up to 1,500 ft |
| Connection Type |
4-wire SBUS |
| Supervision |
Yes |
| UL Listed |
Yes |
| Dimensions |
Standard module size (refer to SK-5208 cabinet) |
| Mounting Options |
SK-5208 cabinet or SK-2190 accessory cabinet |
| Weight |
Approx. 0.5 lb |
Information About 51198651-100
The SK5217 is part of the Silent Knight expansion series and is compatible with the SK-5208 fire alarm control panel. It can be installed directly in the SK-5208 cabinet or remotely up to 1,500 feet away in an SK-2190 accessory cabinet. The module communicates with the control panel via a 4-wire SBUS connection, simplifying installation and reducing wiring complexity. UL listed for safety and reliability, it provides a professional solution for extending fire alarm coverage.
Key Features:
- 10 Additional Zones: Expands SK-5208 with ten Class B (style B) zones.
- Remote Installation: Can be mounted up to 1,500 feet from the control panel.
- 4-Wire SBUS Connection: Easy, supervised connection to SK-5208 panel.
- Supervised Zones: Continuous monitoring ensures reliable performance.
- UL Listed: Meets industry safety and compliance standards.
- Flexible Mounting: Can be installed in SK-5208 cabinet or SK-2190 accessory cabinet.
The SK5217 delivers the reliability and precision required for scalable fire alarm system expansion.
