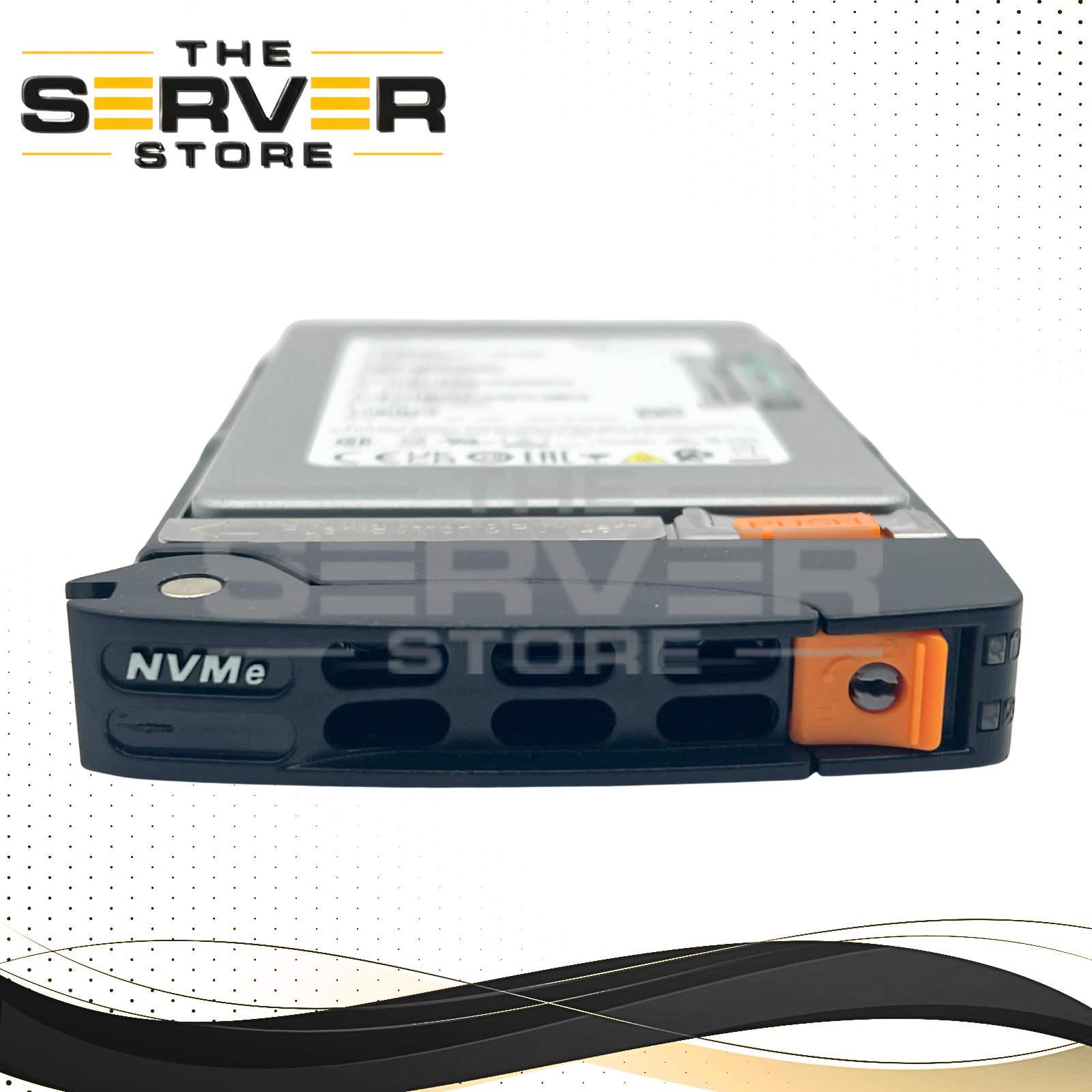

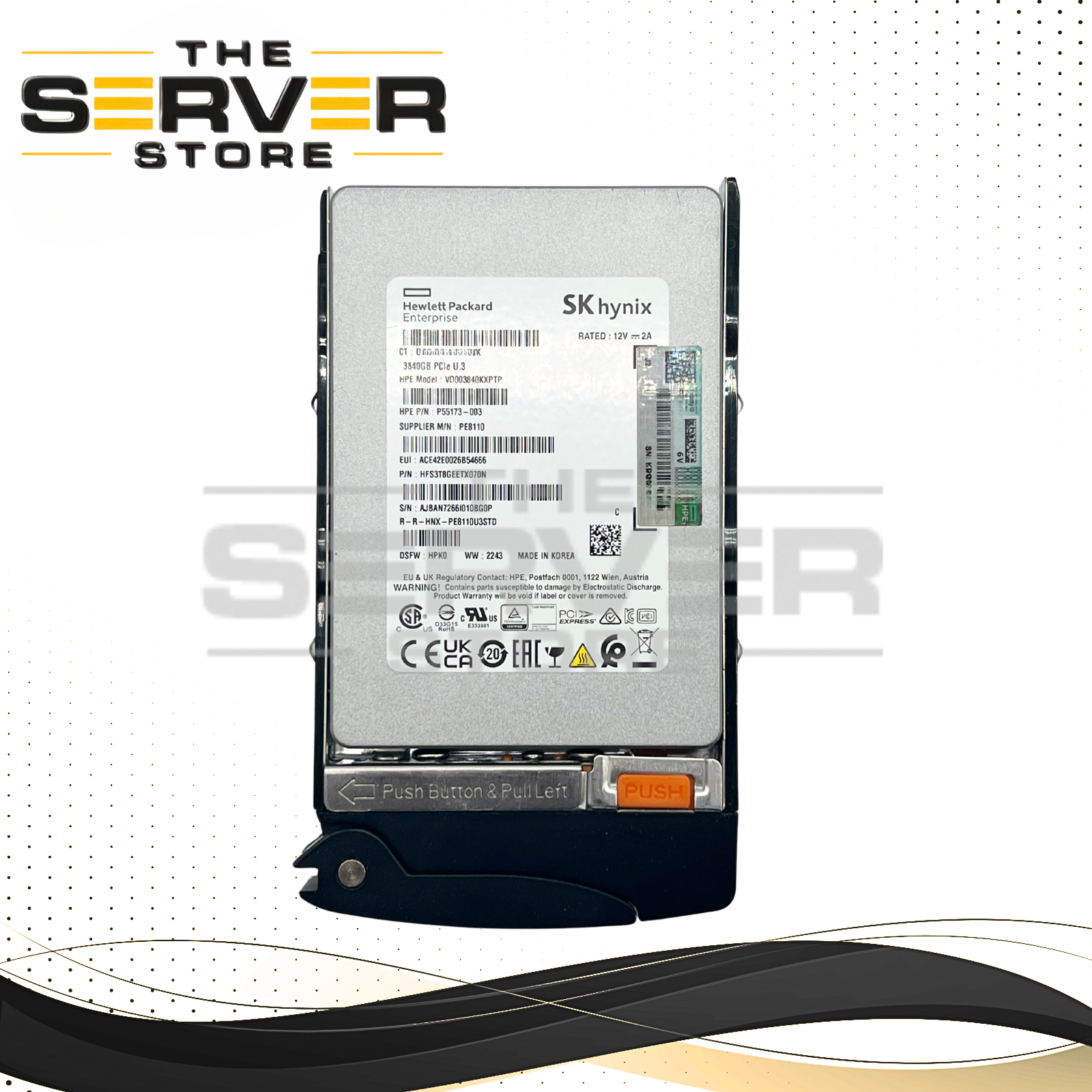

SK Hynix 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" 15mm SSD PE8110 Series for Supermicro Server with Tray
Note: This tray may vary depending on our inventory.
The SK Hynix PE8110 Series 3.84TB NVMe SSD is an enterprise-grade read-intensive storage solution designed for high-performance data center environments. Built on PCIe Gen4 x4 with NVMe 1.4 and a U.3 tri-mode interface, it delivers high throughput, low latency, and strong endurance for virtualization, cloud workloads, and read-heavy applications. It is compatible with Supermicro servers equipped with NVMe U.3/U.2 backplanes and the appropriate drive tray.
Other Related Part Numbers
HFS3T8GEETX070N, PE8110
Technical Specifications
-
Capacity: 3.84TB
-
Series: PE8110
-
Interface: PCIe Gen4.0 x4, NVMe 1.4
-
Form Factor: 2.5" SFF (15mm)
-
Connector: U.3 (backward compatible with U.2)
-
NAND Flash: 128-layer 3D TLC NAND
-
Workload Type: Read Intensive (RI), ~1 DWPD
Performance
-
Sequential Read: Up to ~6,200–6,500 MB/s
-
Sequential Write: Up to ~3,800–4,000 MB/s
-
Random Read: Up to ~1,000,000+ IOPS
-
Random Write: Up to ~150,000–180,000 IOPS
Reliability & Features
-
Endurance: ~1 DWPD
-
MTBF: Up to ~2.5 million hours
-
Power Loss Protection: Yes
-
End-to-End Data Protection: Yes
-
Encryption: AES 256-bit hardware encryption
Supermicro Server Compatibility
Supermicro H13 / X13 Series (PCIe Gen4 / Gen5 – Full Performance):
SYS-121H-TNR, SYS-221H-TN24R, SYS-621C-TN12R, AS-2125HS-TNR, AS-1115HS-TNR
Supermicro X12 / H12 Series (PCIe Gen4 – Full Performance):
SYS-120H-TNR, SYS-220H-TN24R, SYS-120C-TN10R, AS-1124US-TNR, AS-2024US-TNR
Supermicro X11 / H11 Series (PCIe Gen3 – Performance Limited):
SYS-6029P-C1R, SYS-1029U-TN10RT, SYS-2029U-TN24R, AS-1123US-TN9R, AS-2023US-TR4
Important Deployment Notes
- NVMe U.3/U.2 backplane required (SAS/SATA backplanes are not supported)
- Must be installed in a Supermicro 2.5" NVMe tray for proper fitment
- U.3 drives are backward compatible with U.2 infrastructure when properly cabled
- Performance scales depending on platform generation (Gen4 vs Gen3 systems)
- Requires strong airflow for proper thermal management
Summary
The SK Hynix PE8110 3.84TB NVMe SSD delivers enterprise-class performance and reliability for Supermicro servers, supporting multiple generations of platforms with NVMe-enabled backplanes. It is well suited for virtualization, cloud infrastructure, and high-performance read-intensive workloads.
