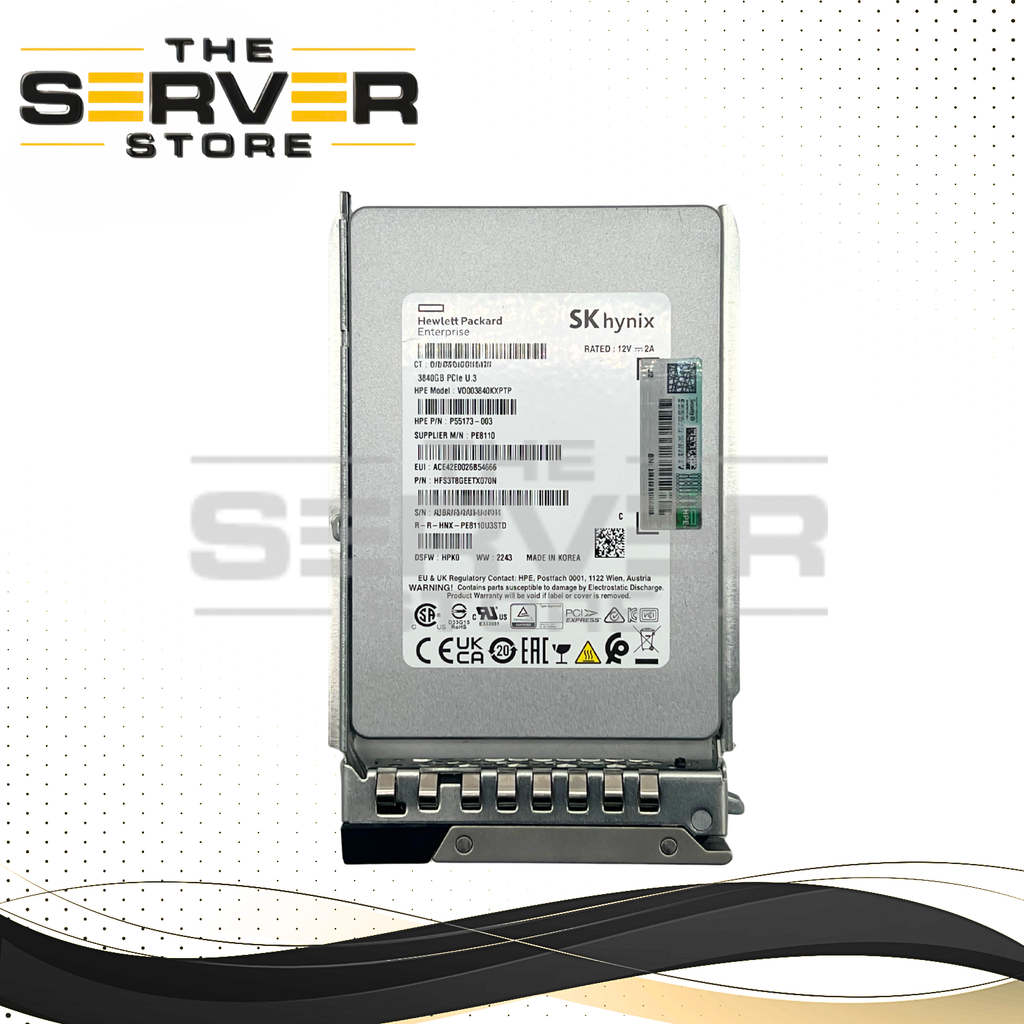

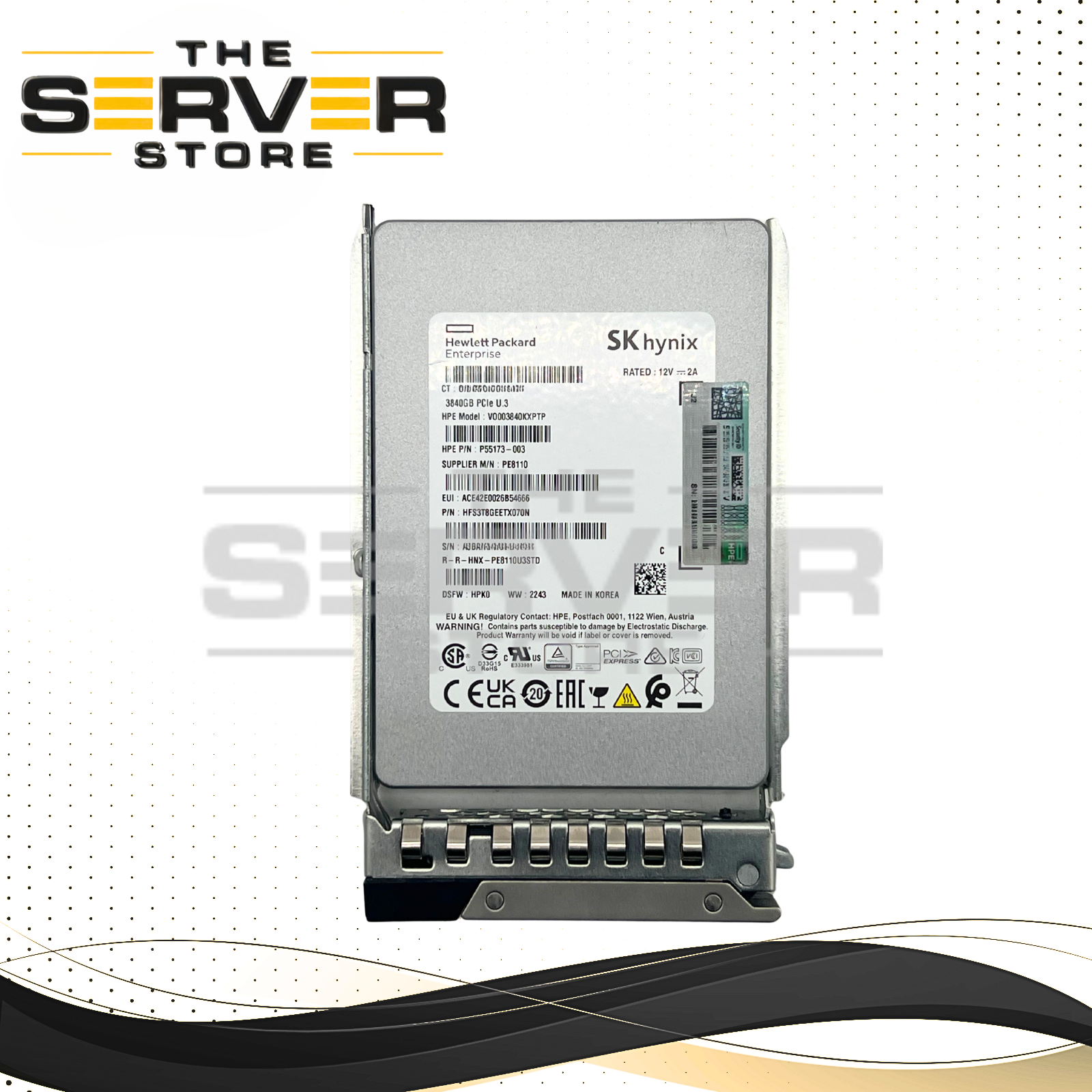

SK Hynix 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" 15mm SSD PE8110 for Dell PowerEdge Server Gen 16th 15th 14th with Dell Tray

The SK Hynix PE8110 Series 3.84TB NVMe SSD is an enterprise-grade, read-intensive solid-state drive designed for high-performance data center and server environments. Built on PCIe Gen4 technology with a U.3 (tri-mode) interface, it delivers high throughput, low latency, and strong reliability for virtualization, cloud computing, and read-heavy workloads.

---

Other Related Part Numbers

HFS3T8GEETX070N, PE8110

---

Technical Specifications

• Capacity: 3.84TB
• Series: PE8110
• Interface: PCIe Gen4.0 x4, NVMe 1.4
• Form Factor: 2.5-inch SFF (15mm)
• Connector: U.3 (backward compatible with U.2)
• NAND Flash: 128-layer 3D TLC NAND
• Workload Type: Read Intensive (RI) (~1 DWPD)

---

Performance

• Sequential Read: Up to ~6,200 – 6,500 MB/s
• Sequential Write: Up to ~3,800 – 4,000 MB/s
• Random Read: Up to ~1,000,000+ IOPS
• Random Write: Up to ~150,000 – 180,000 IOPS

---

Reliability & Features

• Endurance: ~1 DWPD
• MTBF: Up to 2.5 million hours
• Encryption: AES 256-bit hardware encryption
• Power Loss Protection: Yes
• End-to-End Data Protection: Yes

---

Power & Environmental

• Active Power: ~17W
• Idle Power: ~5W
• Operating Temperature: 0°C to 70°C

---

Dell PowerEdge Compatibility (With Dell 2.5" Tray – 0DXD9H / Equivalent)

16th Generation (Gen16 – PCIe Gen4 Full Speed):
R660, R760, R760xs, R6615, R6625, R860, R960

15th Generation (Gen15 – PCIe Gen4 Full Speed):
R650, R750, R750xs, R6515, R6525, R550, R450

14th Generation (Gen14 – PCIe Gen3, performance limited):
R640, R740, R740xd, R440, R540

---

Important Deployment Notes

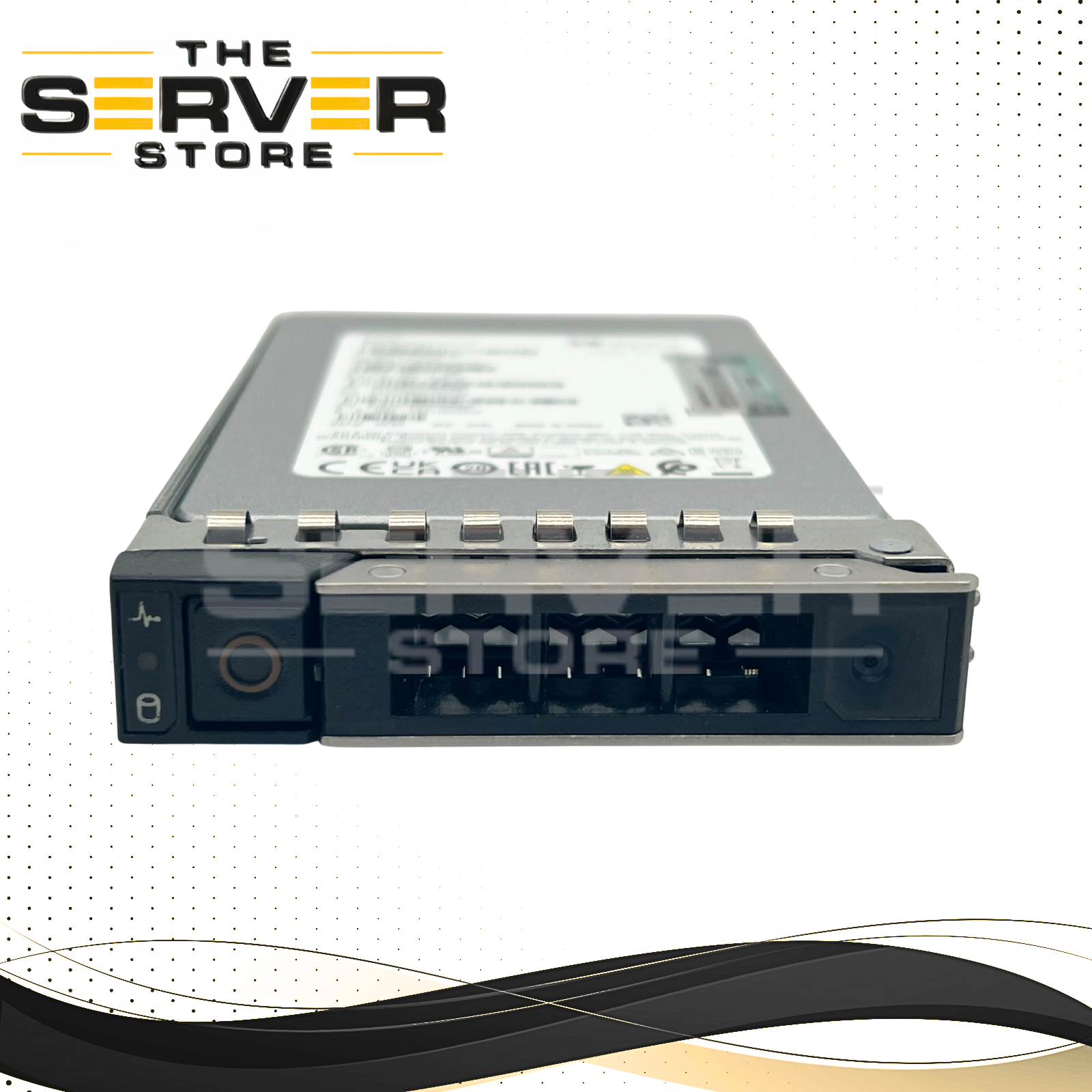

• Tray Included: Dell 2.5" SFF hot-swap tray (0DXD9H or compatible)
• Backplane Required: NVMe-enabled backplane (SAS/SATA-only will NOT work)
• U.3 Compatibility: Backward compatible with U.2 slots
• Performance Scaling:
  • Gen16 / Gen15 → Full PCIe Gen4 speeds
  • Gen14 → Limited to PCIe Gen3 (~3,500 MB/s)
• Firmware Note: OEM firmware may affect LED indicators or monitoring in iDRAC

---

Summary

The SK Hynix PE8110 3.84TB NVMe SSD delivers enterprise-class performance optimized for read-intensive workloads. With support for Dell PowerEdge 14G–16G servers and an included Dell tray, it provides a reliable and high-speed storage solution for modern data center environments.
