Description

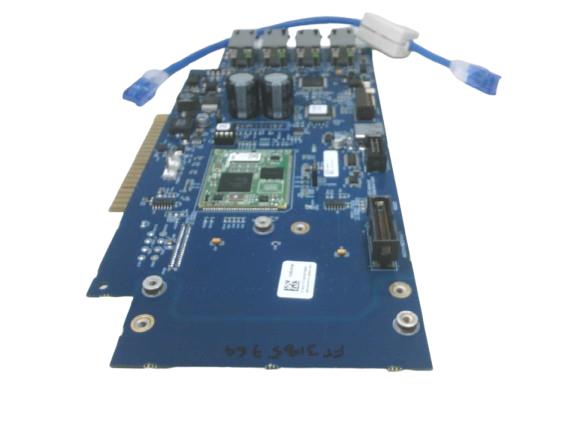

The Simplex 4100-6104 is an ES Net Network Interface Card (NIC) designed for use in 4100ES fire alarm control cabinets. It connects a 4100ES FACU, TrueSite Workstation, or Incident Commander to the ES Net network, supporting Class B and Class X operation. This module includes integrated Ethernet ports and expansion slots for additional media cards.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Simplex |
| Category |
HMI / MMI / OIT |
| Part Number |
4100-6104 |
| Subcategory |
OIT Boards/Module |
| Function |
ES Net Network Interface Card |
| Compatible Systems |
Simplex 4100ES series FACUs and workstations |
| Ports Available |
2 Ethernet (standard) + 2 media card slots |
| Supported Media |
Fiber (single-mode/multi-mode), DSL, Ethernet (optional) |
| Network Support |
ES Net fire alarm system network |
| Topologies Supported |
Class B and Class X |
| Earth Fault Detection |
Available on ports A and C |
| Mounting Type |
Single-slot mounting in 4100ES bay |
| Application |
Fire alarm system networking and integration |
| Status |
Active product (not marked as obsolete) |
| Weight |
0.55 lbs |
Information About 4100-6104
The 4100-6104 is a network interface card that mounts in a single slot of a 4100ES bay to provide connectivity to the ES Net fire system network. It features two onboard Ethernet ports for direct node-to-node communication, with the option to install up to two additional media cards for fiber, DSL, or Ethernet. The card supports Class B and Class X network topologies, enhancing reliability and redundancy in mission-critical fire protection networks. Ports A and C can be configured for earth fault detection, ensuring robust supervisory control.
Key Features:
- ES Net Interface: Provides connectivity between 4100ES panels and ES Net networks.
- Dual Ethernet Ports: Two built-in ports for direct interconnection with other nodes.
- Media Card Expansion: Supports up to two optional cards (fiber, DSL, Ethernet).
- Flexible Topologies: Compatible with both Class B and Class X network wiring.
- Earth Fault Detection: Ports A and C can be configured for ground fault monitoring.
- Single-Slot Mounting: Installs into one slot of a 4100ES control bay.
- System Integration: Links FACUs, TrueSite Workstations, and Incident Commanders.
- High Reliability: Designed for mission-critical life-safety communication systems.
- Mixed Media Support: Allows different media card types within the same card.
The 4100-6104 delivers the reliability and precision required for secure fire alarm network communications in large-scale safety systems.
