Shure Microflex Advance 4-Channel Dante Mic/Line Audio Network Interface Unit (Block Inputs)

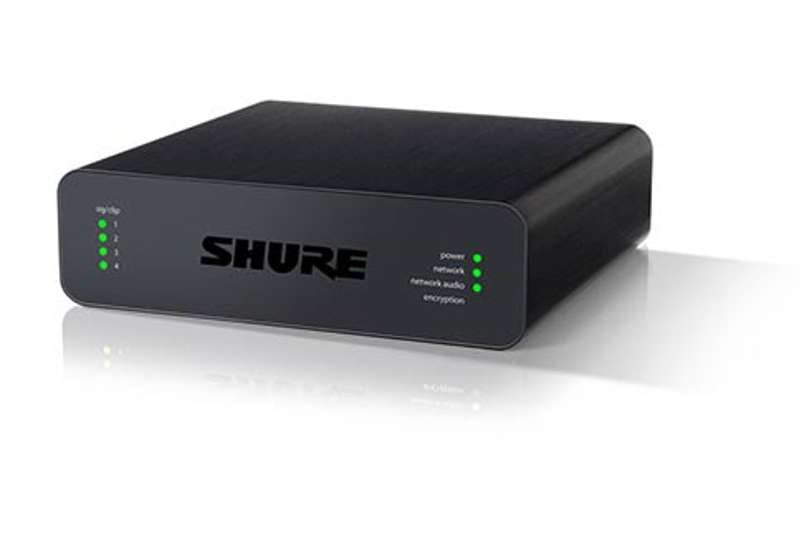

The 1/3 RU Microflex Advance Dante Mic/Line Audio Network Interface Unit from Shure is an interface unit with four block input ports that convert four line or microphone analog signals onto a Dante network for audio routing and browser-based control. It features a single Ethernet port, customizable EQ settings, channel summing, and LEDs that indicate the device status and audio signal. It is compatible with third party control systems.

• Single Ethernet port carries Dante audio, power (PoE - class 0)

• Control strings for third-party preset controllers including Crestron and AMX

• Four band C/S PEQ on every channel

• Provides channel summing to combine input signals and send them over a single Dante channel

• Browser-based software control for all device parameters, per input channel for preamp gain, phantom power, mute control, digital gain, and polarity control

• Chassis ground screw provides common chassis ground for multiple inputs
