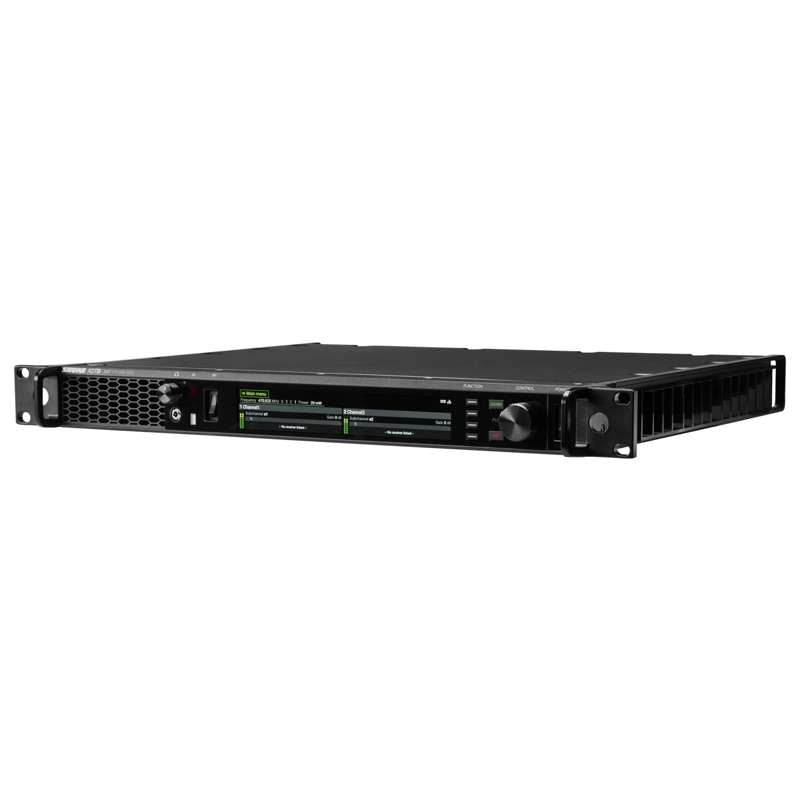

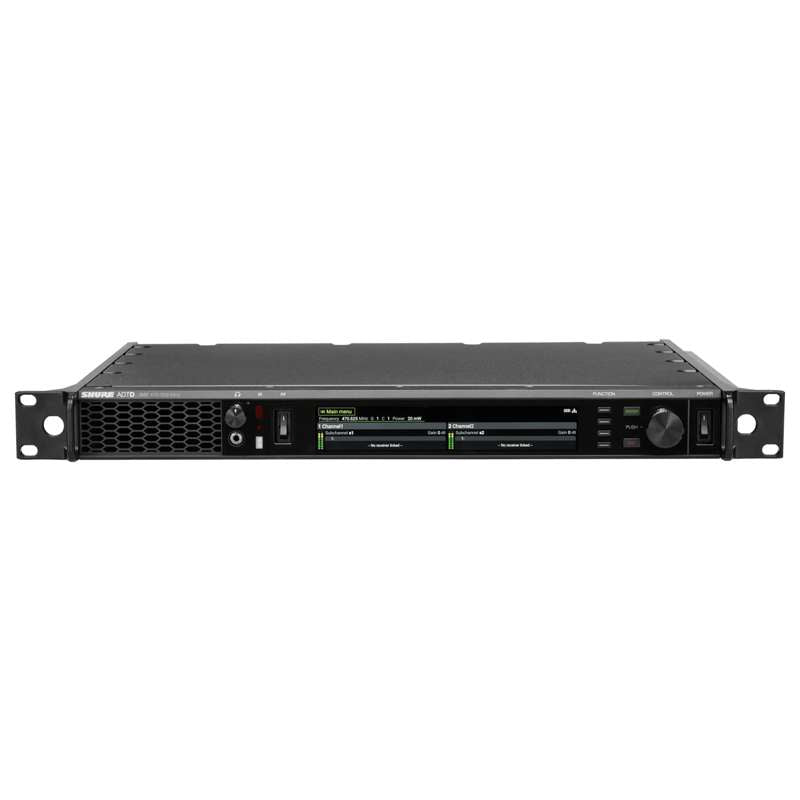

ADTD Axient® Digital PSM Wireless Dual Transmitter

The ADTD Axient® Digital PSM Wireless Dual Transmitter redefines what’s possible in modern in-ear monitoring. With groundbreaking features such as scalable channel count, Multichannel Wideband RF, and Spatial Diversity Transmission, the ADTD ensures flawless performance even in the most demanding RF environments. Engineers gain unprecedented workflow flexibility with ShowLink® remote control, Wireless Workbench® integration, and support for analog and digital audio formats including AES3, AES67, and Dante. Designed for precision, power, and scalability, the ADTD is fully compatible with the Axient Digital PSM ADXR Bodypack Receiver.

Expandable. Flexible. Unstoppable.

Powered by Shure’s WMAS innovation, Axient Digital PSM delivers next‑generation spectral efficiency, remarkable audio quality, and the agility required for today’s most complex productions. Whether for major tours, broadcast events, or large-scale live shows, the ADTD opens the door to creative possibilities previously out of reach.

Key Features

• Two‑radio, digital wireless stereo transmitter engineered for Axient Digital PSM in-ear monitoring workflows
• Powered by Shure WMAS innovation for advanced spectral efficiency and scalable channel count
• Patented Spatial Diversity transmission technology for superior resistance to multipath interference
• Four selectable transmission modes:
  • Multichannel Wideband – Delivers up to two stereo audio channels per radio
  • Narrowband – Provides increased RF output power for extended range
  • Analog FM – Offers ultra‑low latency through hybrid technology
  • Axient Digital Standard (PTP) – Enables use with any Axient Digital wireless microphone receiver
• Wide tuning range supports operation across more cities, events, and international touring conditions
• Real‑time remote control of all ADXR bodypack parameters via ShowLink® technology
• Encrypted RF transmission ensures secure, protected audio delivery
• Five‑segment Channel Quality meter displays RF signal‑to‑noise for immediate diagnostics

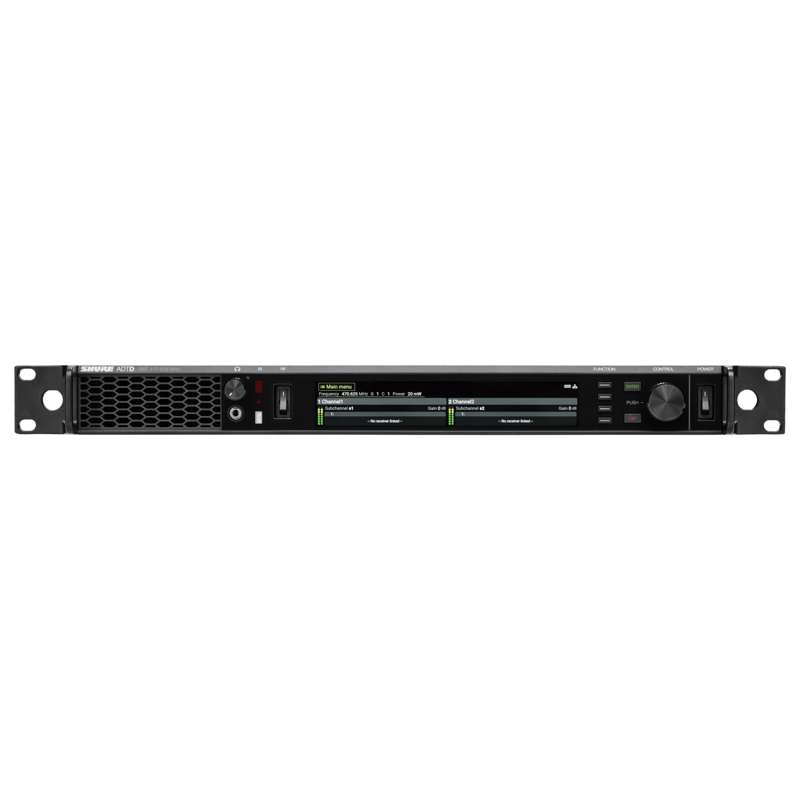

• Large 6.6‑inch front‑panel color display for intuitive monitoring and configuration
• Networked control with Shure Wireless Workbench® for expanded RF management and monitoring
• Optional internal antenna combining to minimize external hardware requirements

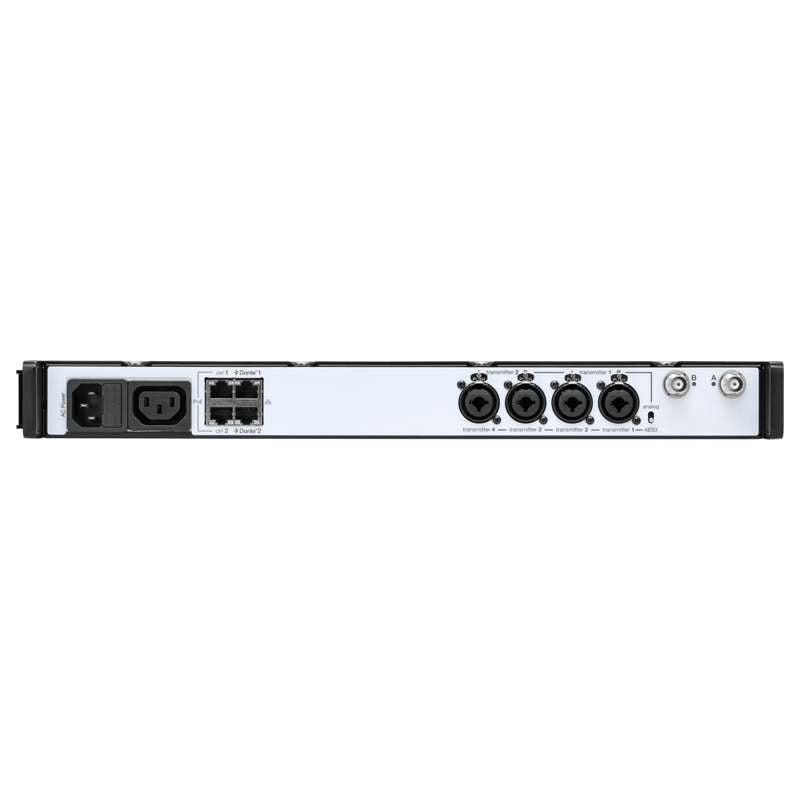

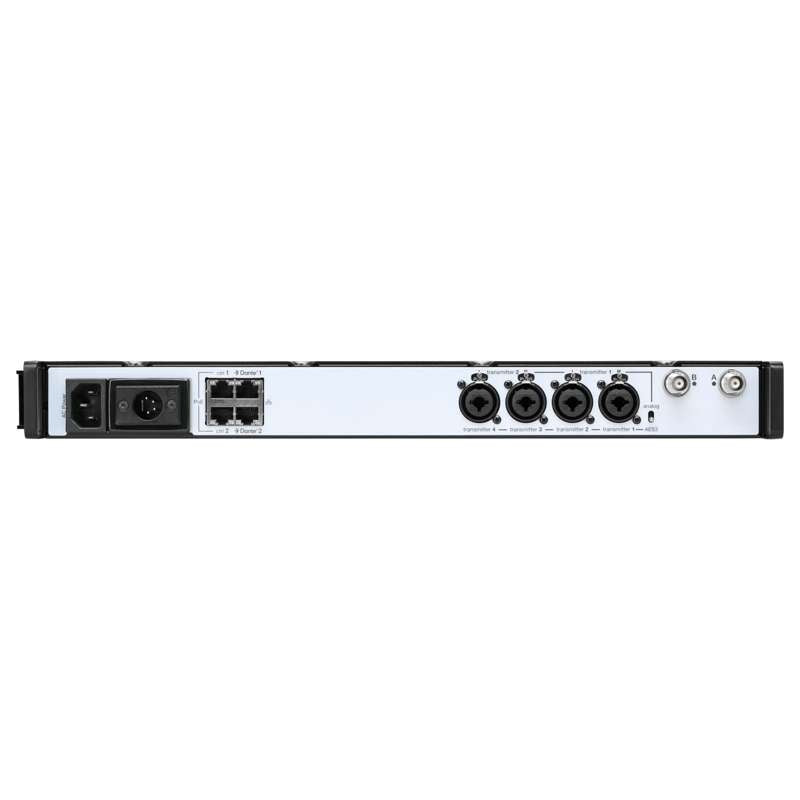

• Four switchable combo connectors (analog or AES3 digital)
• Four Ethernet ports for network control and Dante/AES67 input routing
• Two coaxial RF antenna output connectors
• Front‑panel 3.5 mm headphone jack with adjustable volume for cue monitoring
• Locking AC power connection supports cascading to additional components
• Optional DC power module for redundant power configurations

In the Box

• 1 ADTD Dual Wireless Transmitter
• 1 Rackmount Kit
• 1 Locking Power Cable
• 1 Locking Power Jumper Cable
• 2 BNC Cables
• 2 BNC Cable Assemblies
• 2 BNC Bulkhead Adapters
• 2 Half‑wave Antennas
• 1 Ethernet Cable
• 1 Ethernet Jumper Cable
