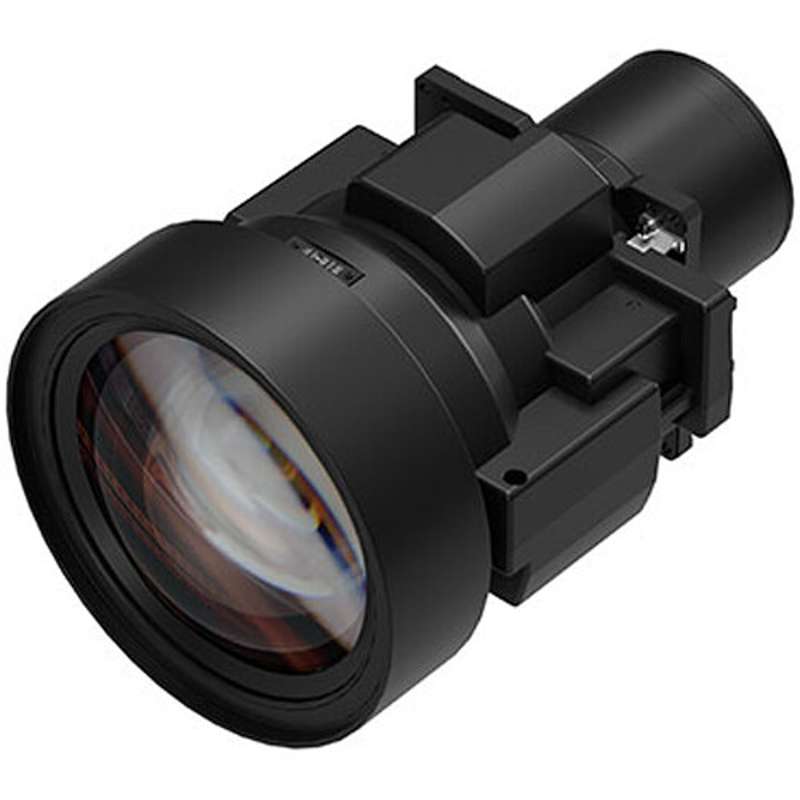

Sharp XP-52ZL – Short Throw Zoom Lens

For XP-A155U, A175U, XP-A201U-B, NP-PA1505UL, PA1705UL projectors

Physical Specifications

• Dimensions (WxHxD): 6.9 x 10.9 x 6.9 in. / 174 x 277 x 174 mm
• Shipping Dimensions: 12.9 x 20.5 x 13.5 in. / 328 x 520 x 344 mm
• Net Weight: 12.1 lbs. / 5.5 kg
• Shipping Weight: 15.4 lbs. / 7.0 kg

Environmental Conditions

• Operating Temperature: 32–113°F / 0–45°C
• Operating Humidity: 20–85% (Non-Condensing)
• Operating Altitude: 3–2600 m (8,500 ft)
• Storage Temperature: 14–122°F / -10–50°C
• Storage Humidity: 20–80% (Non-Condensing)
• Storage Altitude: 0–12,000 m / 0–39,370 ft

Warranty

1 year parts and labor

Optical

• Throw Ratio: 0.65–0.86:1
• Projection Distance: 2.7–31.3 ft / 0.81–9.5 m
• Projector Angle: 22.3–23.1° (tele) / 27.3–28.7° (wide)
• Zoom: Motorized
• Focus: Motorized
• F Number: F=1.84–2.25
• Focal Length: f=14.4–19.1 mm

Mechanical

• Lens Adjustment: Motorized focus, zoom, horizontal/vertical shift
• Lens Memory: Stores settings (shift/zoom/focus)
• Supported Screen Size: 60–500 in. / 1.5–12.7 m
