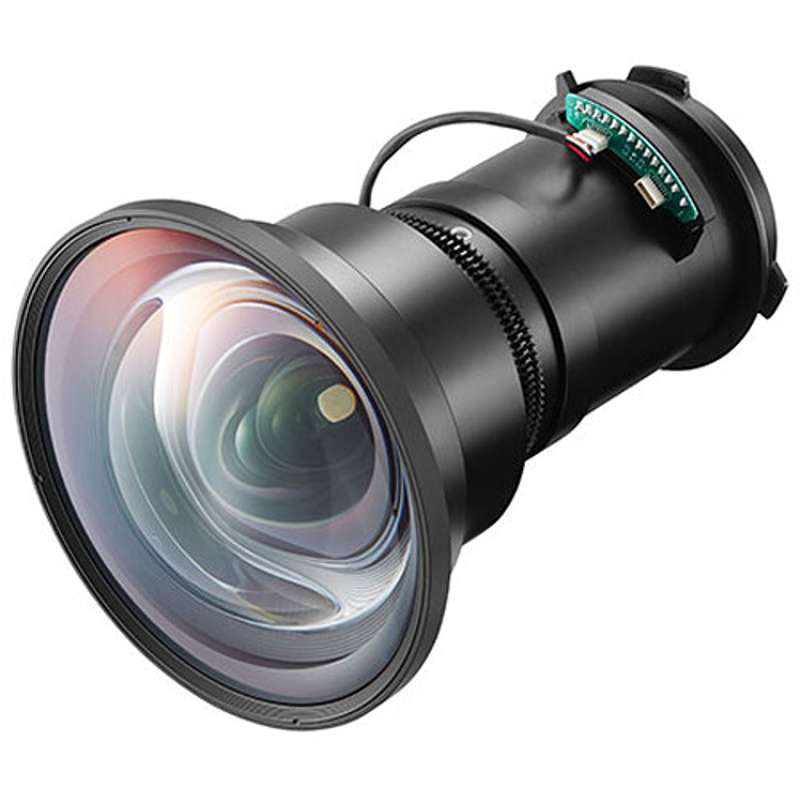

0.6 – 0.76:1 Motorized Zoom Lens (lens shift)

0.6-0.75:1 Motorized Zoom Lens (lens shift) for the NP-PA804UL-B/PA804UL-W and NP-PA1004UL-B/PA1004UL-W projectors

Physical Specifications

Dimensions (WxHxD)

• Product: 6 x 9.3 x 6 in. / 153 x 235 x 153 mm
• External: 11.8 x 11.8 x 11.8 in. / 300 x 300 x 300 mm
• Shipping: 11.8 x 11.8 x 11.8 in. / 300 x 300 x 300 mm

Weight

• Net Weight: 5.5 lbs. / 2.5 kg
• Shipping: 9.9 lbs. / 4.5 kg

Environmental Conditions

• Operating Temperature: 41–104°F / 5–40°C
• Operating Humidity: 21 to 85% Humidity (Non-Condensing)
• Operating Altitude: 1 to 3650 m (12,000 ft)
• Storage Temperature: 14–122°F / -10–50°C
• Storage Humidity: 20% – 80% (non-condensing)
• Storage Altitude: 0–12,000 m / 0–39,370 ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a 1-year parts and labor warranty.

Optical

• Throw Ratio: 0.6 – 0.76:1
