Description

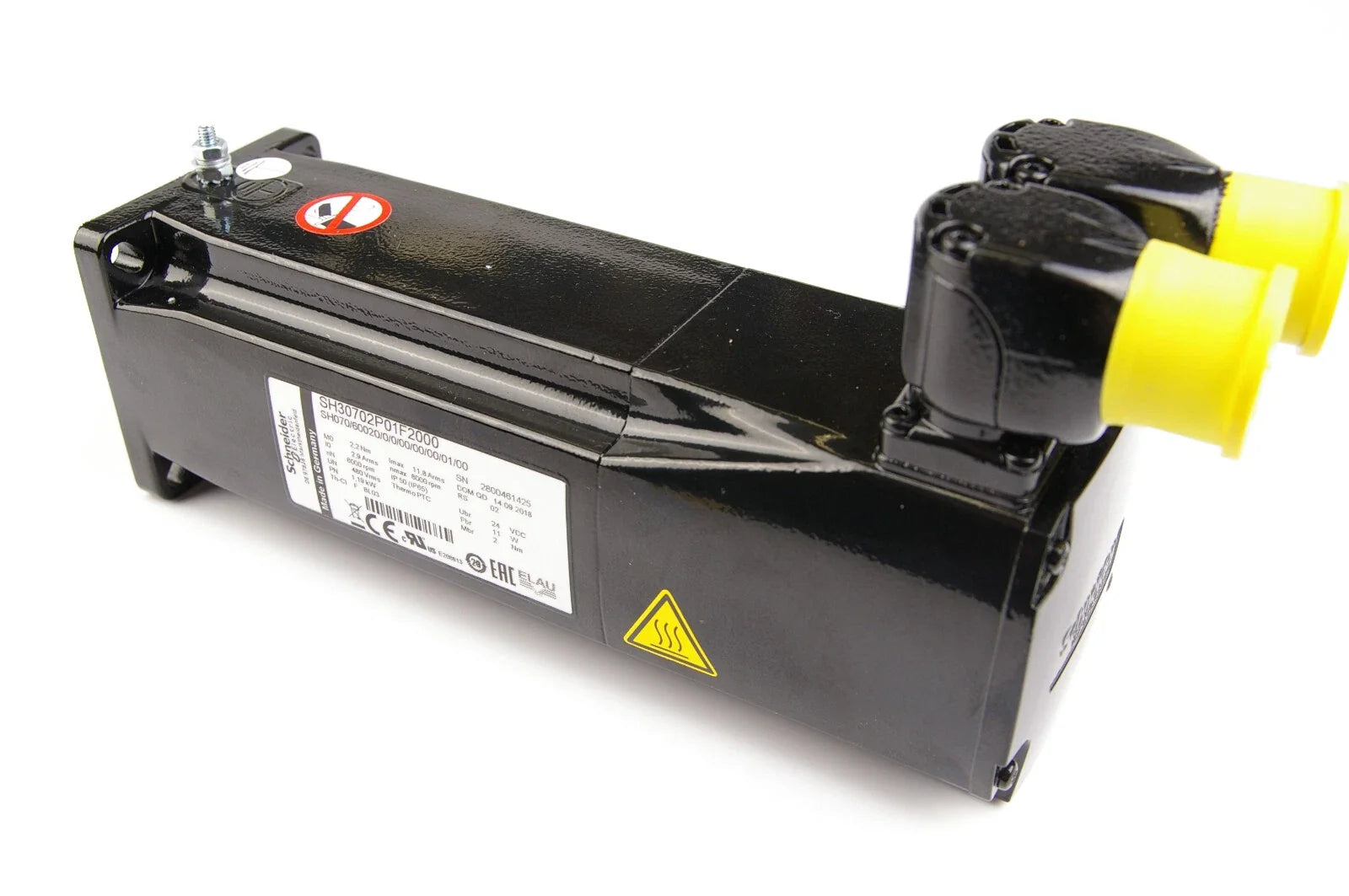

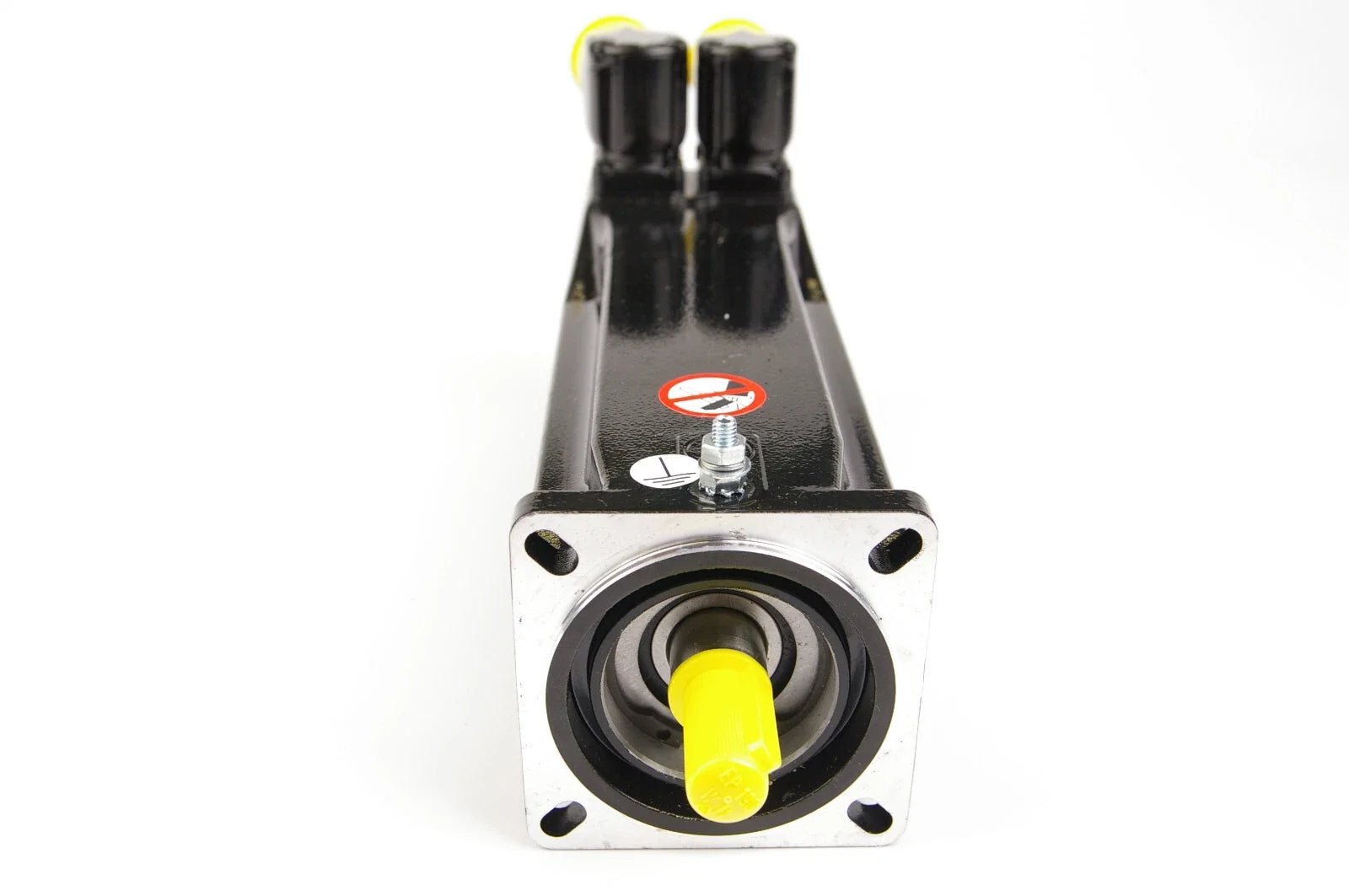

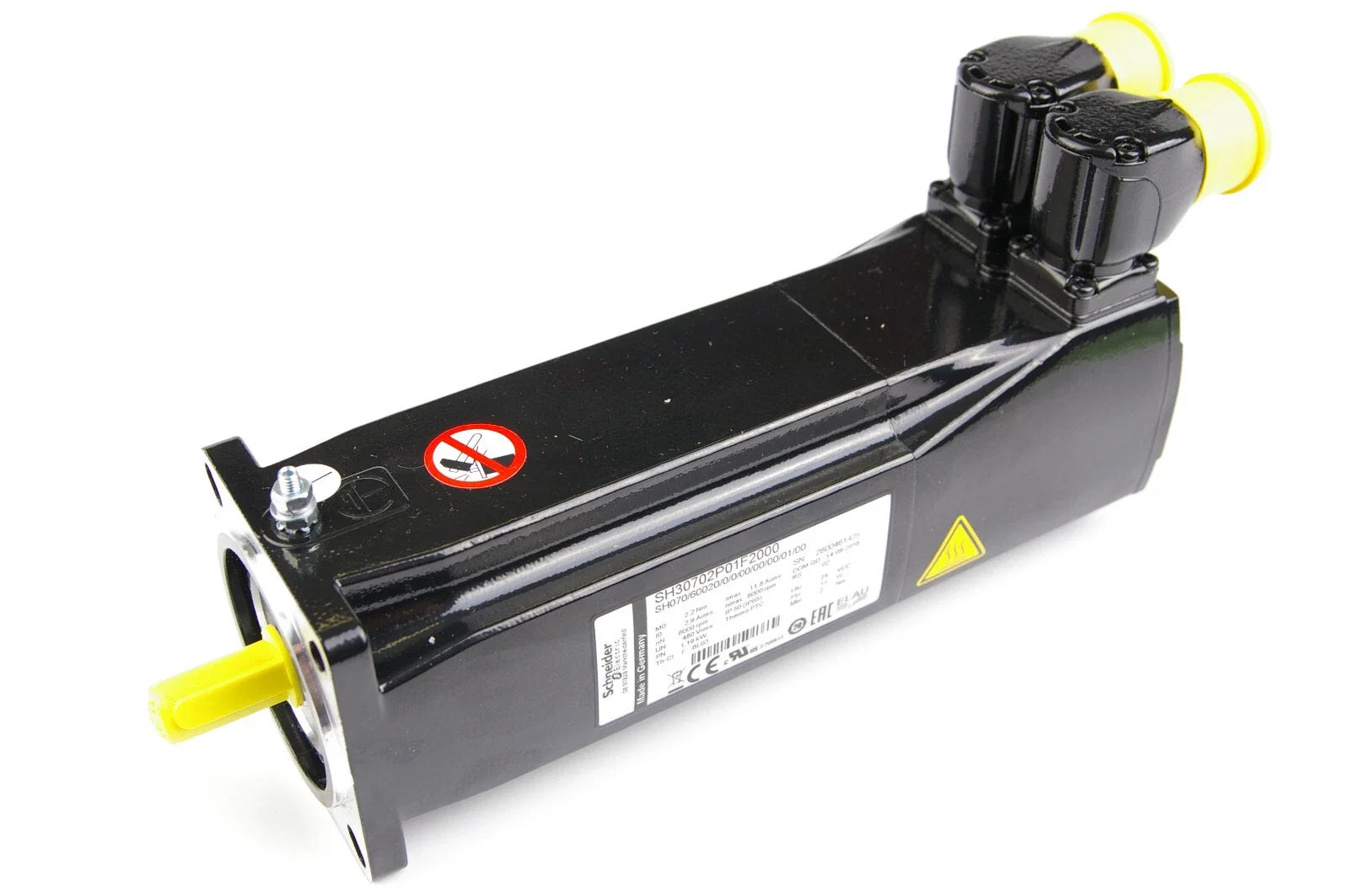

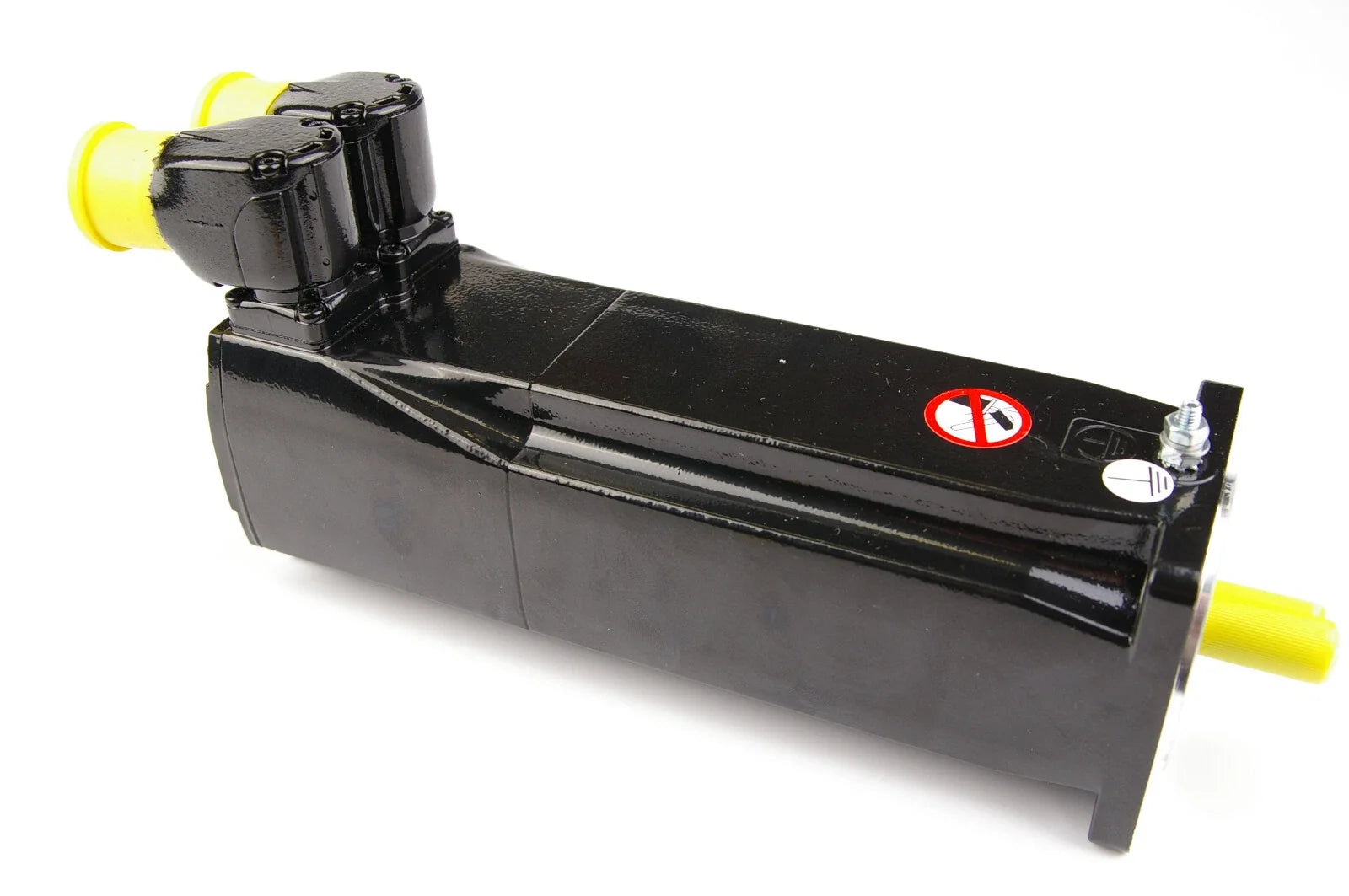

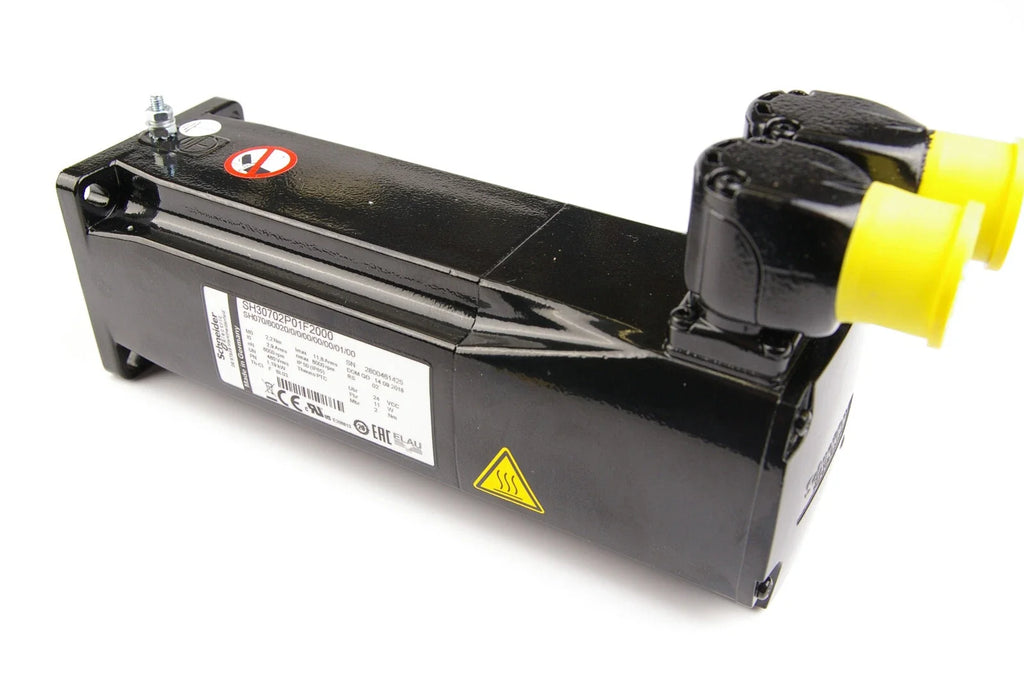

The Schneider Electric SH30702P01F2000 is a compact SH3 series servo motor engineered for precise motion control in PacDrive 3 systems. It integrates a smooth shaft design, holding brake, and absolute SinCos single-turn encoder to support accurate positioning and controlled torque delivery.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Motion Control |
| Part Number |
SH30702P01F2000 |
| Subcategory |
Servo Motors |
| Series |
SH3 |
| Motor Type |
AC Servo Motor |
| Range Compatibility |
PacDrive 3 |
| Rated Supply Voltage |
115–480 V |
| Phase |
Three Phase |
| Maximum Speed |
8000 rpm |
| Continuous Power |
1130 W |
| Continuous Stall Torque |
2.04 N·m |
| Peak Stall Torque |
7.6 N·m |
| Continuous Stall Current |
2.9 A |
| Maximum Current (Irms) |
11.8 A |
| Encoder Type |
Absolute Single-Turn SinCos (Hiperface) |
| Speed Feedback Resolution |
128 periods |
| Holding Brake |
Yes |
| Holding Torque |
3.0 N·m |
| Shaft Type |
Smooth Shaft |
| Shaft Diameter |
11 mm |
| Shaft Length |
23 mm |
| Motor Flange Size |
70 mm |
| Mounting |
International Standard Flange |
| Electrical Connection |
Straight Connector |
| IP Rating |
IP54 / IP65 (per IEC 60034-5) |
| Rotor Inertia |
0.482 kg·cm² |
| Stator Resistance |
4.2 Ω |
| Stator Inductance |
29.65 mH |
| Number of Poles |
3 |
| Weight |
8.03 lbs |
Information About SH30702P01F2000
The SH30702P01F2000 is part of the Schneider Electric SH3 servomotor family developed for high-performance motion control within PacDrive 3 automation platforms. This motor features a 70 mm flange size with a two-stack design, providing a balance of compact dimensions and dynamic torque capability. It operates across a wide voltage range from 115 to 480 V three-phase and incorporates an absolute single-turn SinCos encoder for precise speed and position feedback. Integrated holding brake functionality and selectable IP54/IP65 protection support reliable operation in controlled and industrial environments.
Key Features
- High-Speed Servo Performance: Supports maximum mechanical speeds up to 8000 rpm, enabling fast and responsive motion control in automated systems.
- Absolute SinCos Encoder Feedback: Single-turn Hiperface encoder with 128-period resolution provides accurate position and speed information without homing after power loss.
- Integrated Holding Brake: Built-in brake with 3.0 N·m holding torque ensures secure shaft holding during power-off or emergency stop conditions.
- Wide Voltage Operating Range: Compatible with 115–480 V three-phase supplies, simplifying integration across diverse electrical infrastructures.
- Compact 70 mm Flange Design: Space-efficient motor geometry supports dense machine layouts while maintaining high torque density.
- Smooth Shaft Configuration: Precision-machined smooth shaft supports flexible coupling and transmission design options.
- Industrial Protection Ratings: IP54 and IP65 protection options (per IEC 60034-5) support reliable operation in industrial environments with dust or moisture exposure.
The SH30702P01F2000 delivers the reliability and precision required for high-performance servo-driven motion control applications.
