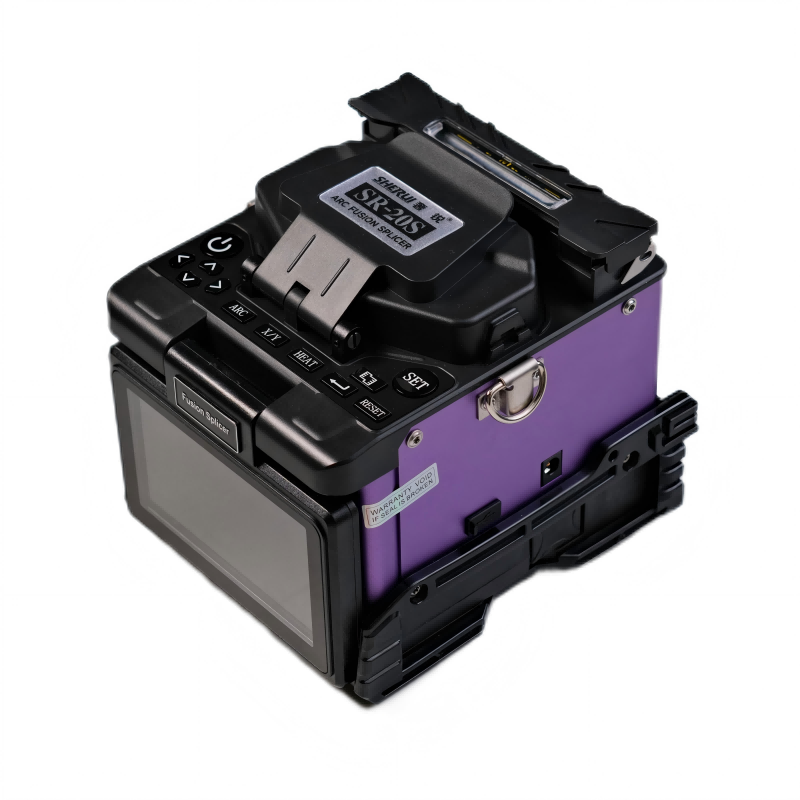

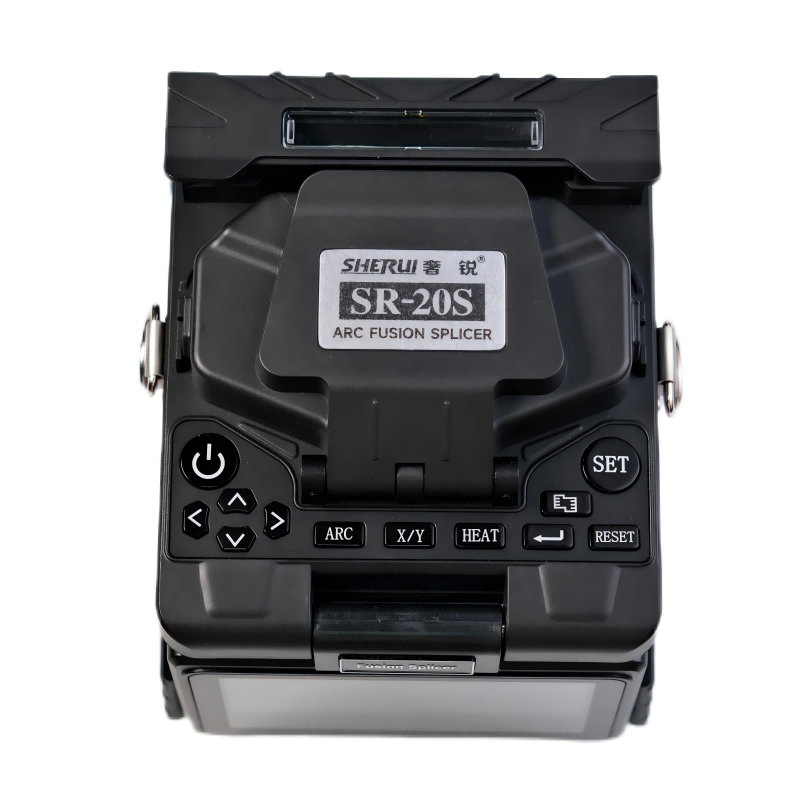

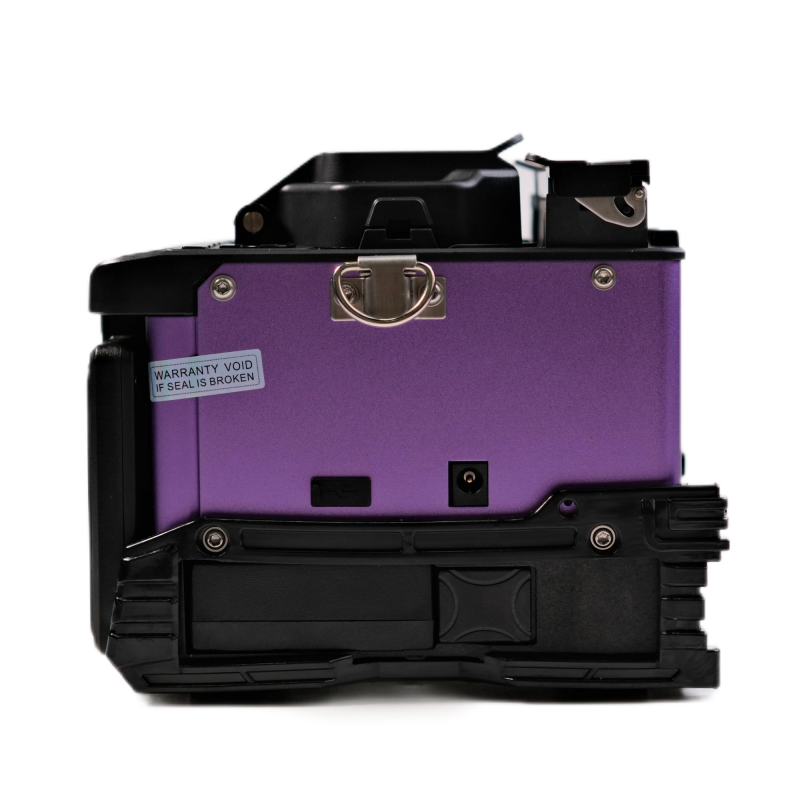

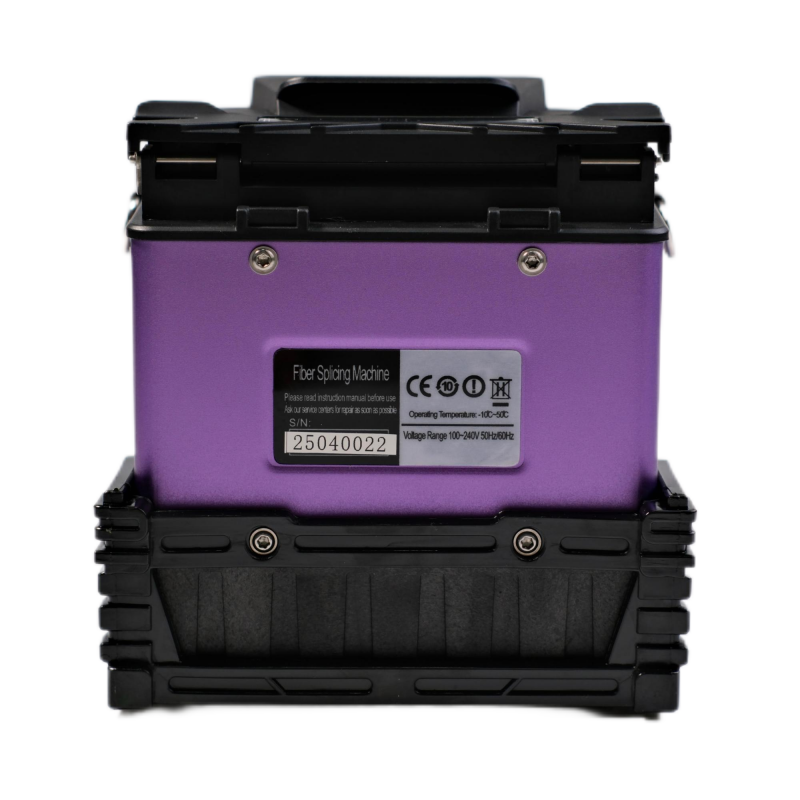

SH-SR20S 4-Motor Backbone ARC Fusion Splicer Kit
Precision, durability, and performance — all in one kit.
The SH-SR20S ARC Fusion Splicer is designed for high-performance backbone and FTTx fiber networks. Built with a 4-motor cladding-to-cladding alignment system, it delivers fast, low-loss splices for a wide range of fiber types.
Whether you're deploying long-haul single-mode lines or working with patch cords and drop cables, this splicer provides high-speed efficiency with a typical splice time of just 8 seconds.
Its 4.3" color LCD and intuitive GUI interface make it easy to operate, while the large 5800mAh battery supports up to 250 splice-and-heat cycles on a single charge — perfect for field use.

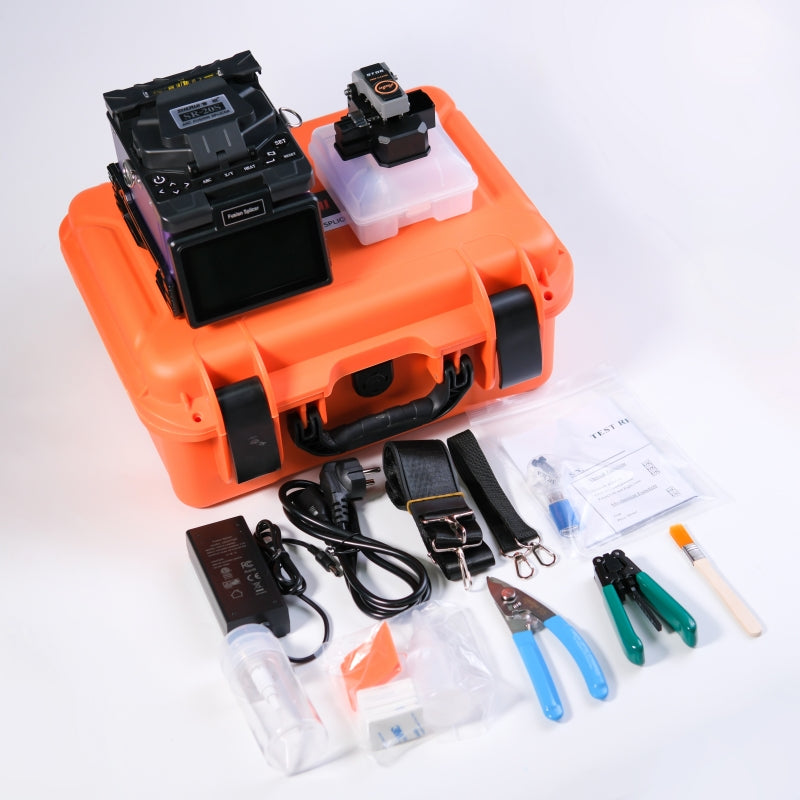

This full kit includes everything you need: cleaver, strippers, power accessories, cleaning tools, and test documentation.
Download Product Specifications:
Key Features
-

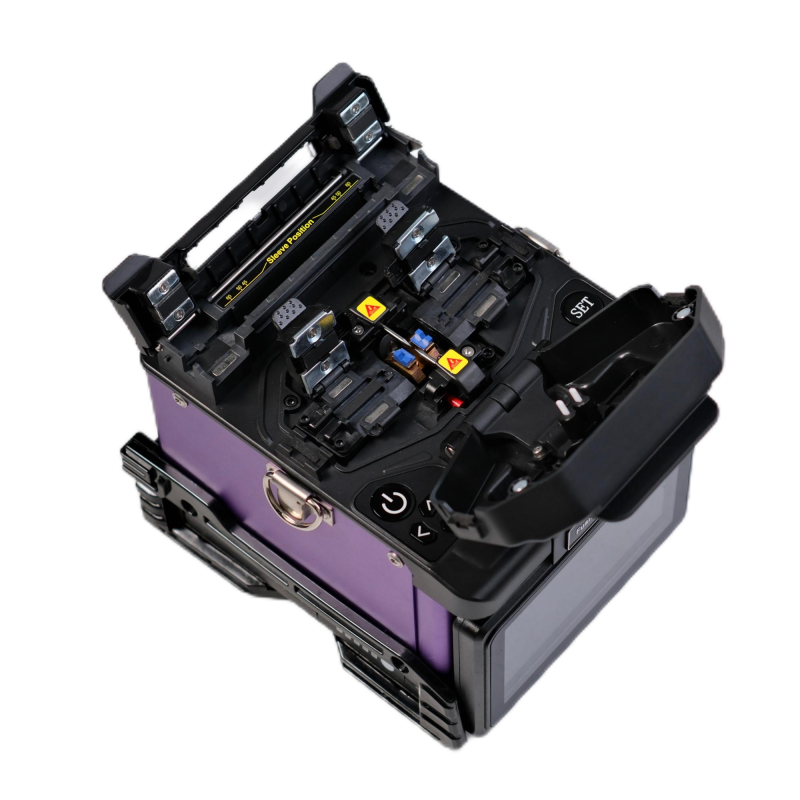

✅ 4 motors with cladding-to-cladding alignment for high accuracy
-
✅ Supports SM, MM, DS, NZDS, BI, and EB fibers (ITU-T standards)
-
✅ Fast 8s typical splice time and 18s heat time
-
✅ 4.3" LCD screen with easy-to-use GUI
-
✅ 5800mAh Li battery for up to 250 operations
-
✅ Stores 4000 splice records with USB export
-
✅ Rugged portable case and full tool kit included
Package Includes
Technical Specifications
| Feature |
Description |
| Model |
SR-20S |
| Fiber Alignment |
4 motors, cladding to cladding |
| Operation Mode |
Automatic / Manual |
| Fiber Holder |
Multifunctional: bare fiber, pigtail, patch cord, drop cable |
| Applicable Fiber Types |
SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BI (G.657), EB (G.654) |
| Typical Splice Loss |
SM: 0.02dB, MM: 0.01dB, EB: 0.03dB, DS/NZDS: 0.04dB, BI: 0.02dB |
| Cladding Diameter |
80–150 µm |
| Coating Diameter |
160–900 µm |
| Cleaved Length |
5–16mm (coating <250µm), up to 16mm (250–1000µm) |
| Splicing Programs |
40 |
| Typical Splicing Time |
8 seconds |
| Heating Time |
18 seconds |
| Storage Capacity |
4000 splicing results |
| Return Loss |
>60 dB |
| Loss Evaluation |
Available |
| Interface |
GUI menu, easy for operation |
| Working Conditions |
Altitude: 0–5000m, Humidity: 0–95%, Temp: -10°C ~ +50°C |
| Tension Test |
1.96–2.25N |
| Display |
4.3" Color LCD |
| Magnification |
300x (X/Y), 150x (X+Y) |
| Data Port |
USB 2.0 (software upgrades, data export) |
| Electrode Life |
>5000 arc discharges |
| Power Supply |
AC100–240V, 50/60Hz |
| Battery |
5800mAh Li-ion (typical 250 cycles) |
| Dimensions |
157mm (L) × 136mm (W) × 135mm (H) |
| Weight |
1.65kg (with battery) |
