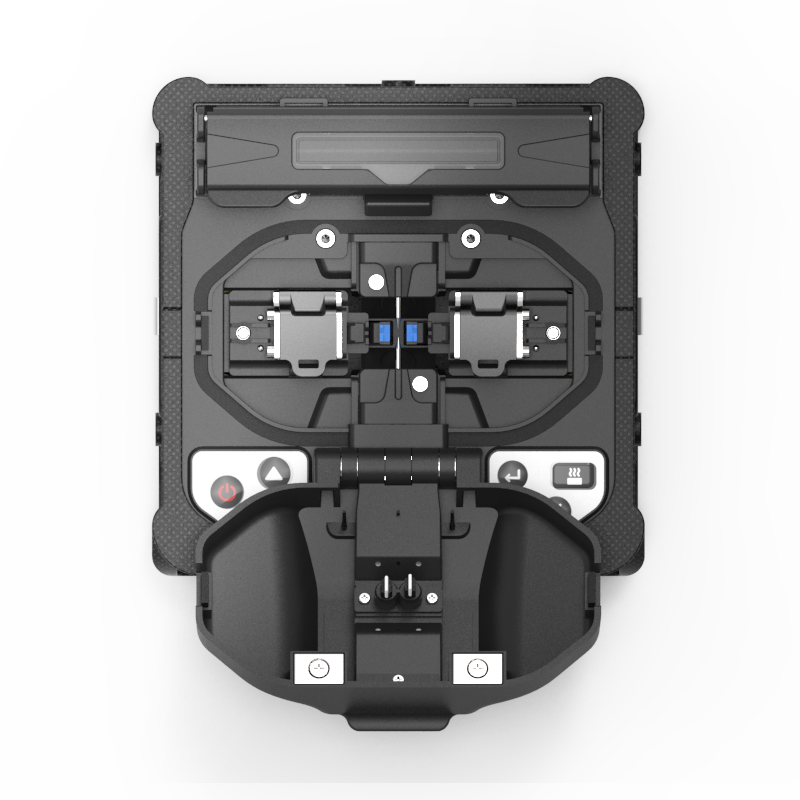

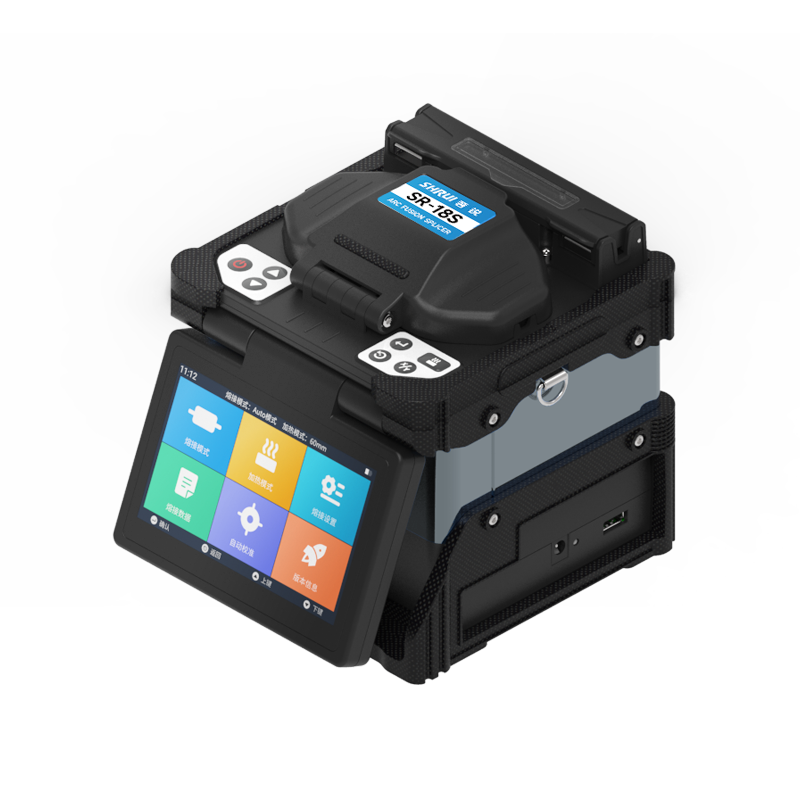

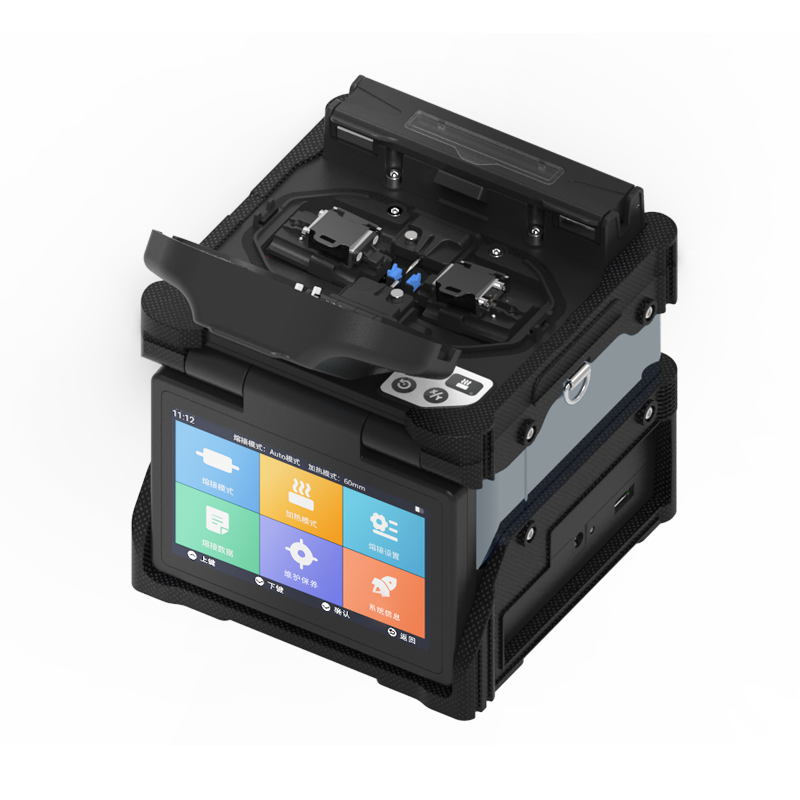

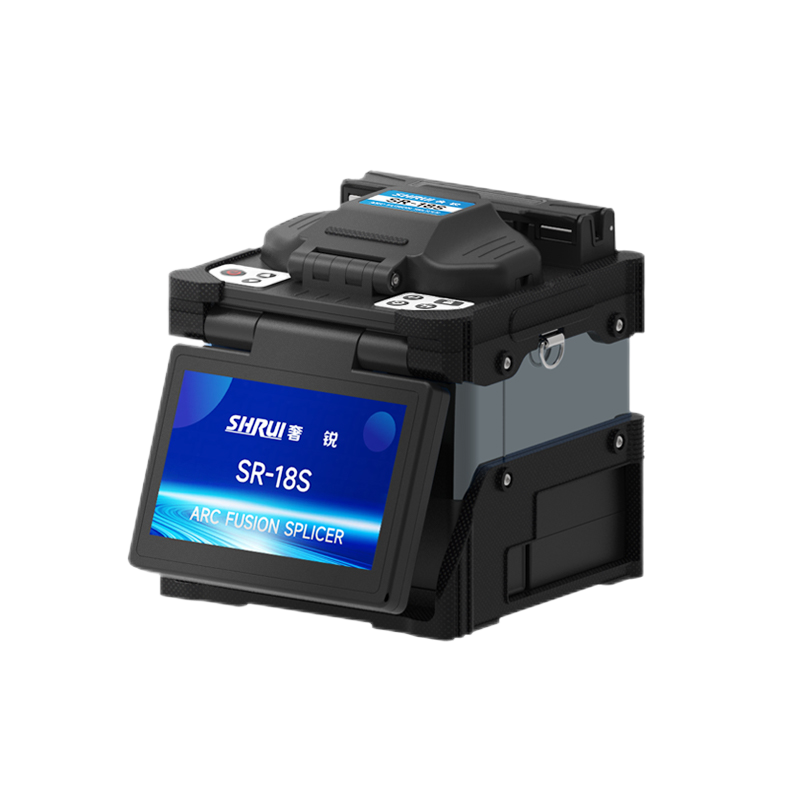

SH-SR18 ARC Fusion Splicer
Smart. Rugged. Ultra-Fast Splicing.
The SH-18S is a high-performance fusion splicer engineered for core and cladding alignment with advanced auto-identification capabilities. Equipped with dual industrial-grade CPUs and a 5-inch HD touchscreen, the SR18 delivers exceptional speed, precision, and reliability — ideal for both backbone and FTTx installations.
With a splice time as fast as 6 seconds and heating in just 15 seconds, the SR18 enhances job site productivity. It supports a wide range of fibers, including SM, MM, DSF, NZDSF, and BIF/UBIF (G.652 to G.657). Built tough for the field, it features a dustproof, quakeproof, and waterproof design, ensuring stable operation under extreme conditions. Its 7800mAh battery supports up to 400 splice-and-heat cycles on a single charge.
Download Product Spec Sheet:
Key Features
-
3 alignment modes: Core alignment, cladding alignment, auto-identification
-
Fast splicing/heating: 6s splice time, 15s heat time
-
5” HD touchscreen: Clear, intuitive operation in all environments
-
Dual CPU architecture: Ensures fast processing and stability
-
Up to 400 splicing cycles per charge with 7800mAh battery
-
Magnification: 380x for clear fiber positioning
-
Supports multiple fiber types: SM, MM, DSF, NZDSF, BIF/UBIF
-
Dustproof, shockproof, waterproof — built for rugged field use
Technical Specifications
| Specification |
Details |
| Model |
SH-18S |
| Alignment |
Core / Cladding / Auto-identification |
| Applicable Fibers |
SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BIF/UBIF (G.657) |
| Fiber Diameter |
Cladding: 80–150 μm; Coating: 100 μm – 3 mm |
| Fiber Cleaved Length |
5 – 16 mm |
| Splice Time / Heat Time |
6 s / 15 s |
| Typical Splice Loss |
SM: 0.02 dB, MM: 0.04 dB, DSF: 0.04 dB, NZDSF: 0.04 dB |
| Magnification |
380x |
| Splice Modes / Heat Modes |
Multiple preset modes; customizable |
| Storage Capacity |
10,000 groups |
| Tension Test |
1.96 – 2.25 N |
| Display |
5" HD LCD touch screen |
| Electrode Life |
3,000 – 5,000 times |
| Data Terminal |
USB drive support for firmware upgrades and data export |
| Power Supply |
Input: AC 100–240V, 50–60Hz; Output: DC 10–13.5V |
| Battery |
7800mAh Li-ion (400 cycles), USB chargeable |
| Protection Sleeve Length |
10 – 60 mm |
| Environmental Conditions |
Altitude: 0–5000 m; Temp: -10℃ ~ +50℃; Wind: ≤15 m/s; Humidity: 0–95%RH |
| Protection Rating |
Dustproof, Shockproof, Waterproof |
| CPU |
Industrial-grade dual-core quad CPU |
| Dimensions |
144 × 142 × 151 mm |
| Weight |
2.2 kg (with battery) |

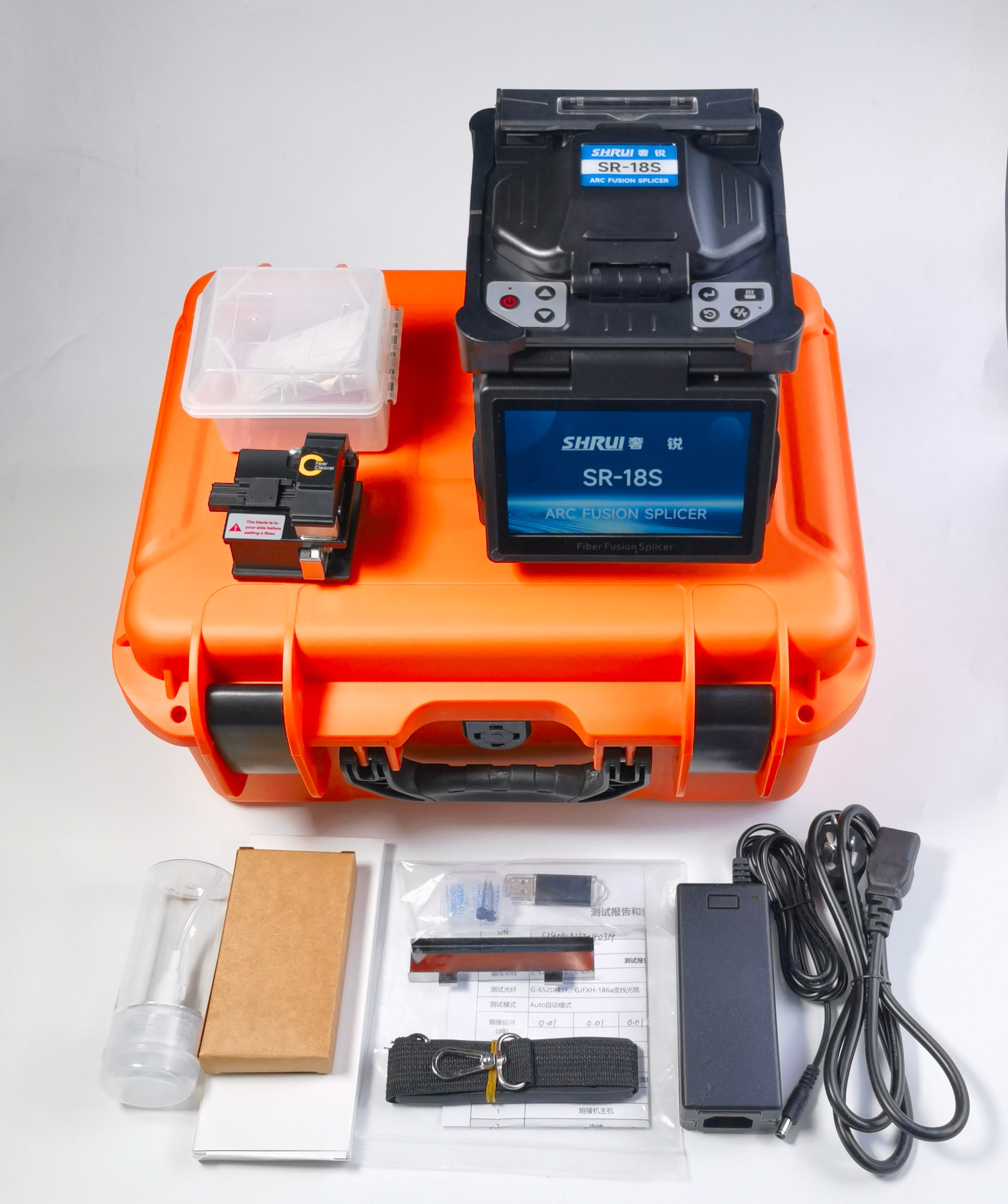

Included Accessories
