Description

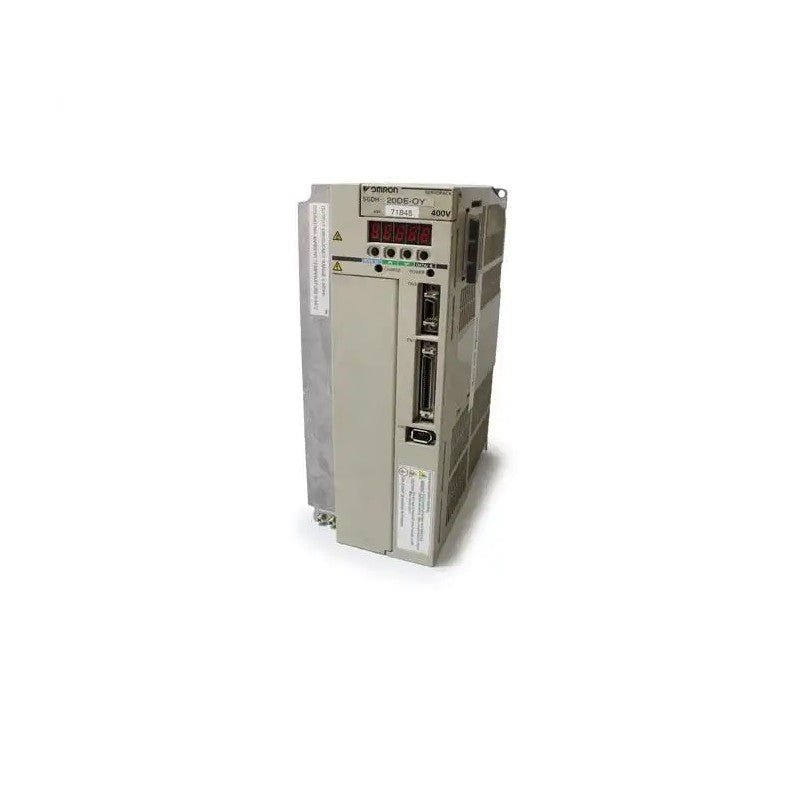

The Yaskawa SGDH-20DE-OY is a high-performance servo drive built to deliver precise control in demanding automation systems. It provides a robust 2 kW power output with three-phase input, ensuring accurate and consistent motion control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
SGDH-20DE-OY |
| Subcategory |
Servo Drive/Servo Control |
| Series |
SG Series |
| Power Rating |
2 kW |
| Input Voltage |
380-480 V AC |
| Output Current |
8.4 A |
| Horsepower |
2.682 HP |
| Input Current |
6 A |
| Weight |
1.69 kg |
| Input Phase |
3 Phase |
| Output Frequency |
0-300 Hz |
| Input Frequency |
50/60 Hz |
| Ambient Temperature |
0-55°C |
| Output Voltage |
0-480 V |
Information About SGDH-20DE-OY
The SGDH-20DE-OY is part of the SG series from Yaskawa, engineered for reliable operation in high-efficiency environments. It supports a wide input voltage range of 380–480 V AC at 50/60 Hz and delivers an output current of 8.4 A, translating to approximately 2.68 HP. This servo drive offers a flexible output frequency range from 0 to 300 Hz, allowing it to meet a broad range of motion control needs across various industrial applications.
Key Features:
- Powerful Output Capacity: Delivers 2 kW power with an output current of 8.4 A for high-precision control.
- Wide Voltage Compatibility: Operates on 3-phase 380–480 V AC input, suitable for global industrial systems.
- Flexible Output Frequency: Supports 0–300 Hz frequency range, ideal for dynamic speed and torque adjustments.
- High Efficiency and Compact Design: Combines high performance with a compact 1.69 kg form factor for space-constrained environments.
- Versatile Temperature Tolerance: Functions effectively in ambient temperatures from 0°C to 55°C, maintaining operational stability.
- Robust Horsepower Delivery: Rated at approximately 2.682 HP for demanding machinery.
- Low Input Current Draw: Requires just 6 A on input, ensuring energy efficiency while delivering strong output.
- Precise Voltage Matching: Capable of outputting up to 480 V AC, matching input for seamless performance.
- Reliable Industrial Integration: Designed to be compatible with Omron servos and automation frameworks.
- Solid Phase Input Support: Accepts three-phase input for balanced, vibration-free motor operation.
The SGDH-20DE-OY provides the performance and reliability needed for complex motion tasks. The unit's power efficiency, adaptable frequency range, and robust structure make it an excellent choice for advanced industrial automation.
