Description

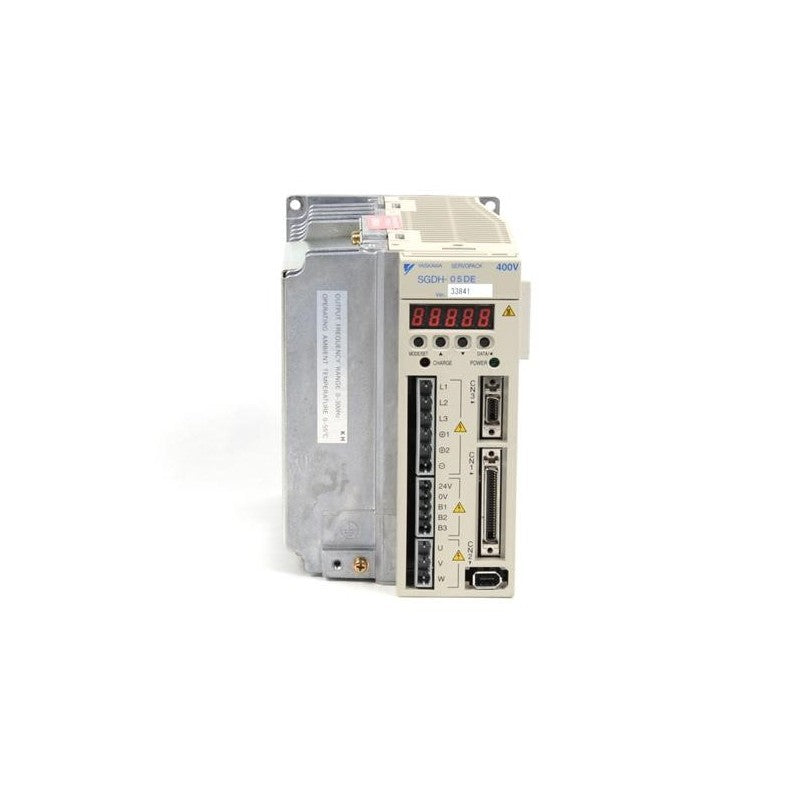

The Yaskawa SGDH-05DE-OY is a servo amplifier designed to provide precise motor control for industrial motion applications. It supports 3-phase 380–480 VAC input and delivers stable output performance for 0.5 kW servo motor systems operating at variable frequencies.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
Servo Drives & Amplifiers |
| Part Number |
SGDH-05DE-OY |
| Subcategory |
Servo Amplifiers |
| Rated Power |
0.5 kW (0.67 HP) |
| Input Voltage |
380–480 VAC |
| Input Phase |
3 Phase |
| Input Frequency |
50/60 Hz |
| Input Current |
2 A |
| Output Voltage |
0–480 VAC |
| Output Frequency |
0–300 Hz |
| Output Current |
1.9 A |
| Ambient Operating Temperature |
0 to 55 °C |
| Protection Rating |
IP1X |
| Cooling Method |
Forced Air |
| Mounting Type |
Panel Mount |
| Weight |
7.03 lbs |
Information About SGDH-05DE-OY
The SGDH-05DE-OY is part of Yaskawa’s Sigma series servo amplifier platform developed for high-precision motion control. It is engineered to regulate motor speed, torque, and position with consistent accuracy across a wide operating range. The amplifier supports high-voltage industrial power systems and integrates seamlessly with compatible Yaskawa servo motors. Its compact form factor and thermal performance support installation in industrial control cabinets.
Key Features
- 0.5 kW Servo Drive Capacity: Designed to control servo motors rated up to 0.5 kW with stable and responsive performance.
- High-Voltage Three-Phase Input: Supports 380–480 VAC 3-phase input for compatibility with industrial power infrastructures.
- Wide Output Frequency Range: Provides adjustable output from 0 to 300 Hz to support precise speed and motion control.
- Accurate Current Regulation: Delivers up to 1.9 A output current for smooth and controlled motor operation.
- Industrial Operating Temperature Range: Rated for continuous operation in ambient temperatures from 0 to 55 °C.
- Panel-Mount Design: Compact housing allows efficient integration into automation and motion control cabinets.
The SGDH-05DE-OY delivers the reliability and precision required for servo-controlled motion systems in industrial automation environments.
