Description

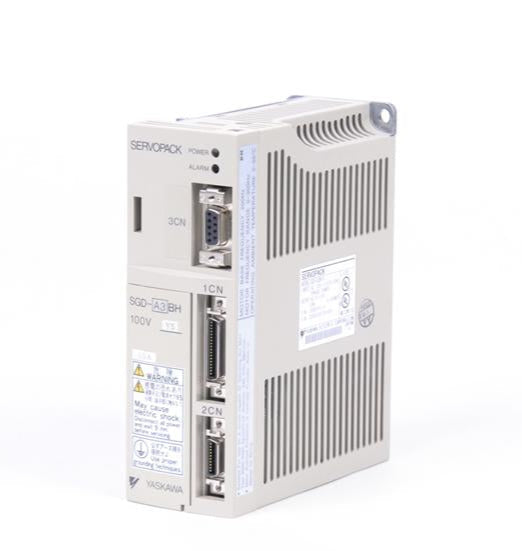

The SGD-A3BHY5 is a compact and efficient AC servopack developed by Yaskawa for high-precision motion control. It features advanced environmental resistance and supports both incremental and absolute encoder configurations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
SGD-A3BHY5 |
| Subcategory |
Servo Drive / Servo Control |
| Product Type |
AC Servo Drive (Servopack)
|
| Series |
SGD Series
|
| Voltage Class |
200 V Class (typical for this series)
|
| Encoder Compatibility |
Incremental and absolute encoders
|
| Special Functions |
Electronic Gear, Auto-Tuning, Speed Control
|
| Response Frequency |
High-speed (typically 400–600 Hz)
|
| Cooling Method |
Natural convection
|
| Housing Style |
Book-style compact housing
|
| Environmental Protection |
Varnish-coated PCB for dust/humidity resistance
|
| Mounting Type |
Panel mount or DIN-rail (depending on version)
|
| Operating Temperature |
0 to 55 °C
|
| Application Areas |
Robotics, CNC machines, packaging systems
|
| Weight |
6.00 lbs |
Information About SGD-A3BHY5
The SGD-A3BHY5 is part of Yaskawa’s SGD series of AC servopacks, designed to provide fast, stable, and highly accurate control in automation environments. It offers a volume that is approximately one-quarter the size of conventional models, allowing for space-saving installations in tight control cabinets. Engineered for use in CNC machinery, robotics, and compact production cells, it is well-suited for both standard and high-speed servo applications. Its robust design includes electronic gear functionality and protective varnish coating, making it reliable even under adverse environmental conditions.
Key Features:
- Electronic Gear Function: Allows flexible motion control with customizable gear ratios.
- Compact Design: Approximately 1/4 the volume of traditional servopacks for space-constrained setups.
- Environmental Resistance: Enhanced varnish coating protects internal circuitry from dust and humidity.
- Encoder Compatibility: Works with both incremental and absolute encoders for versatile integration.
- High-Speed Response: Designed for fast and stable performance under dynamic load changes.
- Stable Accuracy: Maintains consistent control accuracy even in challenging industrial conditions.
- Flexible Application: Ideal for machining centers, automated tools, and industrial robots.
- Easy Maintenance: Modular layout and clear I/O make replacement and diagnostics simple.
- Yaskawa Quality: Built on decades of motion control expertise for long-term reliability.
The SGD-A3BHY5 delivers powerful, compact, and precise servo control tailored for demanding motion environments.
