Description

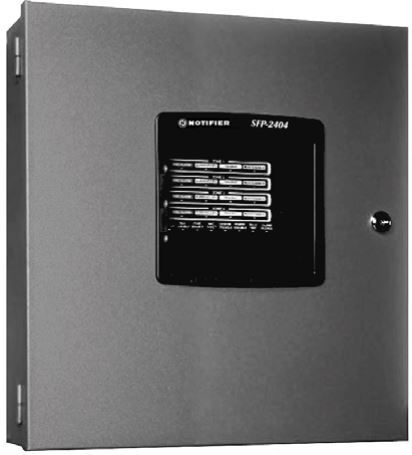

The Notifier SFP-2404 is a four-zone fire alarm control panel designed for small commercial and institutional applications. It provides reliable and cost-effective fire detection and signaling with built-in digital alarm communication technology. The panel’s intuitive interface and straightforward operation make it a robust and dependable solution for conventional fire alarm systems.
Technical Specifications
| Condition |
|
| Brand |
NOTIFIER |
| Category |
|
| Part Number |
SFP-2404 |
| Subcategory |
Fire Alarm Control Panels
|
| Zone Capacity |
|
| Expansion Capability |
Up to 8 zones with optional module
|
| Notification Appliance Circuits |
2 built-in NACs |
| NAC Rating |
2.5 A per circuit |
| Power Supply |
|
| Standby Batteries |
Up to 7.0 Ah |
| Operating Temperature |
0 to 49 °C (32 to 120 °F)
|
| Dimensions |
|
| Mounting |
|
| Weight |
16 lbs |
Information About SFP-2404
The SFP-2404 is a conventional fire alarm control panel that offers a flexible and scalable solution for fire protection. It features four Class B (Style B) initiating device circuits (IDCs), expandable to eight with an optional module. The panel is built with a durable enclosure for surface or semi-flush mounting. Its usage context is typically in small-scale environments such as office buildings, schools, and retail stores where a simple yet effective fire alarm system is required. The key technology includes a built-in digital communicator for transmitting system status to a central monitoring station, which is a critical feature for modern fire protection systems.
Key Features:
- Four Zone Capacity: Provides four Class B (Style B) Initiating Device Circuits (IDCs) for flexible zone configuration.
- Built-in Digital Communicator: Includes a DACT (Digital Alarm Communicator/Transmitter) for reporting to a Central Station.
- Dual NACs: Features two built-in Notification Appliance Circuits (NACs) rated at 2.5 Amps each.
- System Status Indicators: LED indicators for AC Power, Alarm, Trouble, Supervisory, and Signal Silence conditions.
- Trouble Reminders: Automatically repeats trouble signals every five hours, ensuring issues are not overlooked.
- Programmable Options: Allows for field programming of silence inhibit, auto signal silence, and other functions.
- Battery Backup: Supports an external 7.0 Ah battery for up to 60 hours of standby power.
The SFP-2404 delivers the reliability and precision required for foundational fire detection and communication.
