Description

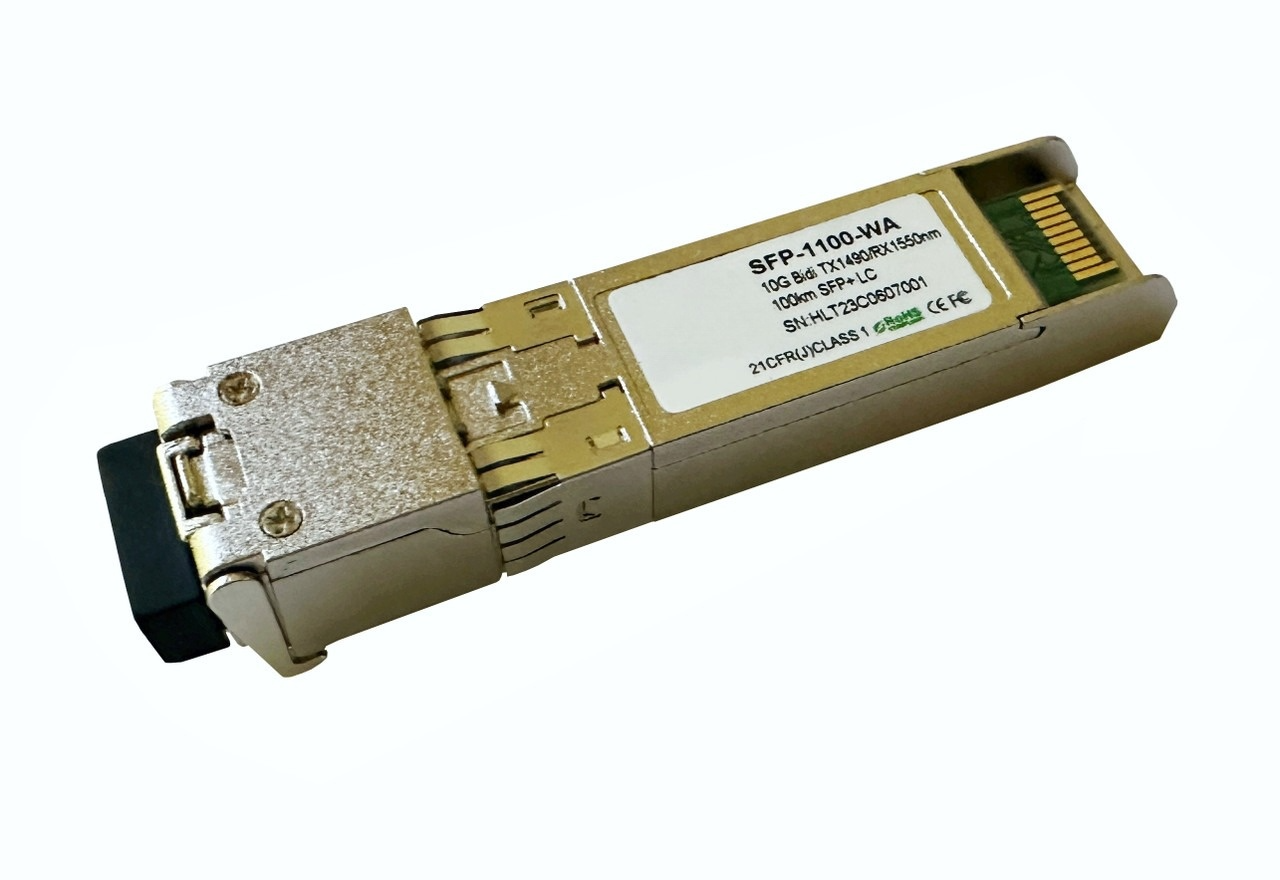

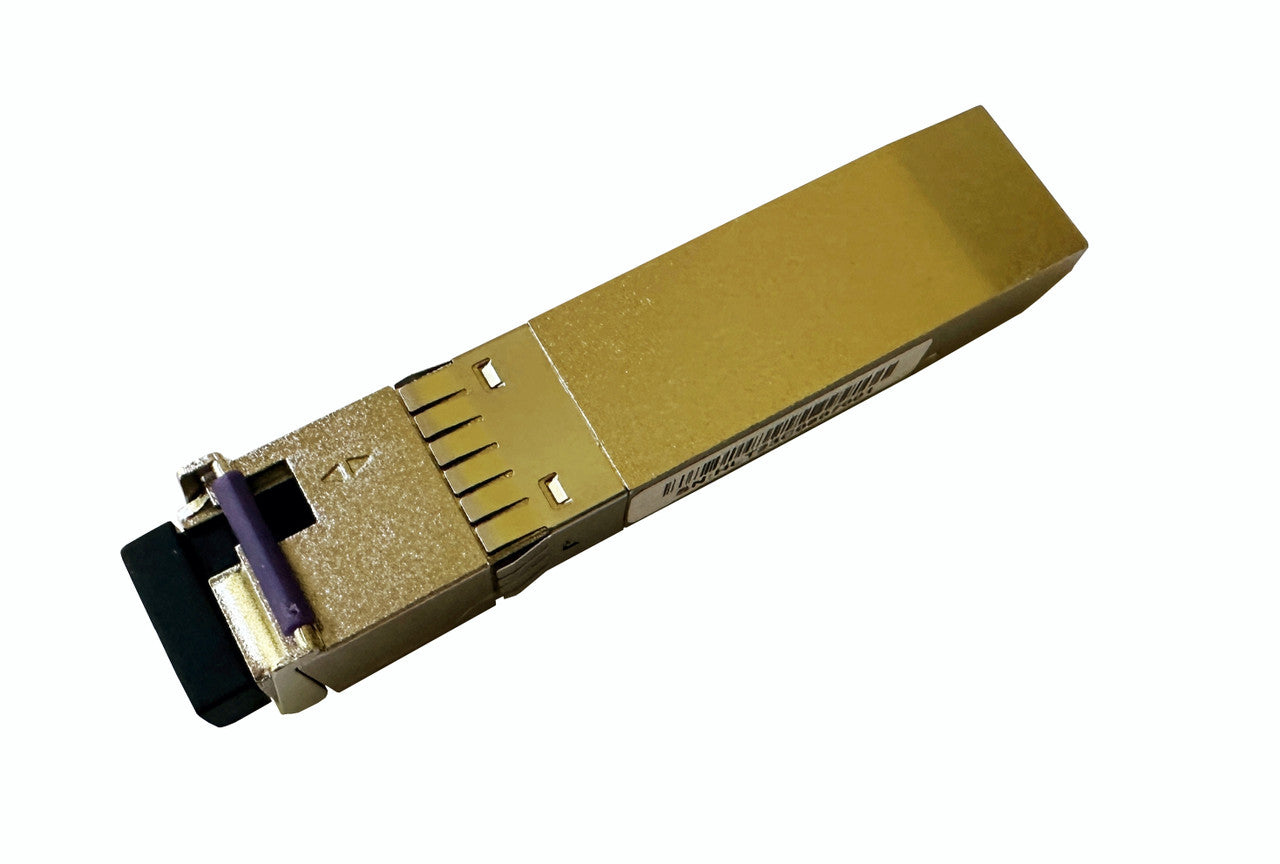

SFP-1100-WA Product description
The SFP-1100-WA is a BiDirectional single fiber strand 10G SFP+ optical module using Tx:1490nm and Rx:1550nm wavelengths and supporting links up to 100Km over SMF.
The transceiver supports all 10G rated speeds for Ethernet, SONET, SDH or Fibre Channel networks.
SFP-1100-WA must be paired with the SFP-1100-WB model to have an operational link.
The BiDirectional optical transceivers offer a great advantage of saving precious dark fiber and thus practically doubling the fiber capacity when compared with the traditional two strand modules.
The SFP-1100-WA and SFP-1100WB have been tested and found compatible with Cisco, ZyXEL, Edge-Core, D-Link, CTCUnion and many other switch vendors.
SFP-1100-WA 10G SFP+ single strand BiDirectional transceiver specifications
SFP-1100-WA 10G SFP+ single strand BiDirectional transceiver specifications
| Form factor | SFP |
| Speed | 9.95 to 10.3Gb/s |
| Optical connector | single LC |
| Operating distance | 100Km |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | Bi-Directional |
| Fiber type | Single-mode 9/125um, single strand |
| Wavelength | Tx:1490nm/Rx:1550nm |
| Digital Diagnostic | Yes (SFF-8472 compliant) |
Additional information on SFP-1100-WA transceiver:
PDF Datasheet

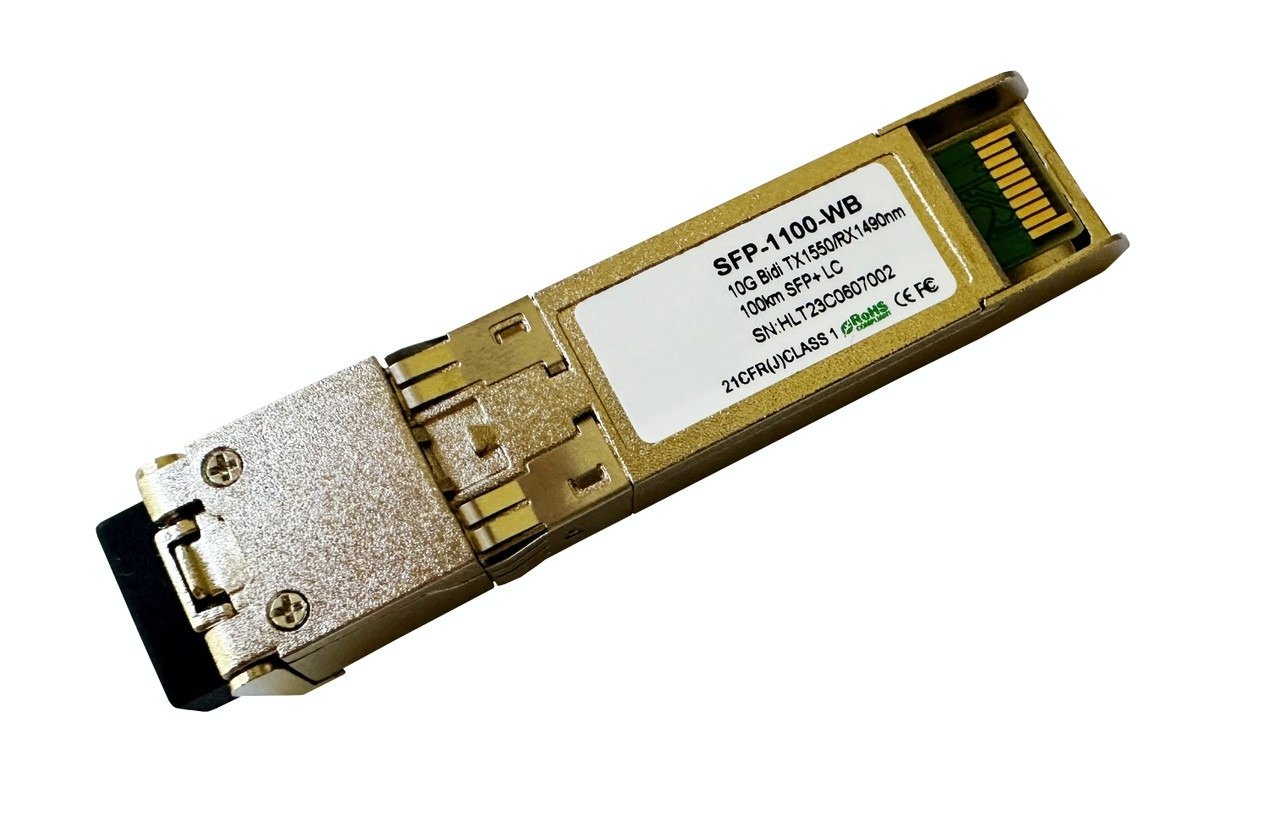

SFP-1100-WB Product description
The SFP-1100-WB is a BiDirectional single fiber strand 10G SFP+ optical module using Tx:1550nm and Rx:1490nm wavelengths and supporting links up to 100Km over SMF.
The transceiver supports all 10G rated speeds for Ethernet, SONET, SDH or Fibre Channel networks.
SFP-1100-WB must be paired with the SFP-1100-WA model to have an operational link.
The BiDirectional optical transceivers offer a great advantage of saving precious dark fiber and thus practically doubling the fiber capacity when compared with the traditional two strand modules.
The SFP-1100-WA and SFP-1100WB have been tested and found compatible with Cisco, ZyXEL, Edge-Core, D-Link, CTCUnion and many other switch vendors.
SFP-1100-WB 10G SFP+ single strand BiDirectional transceiver specifications
SFP-1100-WB 10G SFP+ single strand BiDirectional transceiver specifications
| Form factor | SFP |
| Speed | 9.95 to 10.3Gb/s |
| Optical connector | single LC |
| Operating distance | 100Km |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | Bi-Directional |
| Fiber type | Single-mode 9/125um, single strand |
| Wavelength | Tx:1550nm/Rx:1490nm |
| Digital Diagnostic | Yes (SFF-8472 compliant) |
Additional information on SFP-1100-WB transceiver:
PDF Datasheet
