- 480GB Capacity, SATA 6Gb/s, 3D TLC NAND flash, 2M hours MTBF
[/shortdesc]
[properties]
| Properties |
XA480LE10016 (SED Model (TCG Opal)) |
| Description |
480GB SATA SSD from Nytro 1361 series |
| Product Family |
Nytro 1361 SATA SSD Series |
| Product Type |
Internal SSD |
| Key Advantages of Nytro 1361 SATA SSD Series |
• Take advantage of a plug-and-play SATA 6 Gb/s interface for legacy environments
• Feel confident in a solution built to reliably endure 1 DWPD
• Boost the read/write performance of QoS and data centre applications
• Require less energy with low power consumption for 24×7 operations
• Rest easy with included power loss data protection
• Choose available SED models for advanced security*
*Self-Encrypting Drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support. |
[/properties] [specifications]
| Capacity |
480GB |
| SED Model (TCG Opal)* |
XA480LE10016 |
| Features |
| Interface |
SATA 6Gb/s |
| NAND Flash Type |
3D TLC |
| Form Factor
|
2.5 in × 7 mm |
| Performance |
| Sequential Read (MB/s) Sustained, 128 KB QD32 ** *** |
530 |
Sequential Write (MB/s) Sustained,
128 KB QD32** *** |
450 |
Random Read (IOPS) Sustained, 4 KB
QD32** *** |
94,000 |
Random Write (IOPS) Sustained, 4 KB
QD32 ** *** |
37,000 |
| Average Read Latency (μs), 4 KB QD1 ** *** |
130 |
Average Write Latency (μs), 4 KB
QD1** *** |
40 |
| Endurance/Reliability |
| Lifetime Endurance (Drive Writes per Day) |
1 |
| Total Bytes Written (TB) |
865 |
| Non-recoverable Read Errors per Bits Read |
1 per 10E17 |
| Mean Time Between Failures (MTBF, hours) |
2,000,000 |
Power Management |
| (+5V) Active Max Average Power (W)
|
(3.5) |
| Max Average Idle Power (W)
|
(1.5) |
| Environmental |
| Temperature, Operating Internal (°C) |
0°C – 70°C |
| Temperature, Non-operating (°C) |
(-40°C – 85°C) |
| Shock, Non-operating: 0.5 ms (Gs) |
1,500 |
| Physical |
| Height (mm/in, max)
|
7.1 mm/0.279 in |
| Width (mm/in, max)
|
70.1 mm/2.76 in |
| Depth (mm/in, max)
|
100.35 mm/3.95 in |
| Weight (lb/g)
|
57 g/0.126 lb |
| Carton Unit Quantity
|
10 |
| Notes: |
* Self-Encrypting Drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support.
** Performance data is based on testing under certain workload conditions and is subject to change.
*** System variations and HBA used will affect measured results.
|
[/specifications] [accesories] [/accesories]

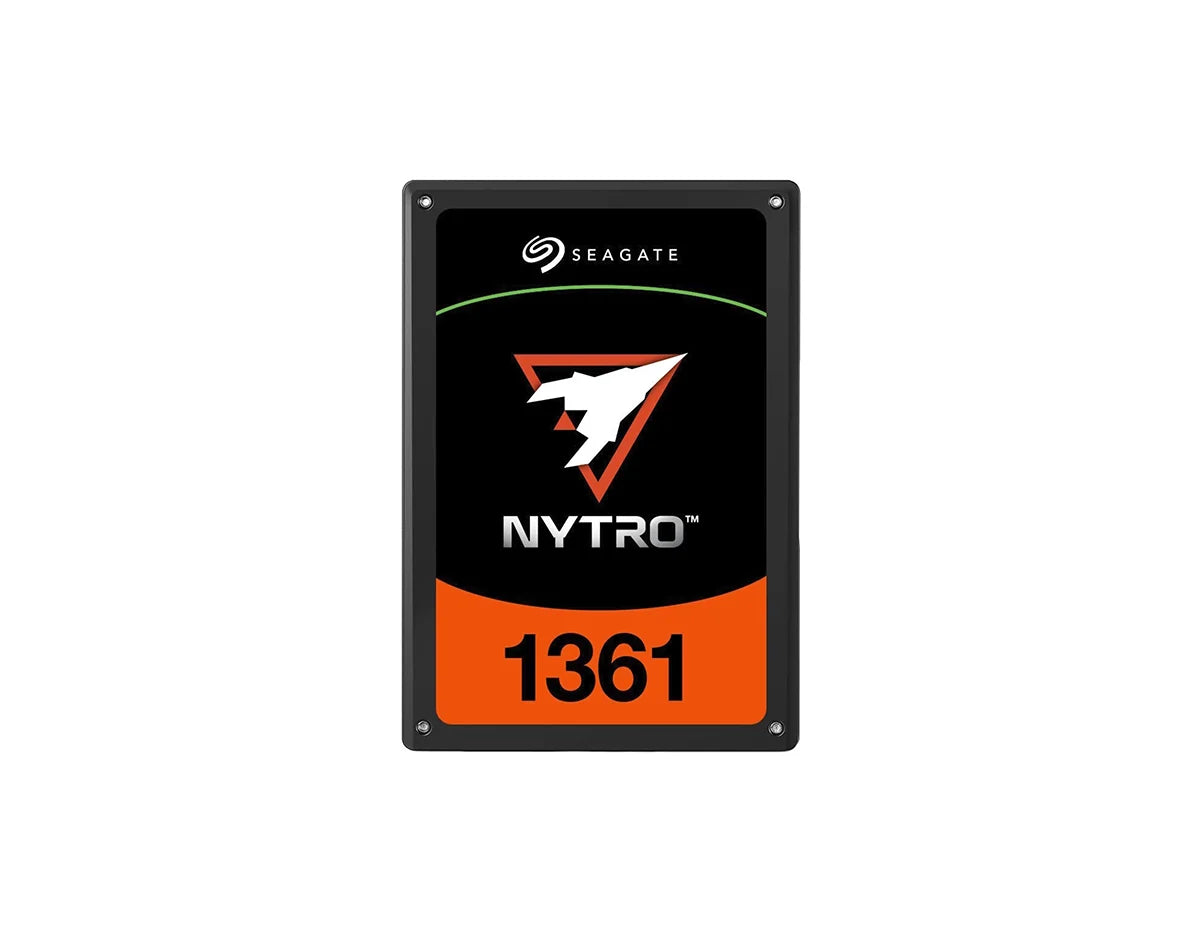

Seagate XA480LE10016 Nytro 1361 480GB SATA 6Gb/s 2.5inch internal SSD (SED Drive)
The Seagate XA480LE is a high-performance device designed for enterprise-level usage in data centers and cloud servers. It boasts a storage capacity of 480GB and features a SATA 6Gb/s interface, which contributes to improved QoS and user satisfaction. With an MTBF of 2 million hours, the product is highly reliable and can be used for extended periods. This product is equipped with an optional SED security feature for added security.
Quick Specs:
- 480GB capacity
- SATA 6Gb/s
- 3D TLC NAND Flash Type
- 2M hours MTBF
Please see the related tabs for the XA480LE10016 datasheet and compatible accessories.
