Description

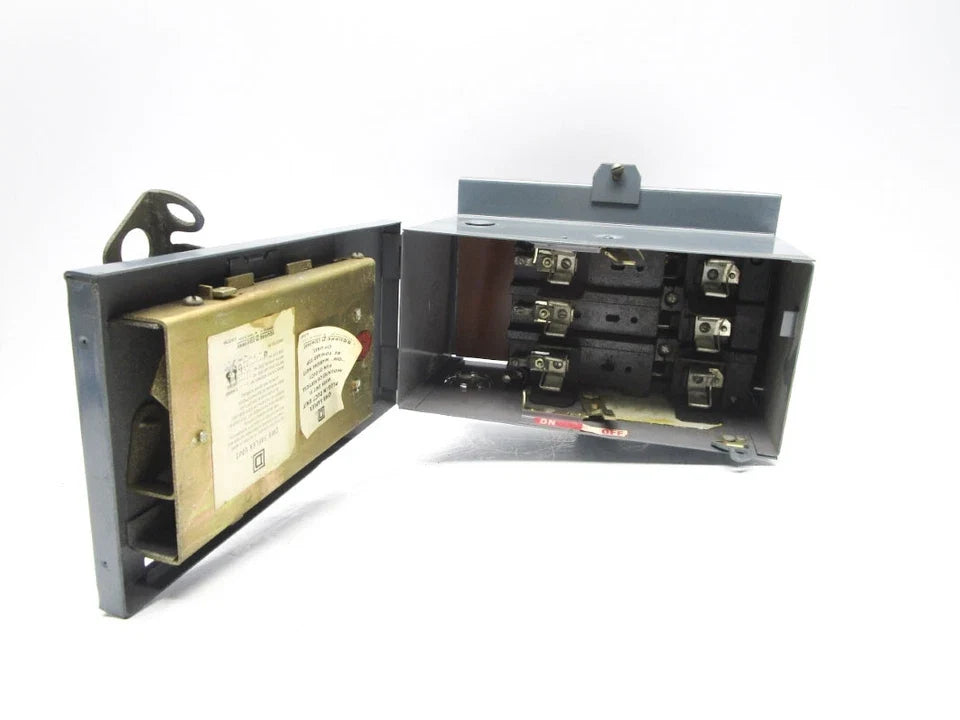

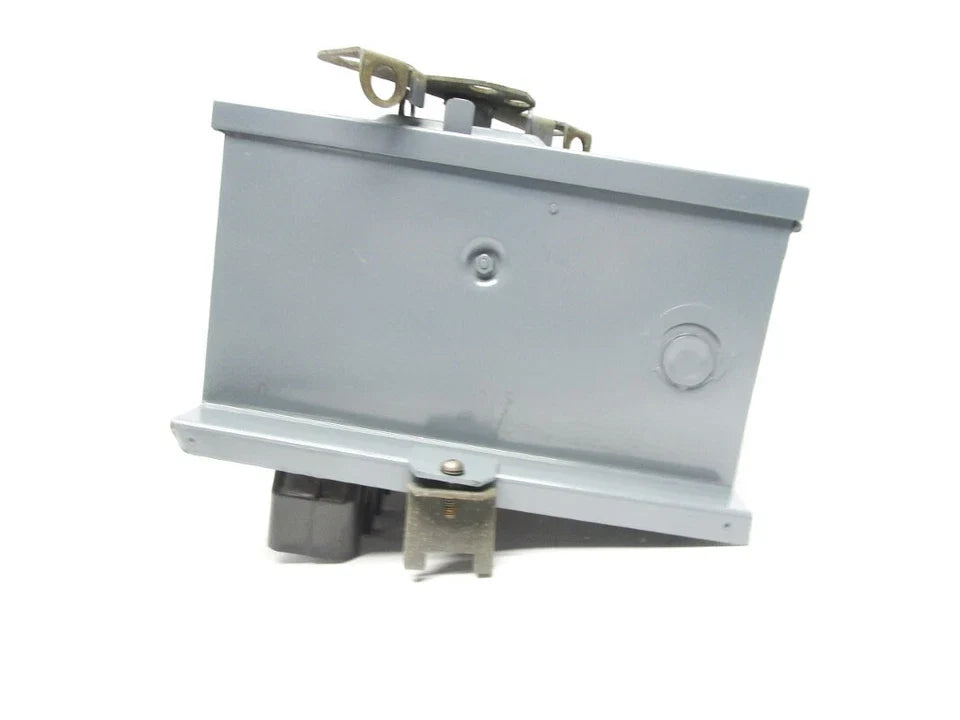

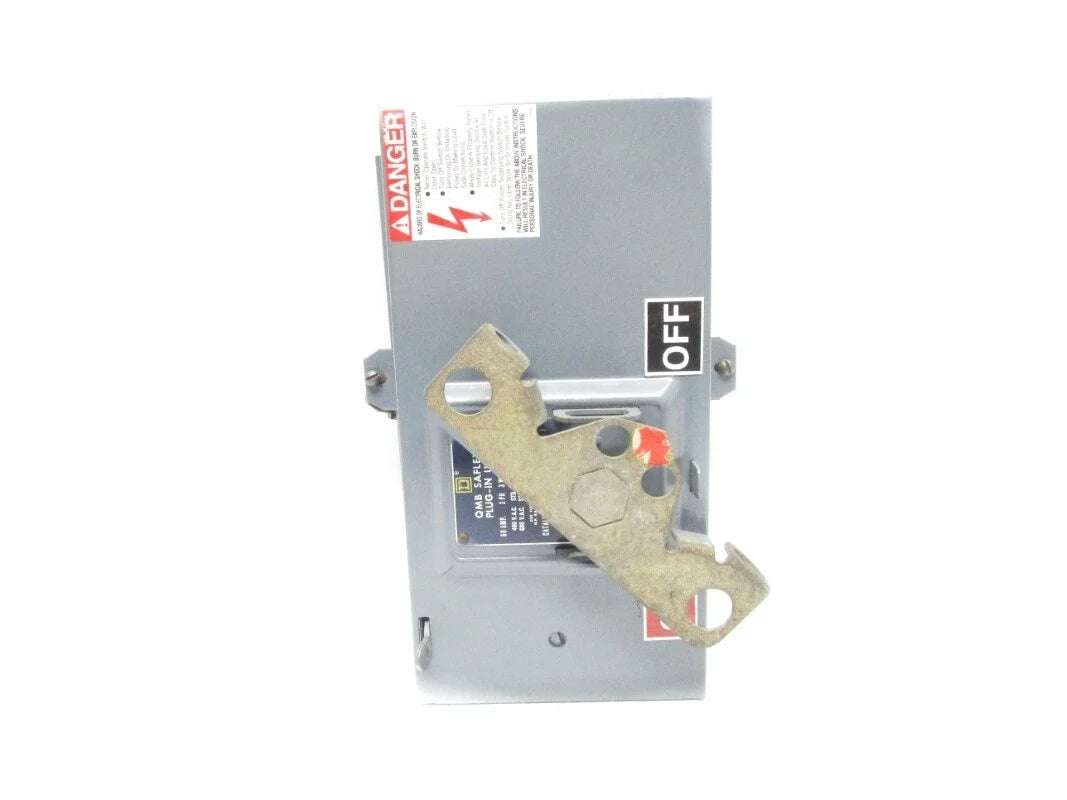

The Schneider Electric SD3606 is a fusible bus plug designed for power distribution and circuit protection in busway systems. Rated for 60 amps at 600 volts, it supports three-phase, three-wire electrical configurations in industrial and commercial installations. This Saflex Type SD bus plug is engineered to provide reliable load connection and short-circuit protection using Class R or Class H fuses.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Breaker |
| Part Number |
SD3606 |
| Subcategory |
Busway Switch/Plug |
| Product Type |
Bus plug |
| Series |
Saflex |
| Busway Type |
Type SD, round bar |
| Electrical Configuration |
3 phase, 3 wire |
| Rated Voltage |
600 V AC |
| Current Rating |
60 A |
| Interrupting Rating |
200 kA at 480 V |
| Protection Type |
Fusible |
| Fuse Class |
Class R / Class H |
| Application Use |
Busway power distribution |
| Manufacturer Status |
Discontinued by manufacturer |
| Weight |
10.00 lbs |
Information About SD3606
The SD3606 is part of the Schneider Electric Saflex Type SD busway accessory lineup, developed for use with round bar busway systems. It is built as a fusible bus plug that allows secure tap-off connections from busway runs to downstream loads. The unit supports three-phase power distribution and integrates fuse-based protection to handle high fault currents safely. Although discontinued by the manufacturer, it remains suitable for maintaining and servicing existing Saflex busway installations in industrial power systems.
Key Features:
- Fusible Bus Plug: Provides circuit protection using replaceable fuses within the busway system.
- Saflex Type SD Design: Engineered for compatibility with Saflex round bar busway systems.
- Three-Phase Configuration: Supports three-phase, three-wire electrical distribution.
- 600 Volt Rating: Suitable for high-voltage AC power applications.
- 60 Amp Capacity: Designed for moderate load tap-off requirements.
- High Interrupting Rating: Rated up to 200 kA at 480 V for fault current protection.
- Class R/H Fuse Support: Accepts Class R or Class H fuses for flexible protection options.
The SD3606 delivers the reliability and precision required for safe and dependable busway power distribution in industrial electrical systems.
