Full‑Motion+ Wall Mount for 46"–90" Flat‑Panel TVs (Up to 150 lbs)

The Full‑Motion+ TV Mount (VLF628) delivers exceptional flexibility so you can enjoy a great picture from virtually anywhere in the room. Designed for large flat‑panel TVs, this mount allows you to tilt, swivel, extend, and level your display without tools, making adjustments fast and effortless.

A low‑profile yet extendable design keeps cables concealed for a clean installation, while lateral shift allows the TV to slide side‑to‑side for precise wall positioning. A built‑in safety tab provides a secure connection you can hear when the TV clicks into place.

Key Features

• Full‑motion design enables tilt, swivel, extension, and leveling adjustments

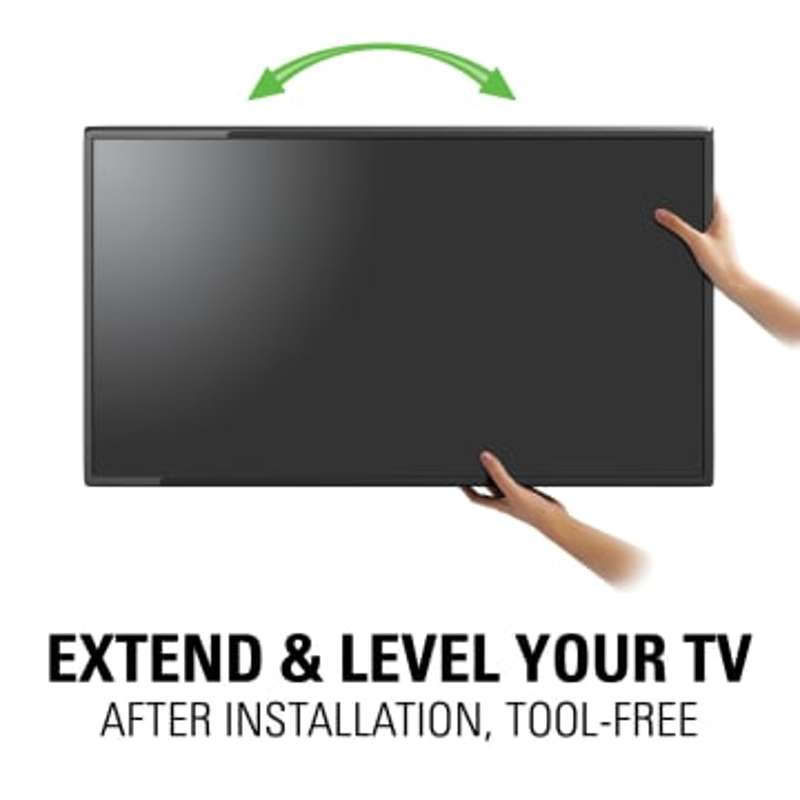

• Tool‑free adjustments for quick and easy positioning

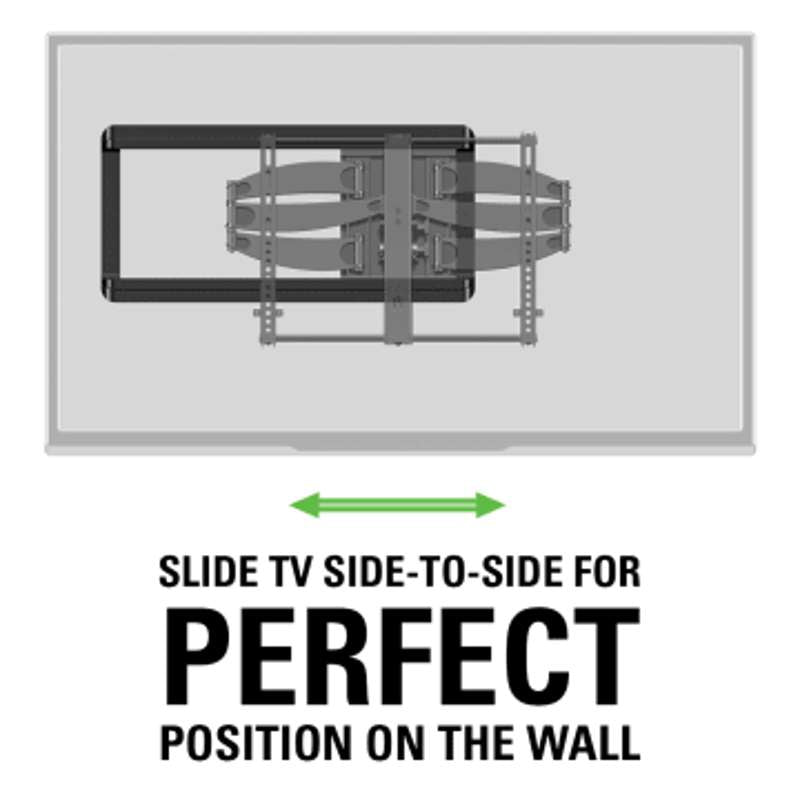

• Lateral shift allows side‑to‑side TV positioning after installation

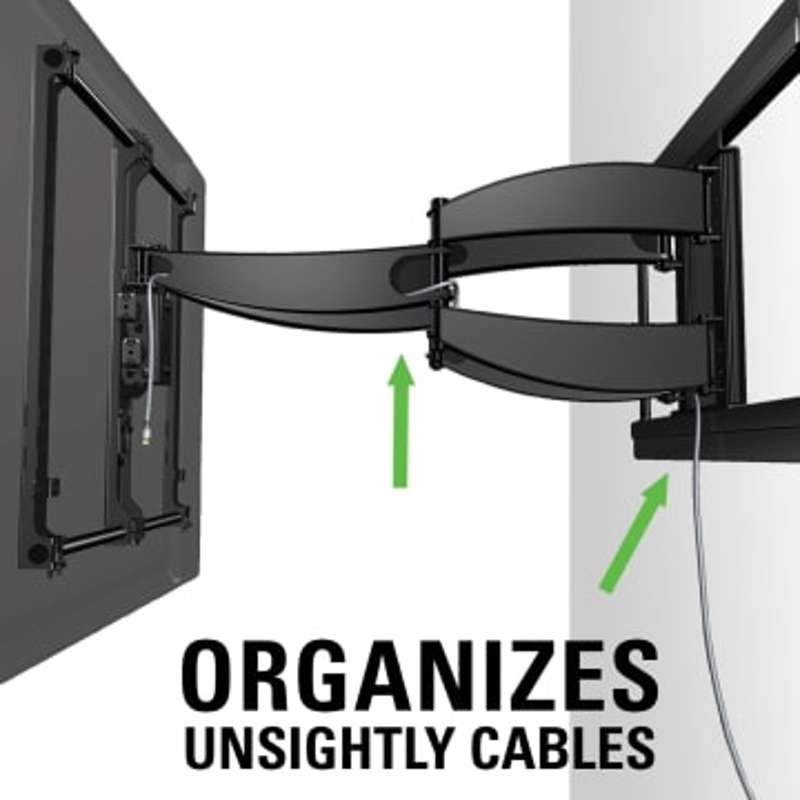

• Integrated cable management conceals unsightly wires
• Audible safety click confirms the TV is securely mounted
• Ideal for corner installations or flexible viewing angles
• Hardware included for installation
• Safety tested and UL Certified

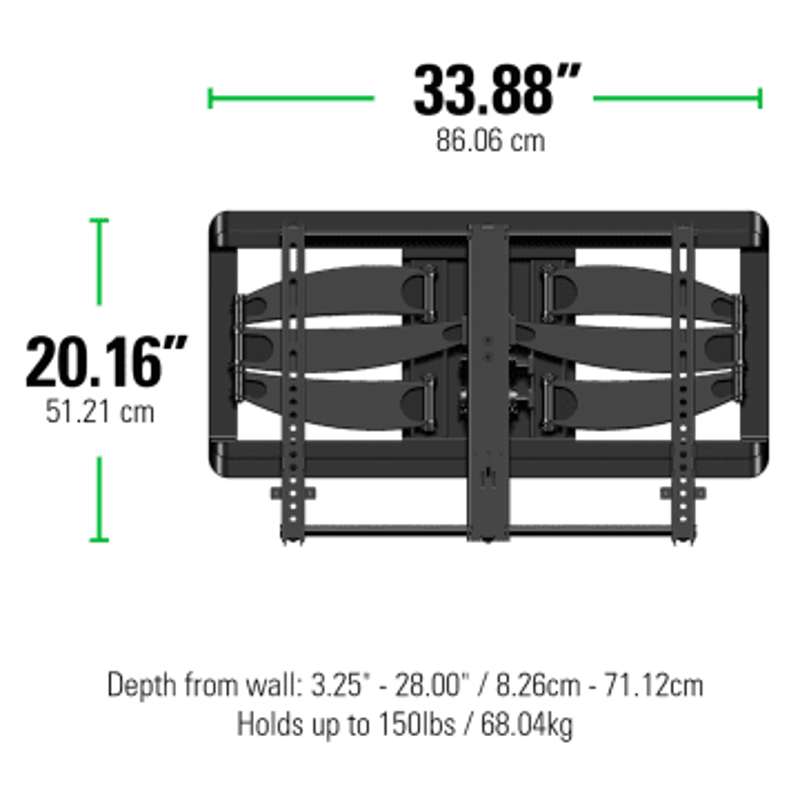

Dimensions & Measurements

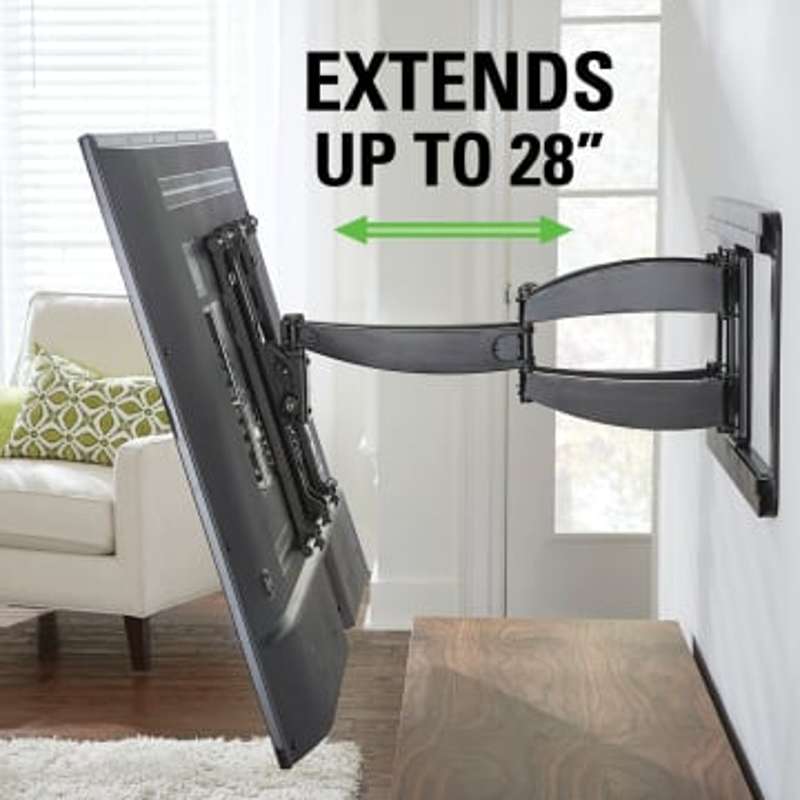

• Depth Range: 3.25"–28.00"
• Height: 20.16 in (51.2 cm)
• Width: 33.88 in (86.1 cm)
• Typical Screen Size: 46"–90" (117–228 cm)
• Maximum TV Weight: 150 lbs (68 kg)

Shipping Information

• Shipping Dimensions: 36.94" × 21.46" × 4.96" (938.3 × 545.1 × 126 mm)
• Shipping Weight: 54.78 lbs (24.9 kg)

Characteristics & Specifications

• Application: Wall

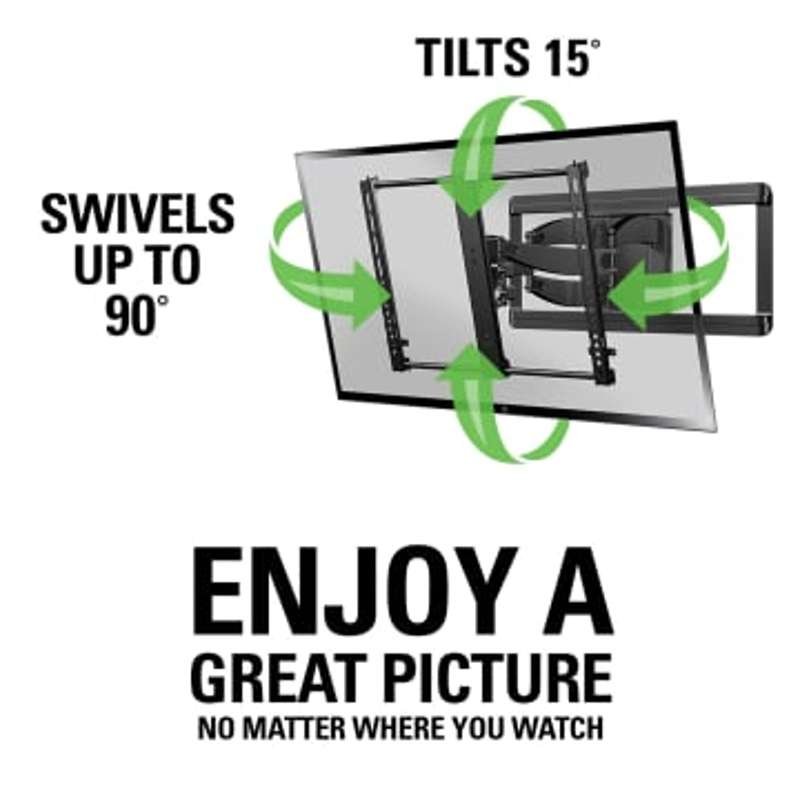

• Adjustability: Tilt, Swivel, Lateral Shift
• Swivel Range: +90° / −90°
• Tilt Range: +5° / −15°
• Level Adjustment: +2° / −2°

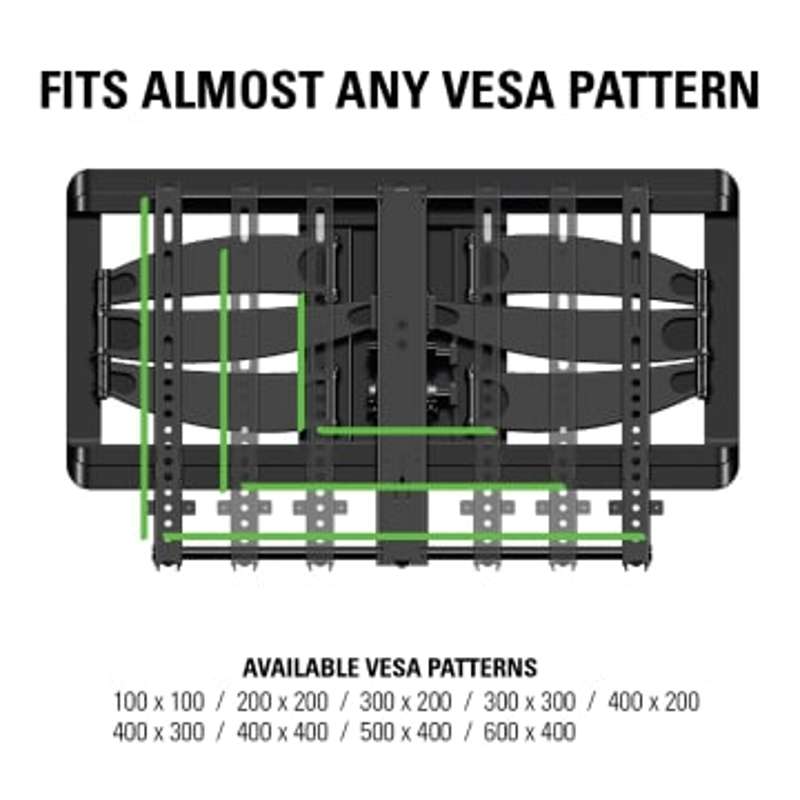

• Universal Mounting: Yes
• Color: Black

Installation Tools Required

• 1/2" Socket Wrench
• 3/8" Masonry Bit (Concrete Installations)
• Electric Drill
• Hammer
• Phillips Head Screwdriver
• Tape Measure
• Roll (measuring)

Additional Information

• UPC: 793795530981
