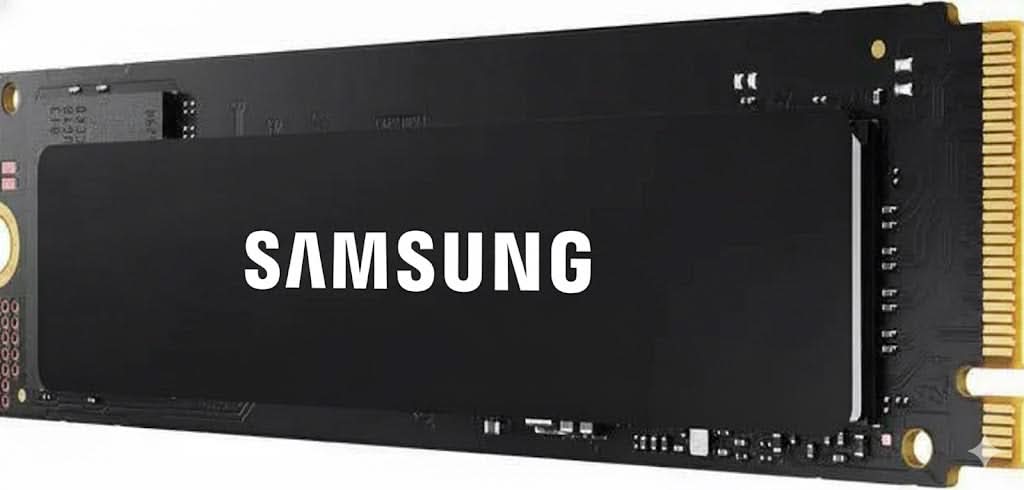

Samsung PM9E1 MZVLC1T0HFLU-00B07 1024GB M.2 PCI Express Gen.5 x4 Solid State Drive
Specifications
Model Number:MZVLC1T0HFLU-00B07
Brand:Samsung
Alt Part Number(s):MZVLC1T0HFLU-00B07
Product Type: Solid State Drive
Technical Description
Brand:Samsung
Model:MZVLC1T0HFLU-00B07
Capacity: 1.024 TB
Form Factor: M.2
Interface: PCI Express Gen.5 x4
Sequential Read: Up to 14,000 MB/s
Sequential Write: Up to 12,500 MB/s
Random Read: Up to 1,600K IOPS
Random Write: Up to 2,600K IOPS
Uncorrectable Bit Error Rate: < 1 sector per 10^15 bits read
MTBF: 1.5 Million Hours
Active (Typ, RMS):
• Read (3.3V): 8.92 W
• Write (3.3V): 8.21 W
• Idle (Typ.): 10 mW
• Sleep (Typ): 5 mW
Features:
• PCIe Gen.5 x4 Interface
• NVMe 2.0c Compliant
• TCG OPAL 2.0 for SED
• AES-XTS 256-bit Encryption
• Power Saving Modes (APST, L1.2)
• RoHS / Halogen Free
*
