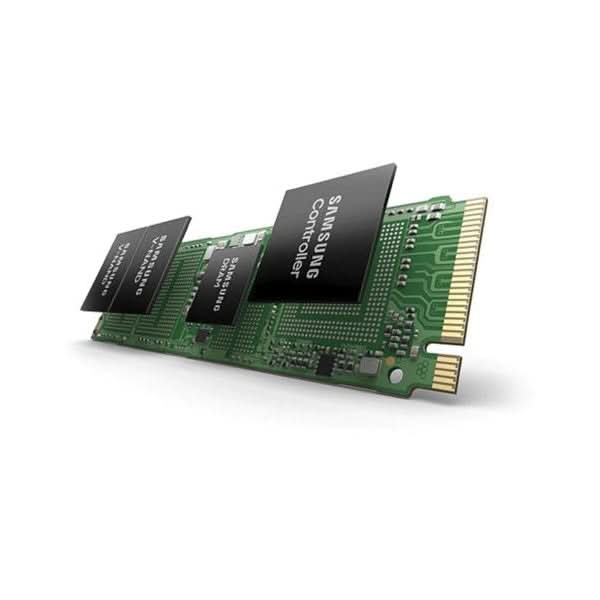

Samsung MZVLC512HFJD-00B07 512GB PCI Express Gen.5 x4 M.2 Solid State Drive
Product Specification:
|
| Manufacturer No: MZVLC512HFJD-00B07 |
| Package: BULK |
| Unit: 300 |
| List No: 00007 |
| Spec Order: N |
| Is Domestic Only: N |
Features
PCIe Gen.5 32Gb/s Interface, up to 4 Lanes
PCI Express Base Specification Rev. 5.0
PCI Express M.2 Specification Rev. 5.0
NVM ExpressTM specification Rev. 2.0c
Power Saving Modes:
Supporting APST
Supporting L1.2 Mode
Support Admin & NVM Command Set
RoHS / Halogen Free Compliant
Hardware based AES-XTS 256-bit Encryption Engine for SED
TCG OPAL (v2.0) Compliant for SED
Drive Configuration
Capacity: 512GB
Form Factor: M.2
Interface: PCI Express Gen.5 x4
Bytes per Sector: 512 Bytes
Performance Specifications
Data Transfer Rate (128KB)
Sequential Read: Up to 12,200 MB/s
Sequential Write: Up to 6,300 MB/s
Random Read: Up to 800 KIOPS
Random Write: Up to 1,360 KIOPS
Reliability Specifications
Uncorrectable Bit Error Rate: < 1 sector per 10^15 bits read
MTBF: 1.5 Million Hours
Environmental Specifications
Temperature:
Operating: 0°C to 70°C
Non-operating: -40°C to 85°C
Humidity (non-condensing): Non-operating: 5 ~ 95%
Linear Shock: Non-operating (0.5ms duration with 1/2 sine wave): 1500 Gpeak
Vibration: Non-operating (20 ~ 2,000 Hz, Sinusoidal): 20 G
Power Specifications
Supply Voltage / Tolerance: 3.3V +/- 5%
Active (Typ, RMS):
Read (3.3V): 8.8 W
Write (3.3V): 8.6 W
Idle (Typ.): 10 mW
Sleep (Typ): 5 mW
