Easily connects a SENT bus to any computer with an USB port

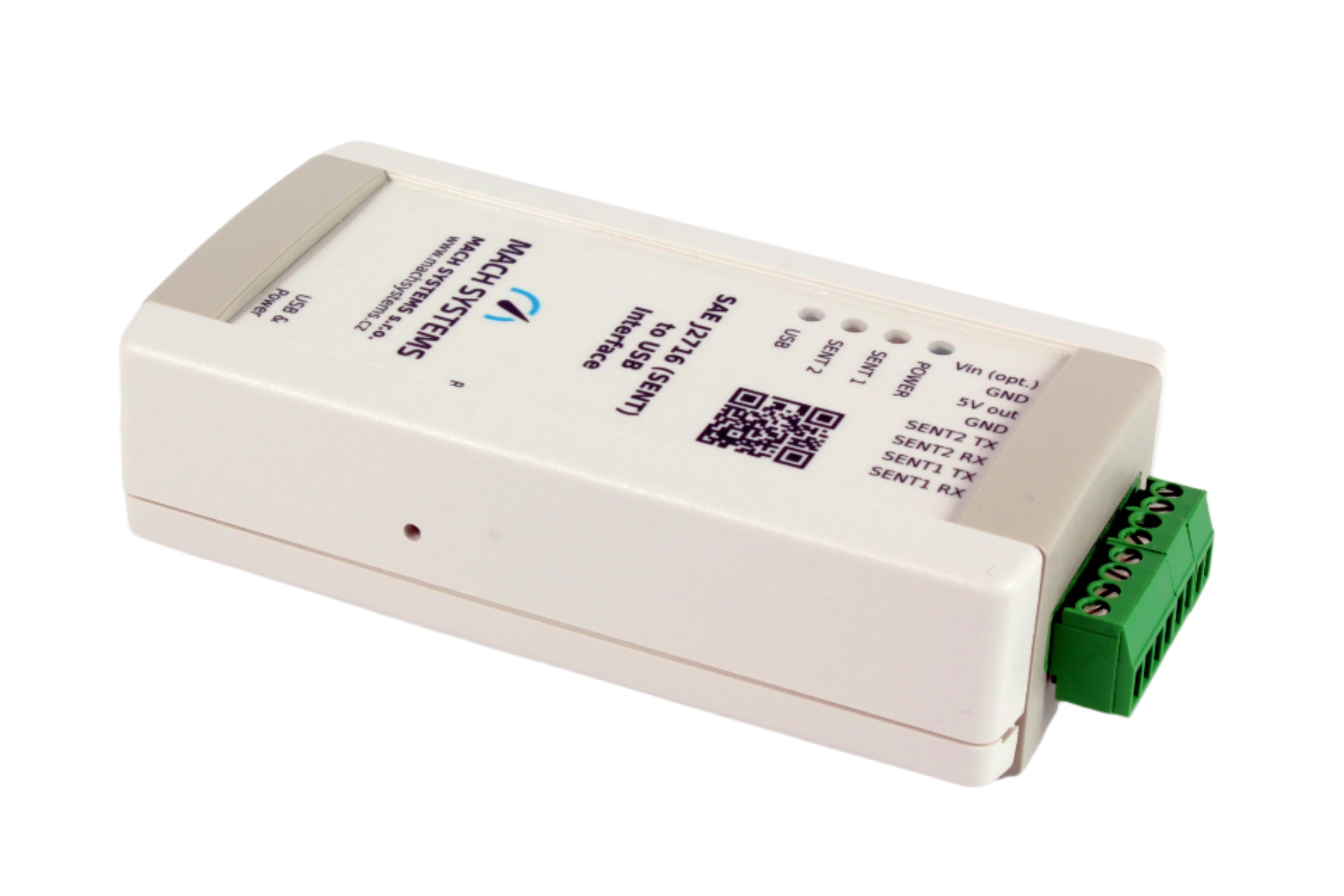

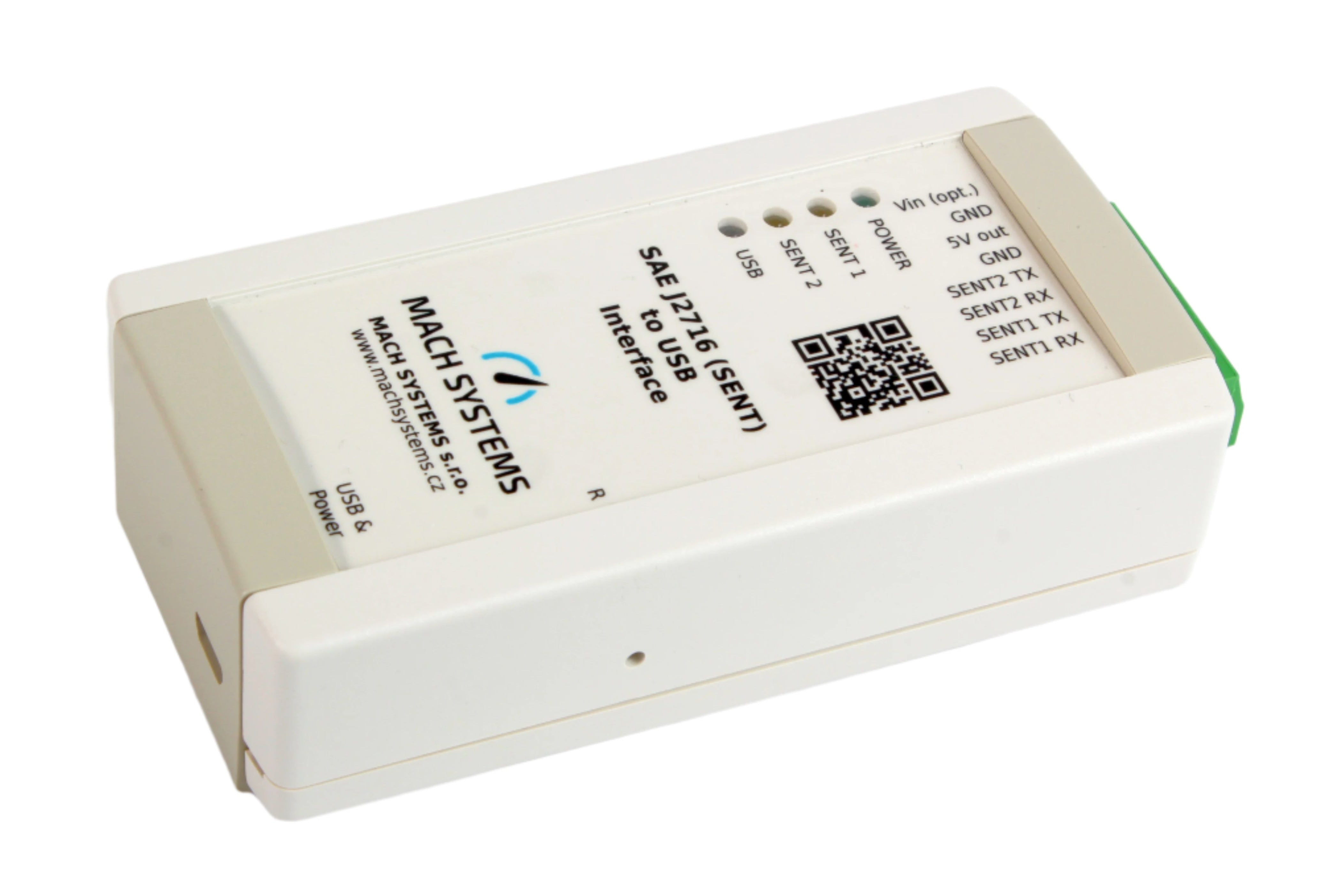

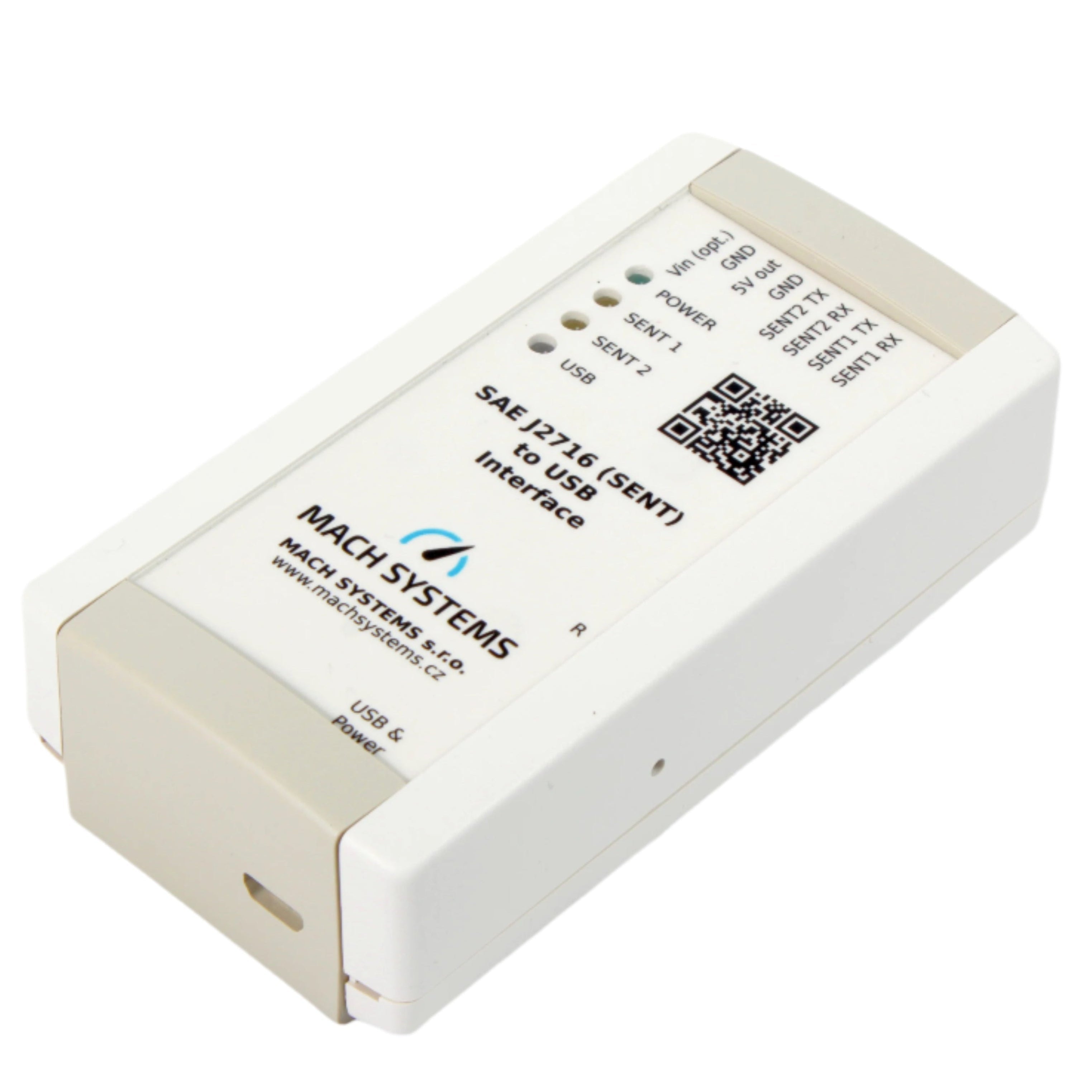

The SENT-USB is a two-channel SAE J2716 (Single Edge Nibble Transmission – SENT) to USB interface that easily connects a SENT bus to any computer with an USB port. The converter is powered from USB and features two bi-directional SENT channels and an USB virtual COM port. The device comes with a free-of-charge PC application for SENT communication analysis and simulation. An open communication protocol over the virtual serial port enables the user to integrate the interface into an existing system.
The device offers a communication protocol over its USB virtual COM port (VCP) so that the user can easily integrate the device into an existing system, such as test benches and HiL rigs. The protocol enables the user to configure the device’s parameters as well as transmit and receive SENT Fast and Slow messages. A CRC fault injection into both Fast and Slow messages is also possible.
Free-of-charge “SENT Gateway Analyzer” PC application for configuration, reception, transmission and logging.
