Description

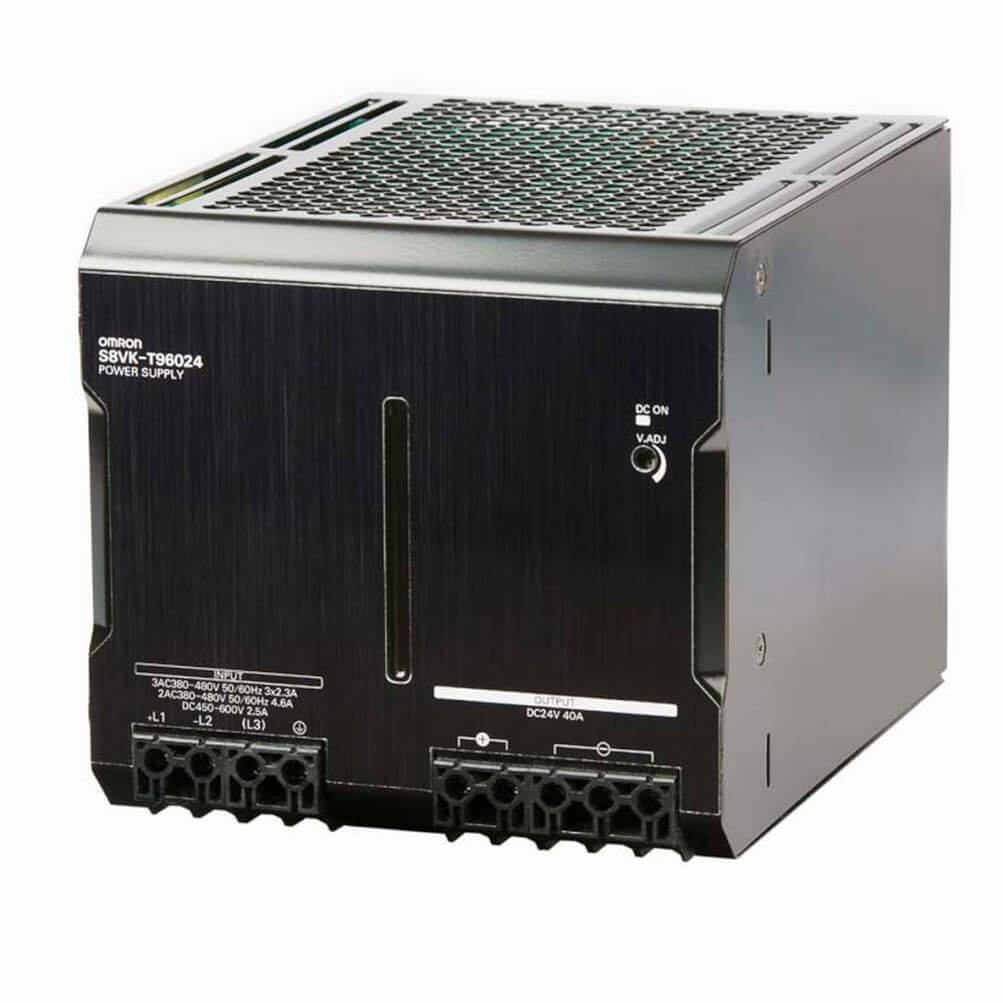

The Omron S8VK-T96024 is a high-capacity AC-DC power supply designed to convert three-phase AC input into a stable 24 VDC output for industrial automation systems. It delivers up to 40 A of output current, supporting high-load control and automation equipment. This power supply is intended for panel-mounted applications requiring reliable and efficient DC power distribution.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron Automation and Safety |
| Category |
Industrial Automation |
| Part Number |
S8VK-T96024 |
| Subcategory |
Power Supplies |
| Product Type |
AC-DC power supply |
| Series |
S8VK-T (960W) |
| Input Voltage |
320–576 VAC (3-phase) |
| Output Voltage |
24 VDC |
| Output Current |
40 A |
| Output Power |
960 W |
| Efficiency |
Up to 92% |
| Isolation Voltage |
3 kV |
| Number of Outputs |
1 |
| Features |
Adjustable output, load sharing |
| Degree of Protection |
IP20 |
| Operating Temperature |
-40°C to 70°C (with derating) |
| Dimensions |
7.09 × 3.74 × 4.92 in (180 × 95 × 125 mm) |
| Approvals |
CE, TUV, UL |
| Weight |
Approx. 6.5 lb (2.95 kg) |
Information About S8VK-T96024
The S8VK-T96024 is part of Omron Automation and Safety’s S8VK-T Series, engineered for high-power industrial and commercial automation environments. It operates on a wide-range three-phase AC input and provides a single regulated DC output with high efficiency. The unit supports adjustable output voltage and load sharing to enable parallel operation in high-demand systems. It is commonly used in control panels, manufacturing equipment, and ITE applications where continuous, high-current 24 VDC power is required.
Key Features:
- High-Power DC Output: Provides 24 VDC at up to 40 A for demanding automation loads.
- Three-Phase AC Input: Accepts 320–576 VAC (3-phase) for industrial power systems.
- High Efficiency Operation: Rated up to 92% efficiency to reduce heat and energy loss.
- Load Sharing Capability: Supports parallel operation for scalable power configurations.
- Adjustable Output Voltage: Enables fine-tuning to meet system voltage requirements.
- Industrial Protection Rating: IP20 design suitable for enclosed control panel installation.
- Wide Temperature Range: Operates from -40°C to 70°C with appropriate derating.
The S8VK-T96024 delivers the reliability and precision required for high-current DC power supply in industrial automation systems.
