Description

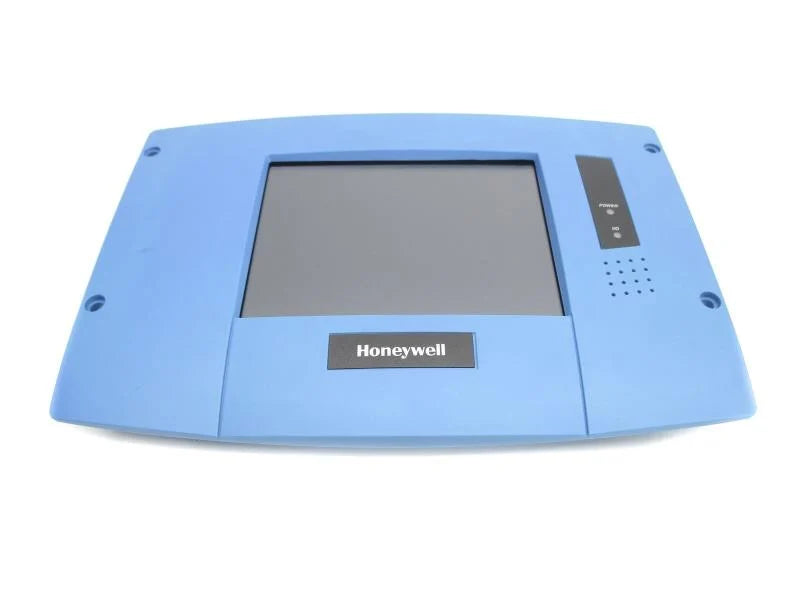

The S7999B1000 is a compact touch screen operator interface designed for local monitoring and configuration of boiler control systems. It provides access to multi-system configurations with communication via RS-485 Modbus or Ethernet.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
S7999B1000 |
| Subcategory |
Operator Interface |
| Display |
3.5 in. x 4.6 in. color touch screen |
| Mounting Type |
Flush Mount |
| Communication Ports |
2x RS-485 |
| Protocol Support |
Modbus RTU |
| Max Number of Monitored Controls |
Up to 99 |
| Input Voltage |
+12 VDC |
| Current Drain |
Max 500 mA |
| Power Consumption |
25 Watts |
| Operating Temperature |
14°F to 122°F (–10°C to 50°C) |
| Storage Temperature |
–13°F to 155°F (–25°C to 60°C) |
| Weight |
3.31 lbs (1.5 kg) |
| FCC Compliance |
FCC Part 15, Class A |
| Status |
Discontinued by Manufacturer |
Information About S7999B1000

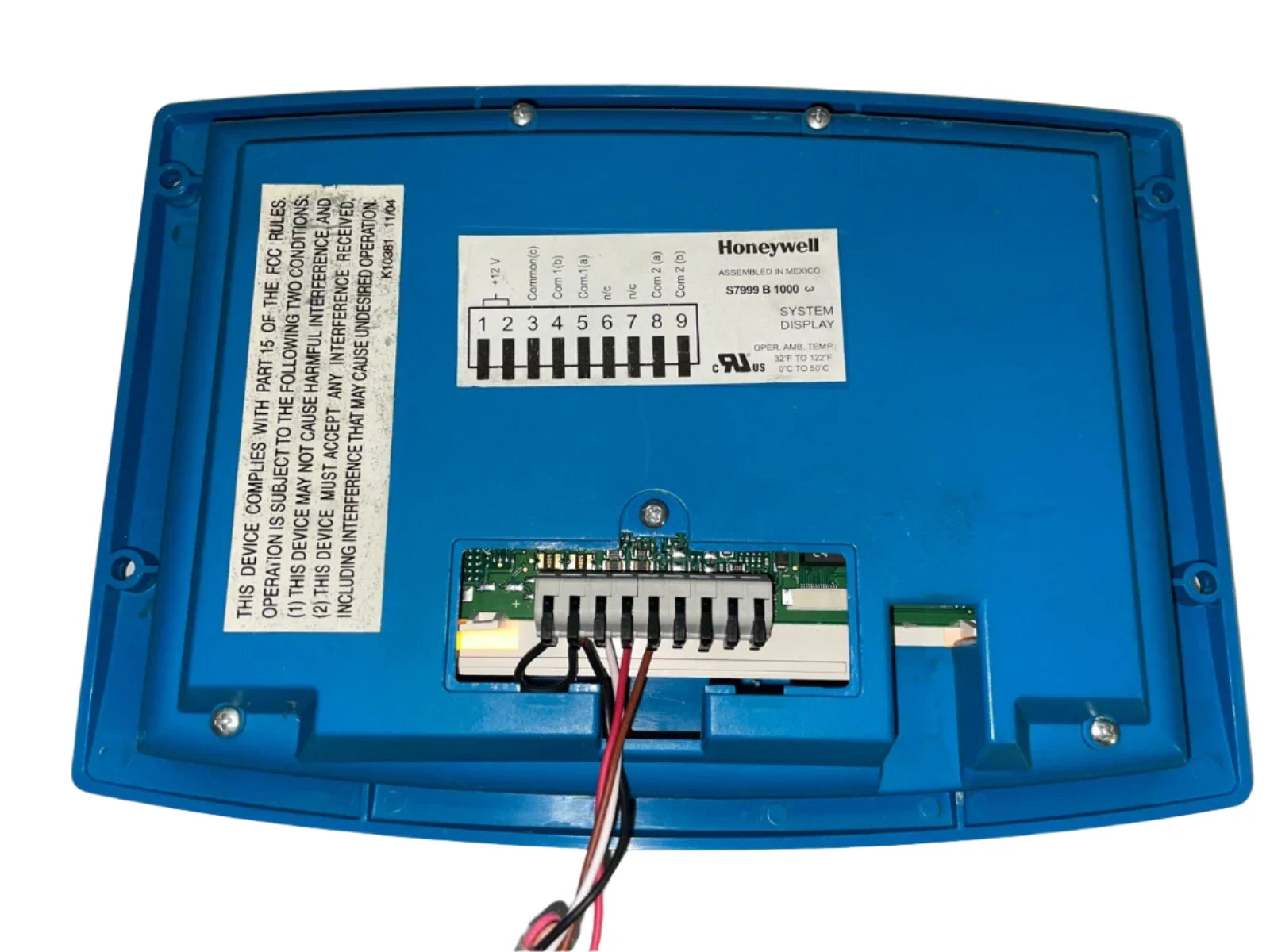

The S7999B1000 is a user interface module from Honeywell, part of the ControLinks series, specifically engineered to work with R7999 controllers in combustion control systems. It supports flush mounting and includes a 3.5 x 4.6-inch color touch screen for intuitive local control. The device features two RS485 ports and supports Modbus communications for monitoring up to 99 controls. Additionally, it allows EEPROM backup/restore and programmable annunciator terminal naming for enhanced diagnostics and serviceability.
Key Features:
- Color Touch Screen: 3.5 x 4.6-inch display for user-friendly operation and real-time data visualization.
- Dual RS485 Ports: Two communication ports support networking and connectivity with multiple controls.
- Modbus Monitoring: Enables simultaneous monitoring of up to 99 devices through Modbus protocol.
- EEPROM Support: Allows backup and restoration of configuration data from R7999 ControLinks.
- Custom Annunciator Labels: Programmable terminal naming enhances identification and event diagnostics.
- Environmental Resilience: Operates in ambient conditions from -10°C to 50°C, suitable for control room settings.
- Screen Management: Includes screen saver, contrast, and volume control for user comfort and screen longevity.
- Flush Mounting: Streamlined installation in panels or cabinets for a professional finish.
The S7999B1000 delivers the reliability and precision required for industrial boiler monitoring and configuration.
