Overview

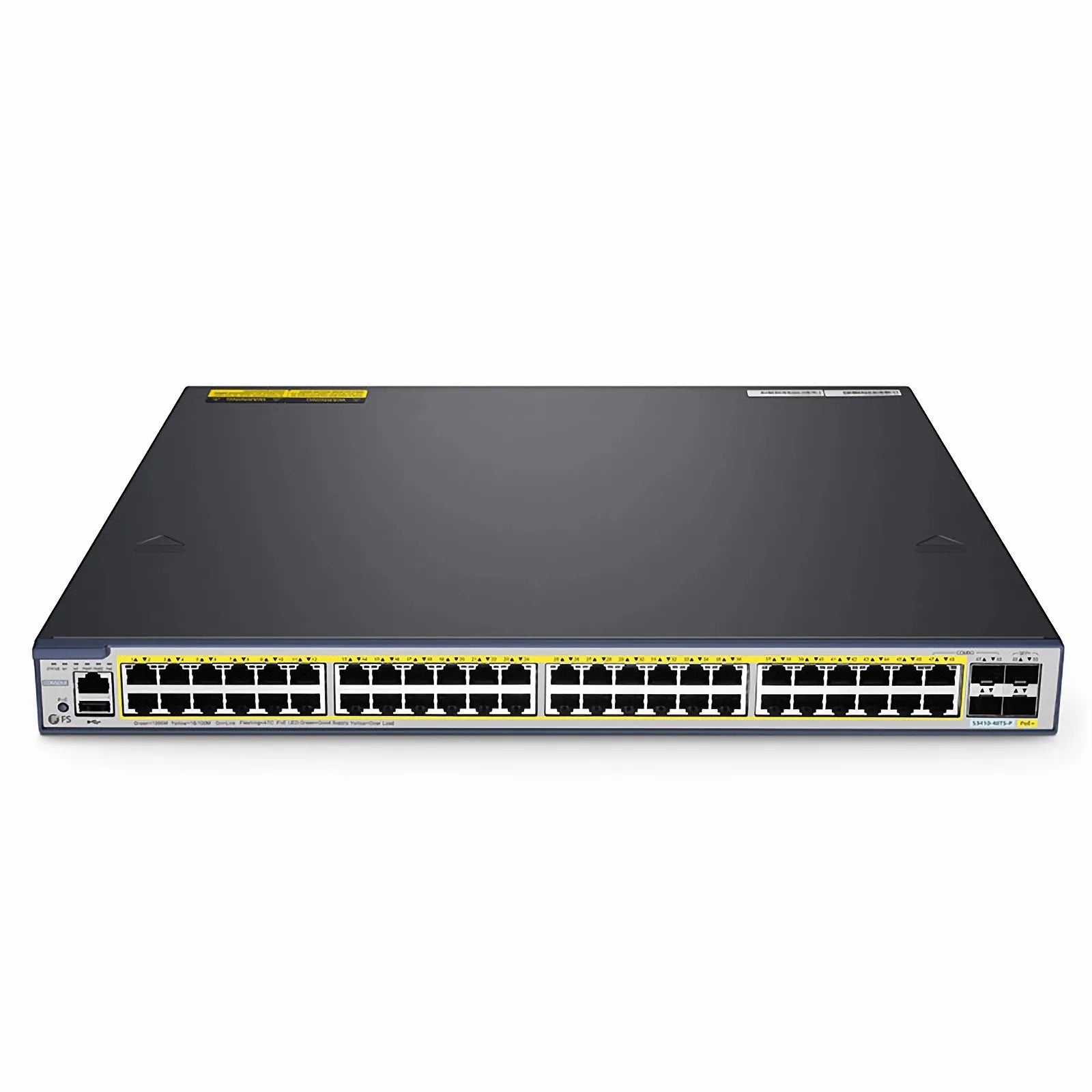

The S3410-48TS-P is a managed L2+ PoE+ switch designed for campus, SMB, and enterprise network environments. It features 48 x 10/100/1000BASE-T RJ45 ports that support the IEEE 802.3af/at PoE+ standard, providing up to 30W per port with a total power budget of 740W. The device includes 2 x 1G RJ45/SFP combo ports and 2 x 1/10Gb SFP+ uplinks for flexible network connectivity. The switch is powered by the PicOS® network operating system, offering a modular architecture and features such as MLAG, Voice VLAN, OSPF, and sFlow. It utilizes the Broadcom BCM56150 switch chip and an ARM A9 single-core CPU for packet processing.

Key Features

• 740W Total PoE Power Budget: Supports high-density deployment of power-over-ethernet devices, such as Wi-Fi 6 access points and security cameras, from a single rack unit.
• Dual Hot-Swappable Power Supplies: Equipped with a 1+1 redundant AC power supply configuration to ensure high availability and continuous operation during power module maintenance.
• Broadcom BCM56150 Switching Chip: Provides a switching capacity of 88 Gbps unidirectional (176 Gbps bidirectional) to handle high-traffic volume in enterprise LAN environments.
• Multi-Chassis Link Aggregation (MLAG): Enables device-level redundancy by allowing ports on two separate switches to act as a single logical link, improving network link resilience.
• AmpCon-Campus Integration: Allows for automated lifecycle management, including Zero Touch Provisioning (ZTP), topology auto-discovery, and centralized configuration deployment.
• Advanced Traffic Control: Implements eight priority queues per port to facilitate Quality of Service (QoS) and minimize packet loss and latency for sensitive data flows.

Technical Specifications
