[shortdesc]
- 1.25Gbps data rate
- 20km range
- Single LC connectors
- Wavelengths of 1310nm and 1550nm
- Compatible with MikroTik devices
[/shortdesc]
[properties]
| Product Name |
MikroTik S-3553LC20D |
| Product Description |
1.25G Single Mode optical SFP transceiver with LC connector, T1310nm/R1550nm, supporting DDM for connections up to 20km |
| Product Type |
Transceiver |
| Connector |
Single LC UPC |
| Data Rate |
1.25 Gbps |
| Distance |
20 km |
| Format |
SFP |
| Mode |
Single Mode (SM) |
| Tested Ambient Temperature |
-40°C to +70°C |
| Wavelength |
1310nm / 1550nm |
| Compatible Devices |
MikroTik devices |
| Max Power Consumption |
1W |
[/properties]
[specifications]
| Optical Output Power |
-3 to +3 dBm |
| Receiver Sensitivity |
-21 dBm |
| DDM Support |
Yes |
| Fiber Type |
Single Mode |
| Transmission Rate |
1.25 Gbps |
| Compliance |
CE, FCC, RoHS |
| Dimensions |
0.5 x 0.55 x 2.18 inches (13 x 14 x 55.5 mm) |
| Weight |
0.04 lbs (20 g) |
| Certifications |
TUV, UL |
| Operating Humidity |
5% to 85% non-condensing |
[/specifications]

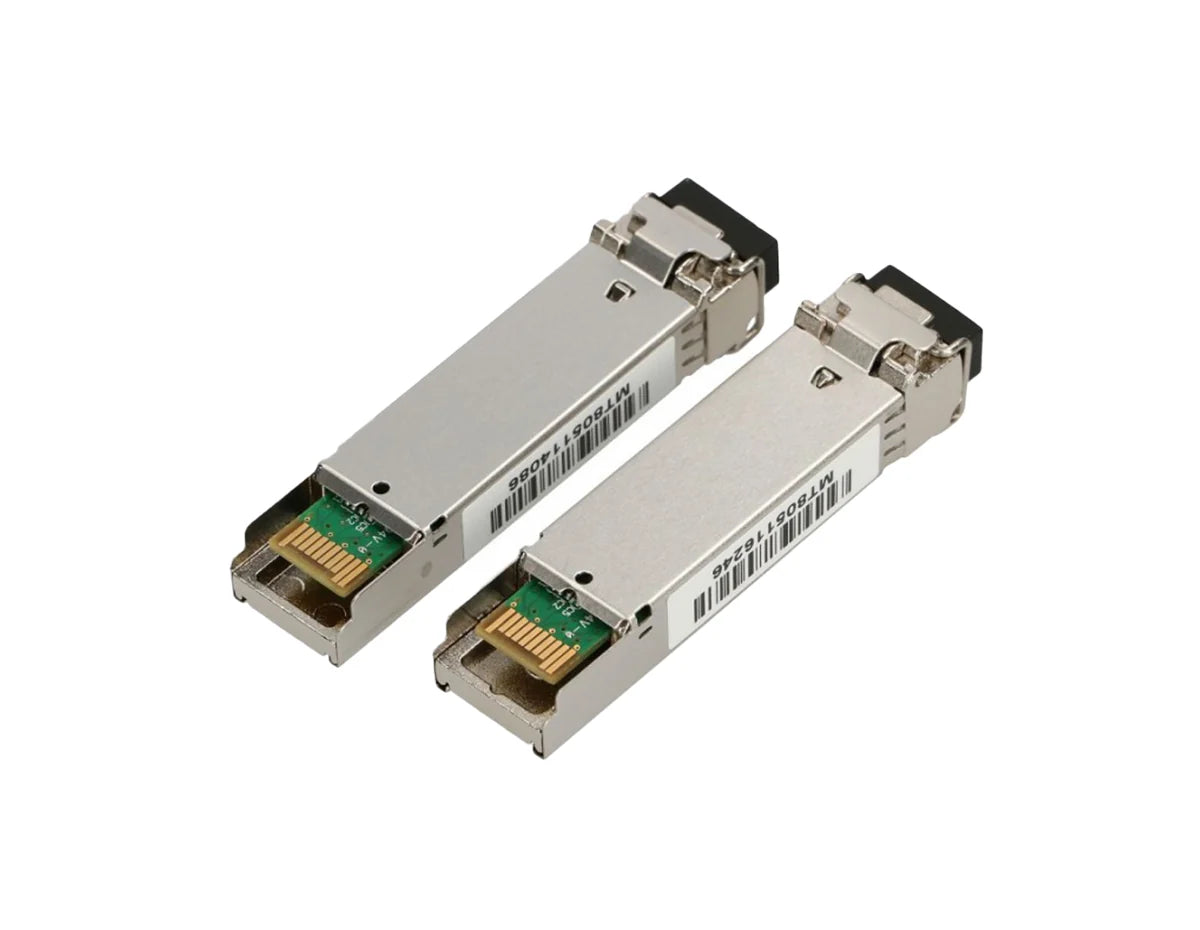

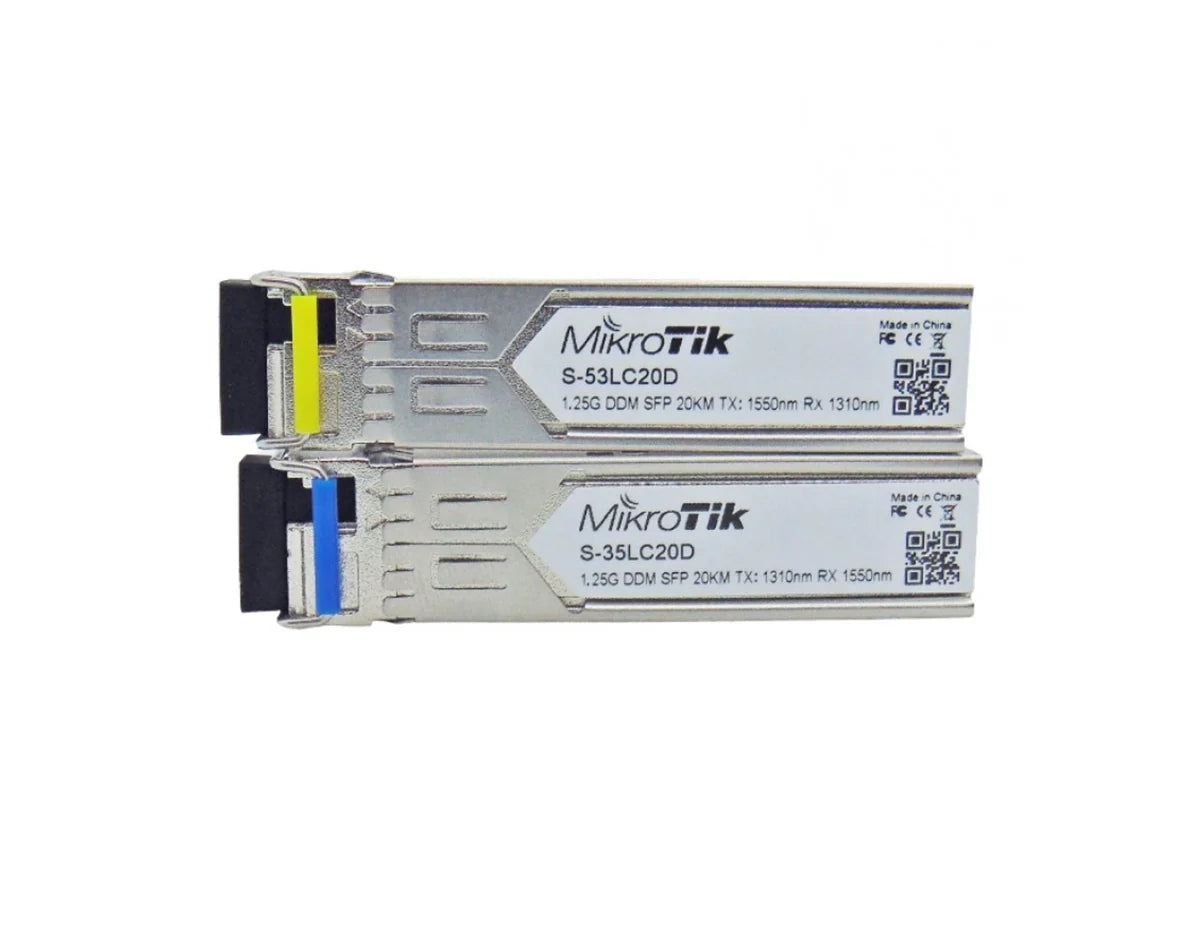

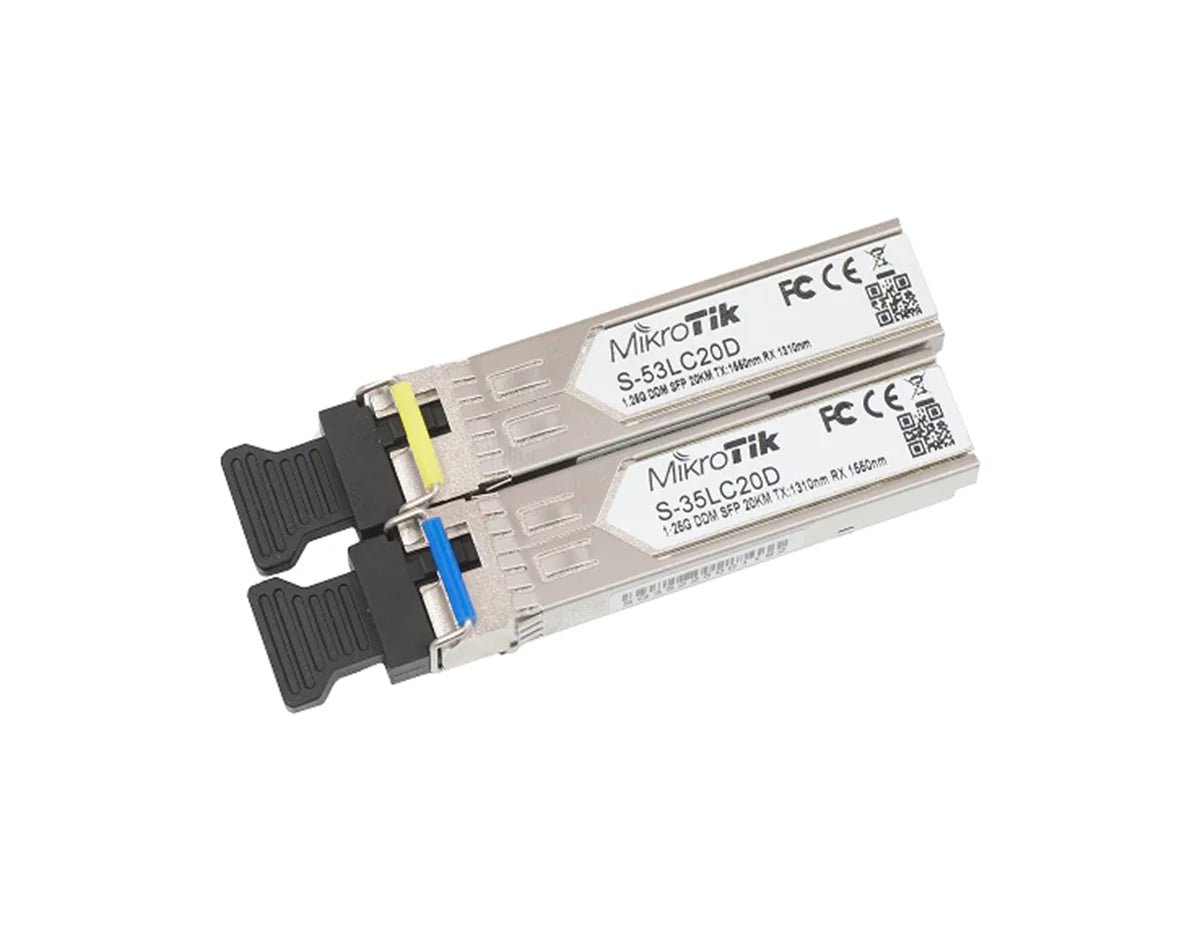

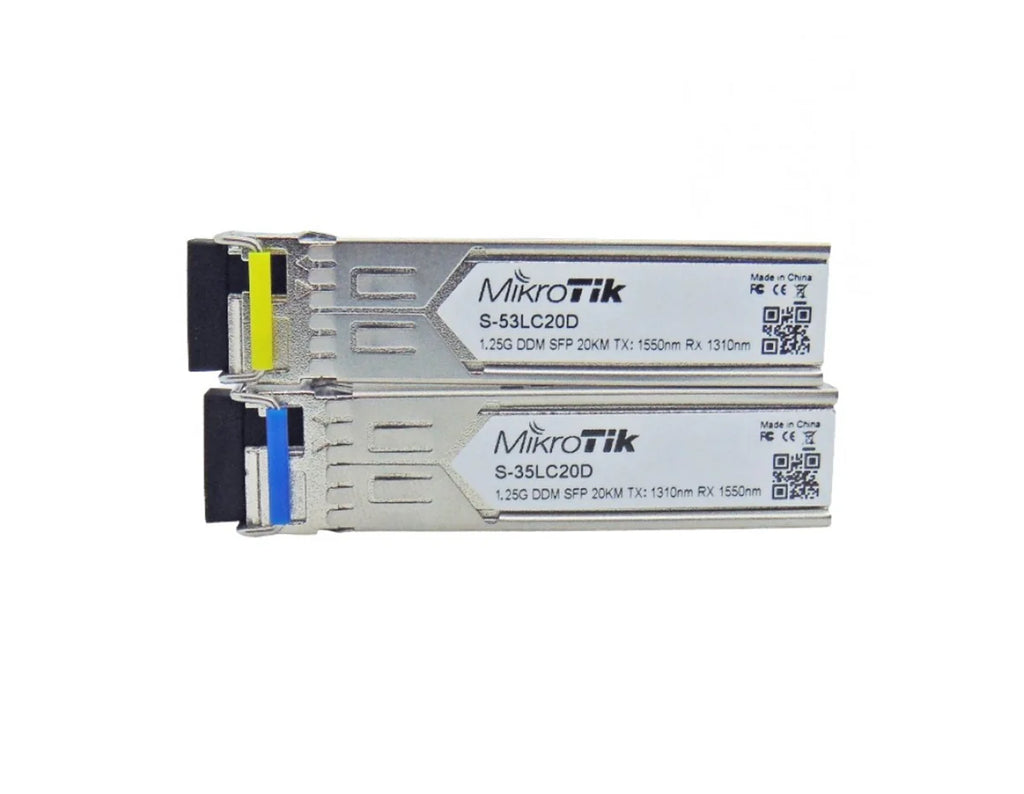

MikroTik S-3553LC20D
The S-3553LC20D comprises a set of SFP transceivers, specifically the S-35LC20D, which is a 1.25G Single Mode optical SFP module featuring an LC connector and operating at T1310nm/R1550nm. This module is designed for connections spanning up to 20km and is equipped with DDM support.
Quick Specs:
-
Distance: 20km
-
Data Rate: 1.25G
-
Format: SFP
-
Max Power Consumption: 1W
Please see the related tabs for the S-3553LC20D datasheet and compatible accessories.
