Description

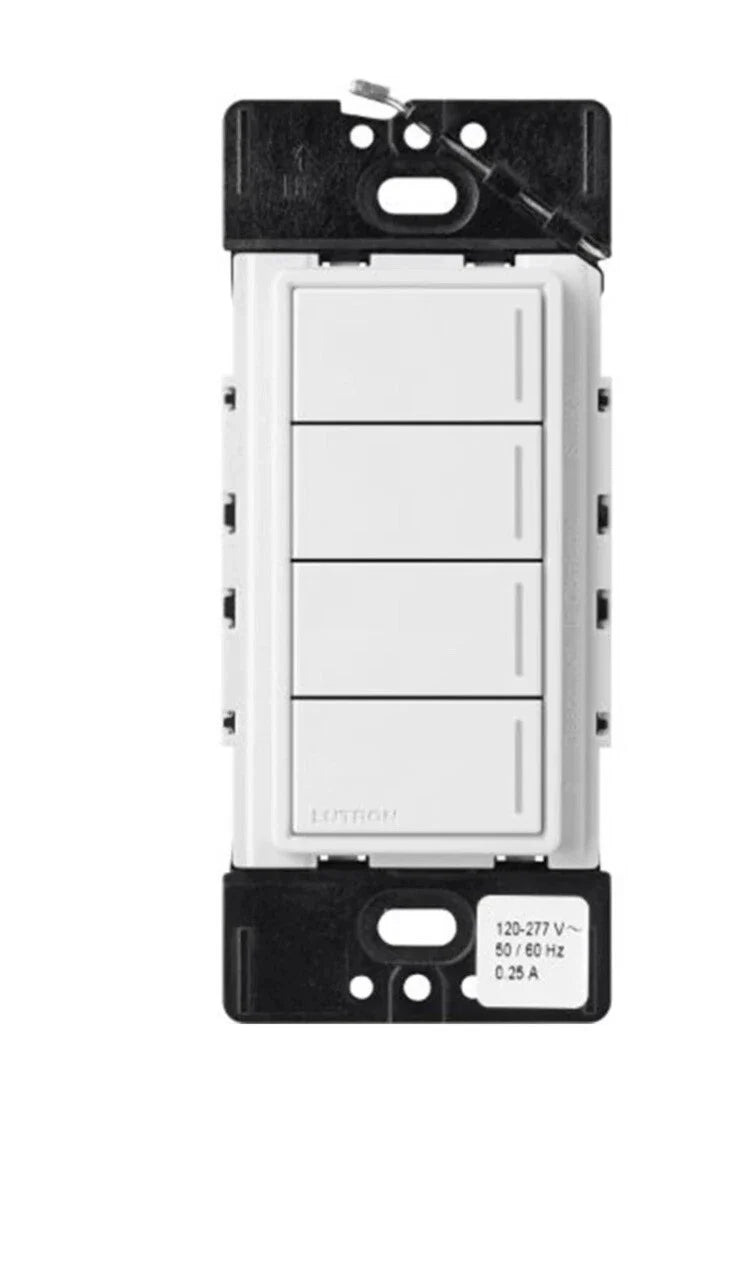

The Lutron RRST-HN4B-WH Sunnata RF Hybrid Keypad is a four-button wall-mounted control device designed for use with Lutron RadioRA 3 systems. Operating on 120 VAC at 50/60 Hz, it combines scene control and load dimming in a single unit, delivering elegant and intuitive lighting control through capacitive touch technology.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
RRST-HN4B-WH |
| Subcategory |
Keypads |
| Series |
Sunnata RF |
| System Compatibility |
Lutron RadioRA 3 |
| Voltage Rating |
120 VAC, 50/60 Hz |
| Communication Protocol |
Clear Connect Type X RF |
| Mounting Type |
Wall mount (standard single-gang) |
| Buttons |
4 programmable buttons |
| Control Type |
Hybrid keypad with integrated dimmer and scene control |
| Service Switch |
Front Accessible Service Switch (FASS) |
| RF Range |
Up to 25 feet |
| Color/Finish |
Gloss White (WH) |
| LED Indicators |
Yes (status and feedback illumination) |
| Button Personalization |
Custom engraved button kit included |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Certifications |
UL (Canada & US), NOM, FCC, IC |
| Material |
Plastic housing |
| Power Frequency |
50/60 Hz |
| Application |
Residential and commercial lighting control |
| Dimensions |
4.7 in H × 2.9 in W × 1.4 in D (approx.) |
| Weight |
0.25 lb (approx.) |
Information About RRST-HN4B-WH
The RRST-HN4B-WH belongs to the Lutron Sunnata RF family, created for integration within RadioRA 3 whole-home lighting control systems. This hybrid keypad merges a 4-button scene controller with a dimmer, allowing users to control lighting, shades, and other devices from a single wall station. It features a front-accessible service switch (FASS) for easy maintenance, and buttons can be customized with engraved labels for personalized control. Designed with Lutron’s Clear Connect Type X RF technology, it ensures reliable, low-latency wireless communication up to 25 feet for consistent, responsive operation.
Key Features:
- Hybrid Functionality: Combines dimming and multi-button scene control in one wall-mounted device.
- Four Configurable Buttons: Allows for scene selection, shade control, or other programmed functions.
- Clear Connect Type X RF: Provides reliable wireless communication for RadioRA 3 systems.
- Front Accessible Service Switch (FASS): Enables safe disconnection of power during maintenance.
- Customizable Buttons: Includes a personalized button kit for scene naming and layout flexibility.
- Elegant Aesthetic: Features a gloss white finish with soft LED indicators for modern design appeal.
- Wide Voltage Compatibility: Operates on 120 VAC at 50/60 Hz for residential installations.
- UL and FCC Certified: Meets UL, NOM, FCC, and IC safety and communication standards.
The RRST-HN4B-WH delivers the reliability and precision required for sophisticated whole-home lighting automation systems.
