Description

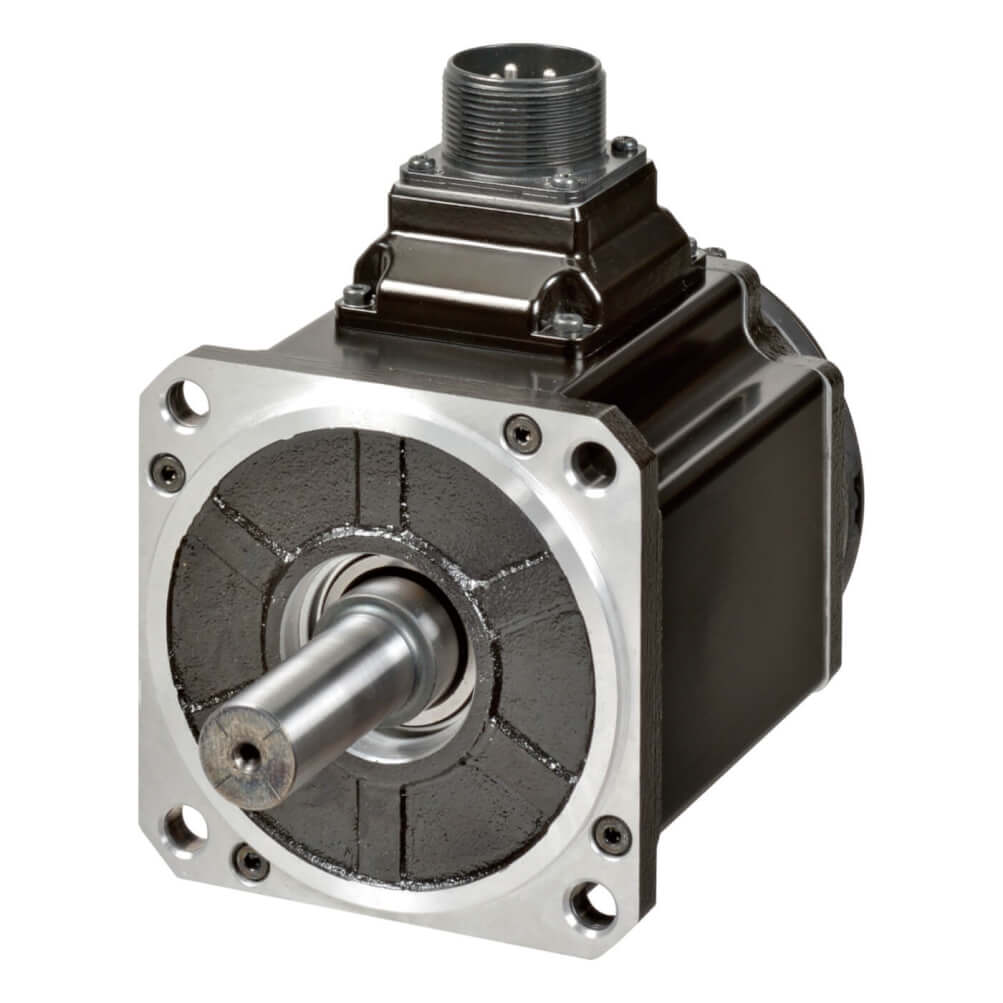

The Omron R88M-1L75030C-S2 is a high-performance 1S Series AC servo motor designed for precise motion control in industrial automation systems. Rated at 750 W with a maximum speed of 3000 rpm, it delivers stable torque output and accurate positioning. This motor features an absolute encoder without battery and is intended for EtherCAT-based servo control architectures.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Motion Control |
| Part Number |
R88M-1L75030C-S2 |
| Subcategory |
Servo Motors |
| Series |
1S Series |
| Motor Type |
AC Servo Motor |
| Rated Power |
0.75 kW |
| Rated Speed |
3000 rpm |
| Rated Torque |
2.39 Nm |
| Peak Torque |
7.16 Nm |
| Supply Voltage |
400 VAC, Three Phase |
| Servo Control Method |
EtherCAT |
| Encoder Type |
Absolute Encoder (Battery-less) |
| Encoder Resolution |
23 Bit |
| Flange Size |
100 mm Square |
| Shaft Diameter |
19 mm |
| Shaft Configuration |
Keyed and Tapped |
| Brake |
Included |
| Oil Seal |
Included |
| Dimensions (H × W × D) |
147 × 100 × 194 mm |
| Weight |
4.1 kg |
Information About R88M-1L75030C-S2
The R88M-1L75030C-S2 belongs to Omron’s 1S Series of AC servo motors developed for advanced motion applications requiring high precision and reliability. It operates on a 400 VAC three-phase power supply and supports EtherCAT communication when paired with compatible Omron servo drives. The motor incorporates a high-resolution 23-bit absolute encoder without battery to maintain position data without periodic maintenance. Designed with a 100 mm square flange, keyed and tapped shaft, brake, and oil seal, it is suitable for demanding industrial environments and continuous-duty applications.
Key Features:
- Omron 1S Series Servo Motor: Designed for high-performance industrial motion control systems
- 750 W Rated Output: Supports precise positioning and continuous operation
- 3000 RPM Rated Speed: Enables fast and responsive motion profiles
- High-Resolution Absolute Encoder: 23-bit resolution without battery for maintenance-free position retention
- EtherCAT Servo Control: Supports high-speed, synchronized motion control networks
- Brake and Oil Seal Equipped: Enhances safety and durability in industrial applications
- 100 mm Square Flange Mounting: Ensures rigid installation and mechanical compatibility
The R88M-1L75030C-S2 delivers the reliability and precision required for advanced servo-driven industrial automation systems.
