Description

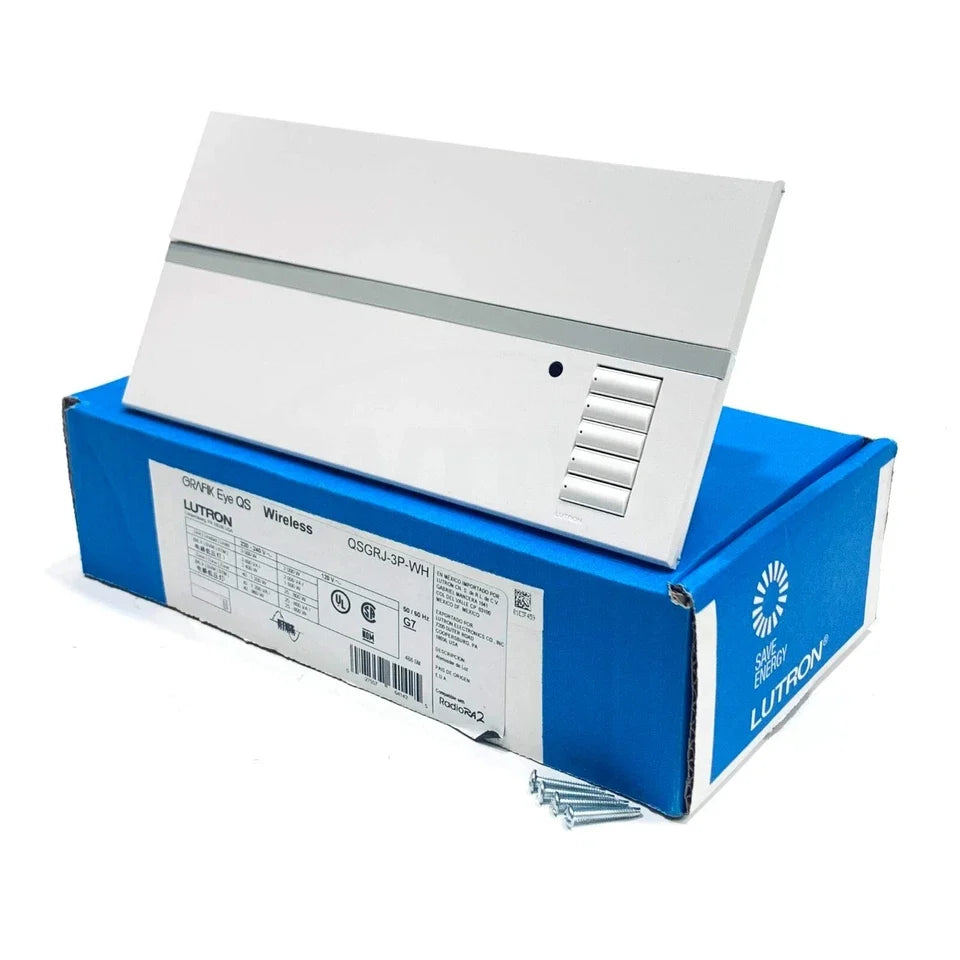

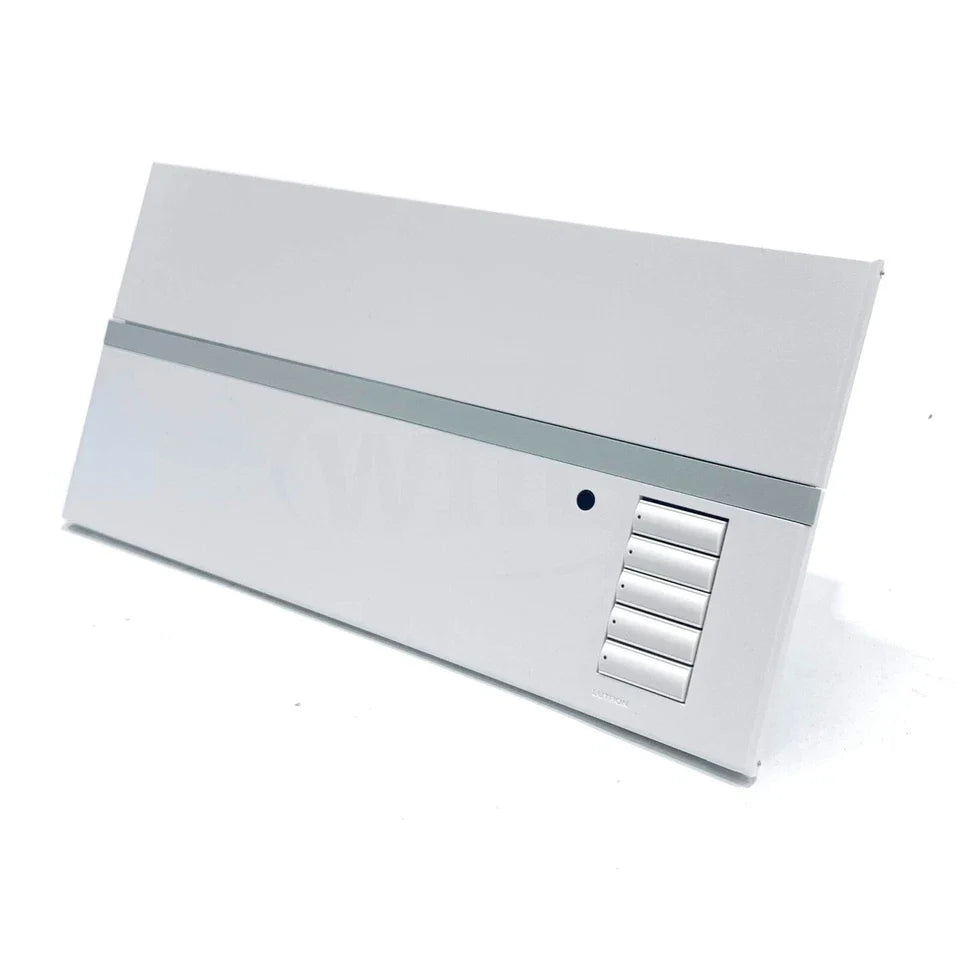

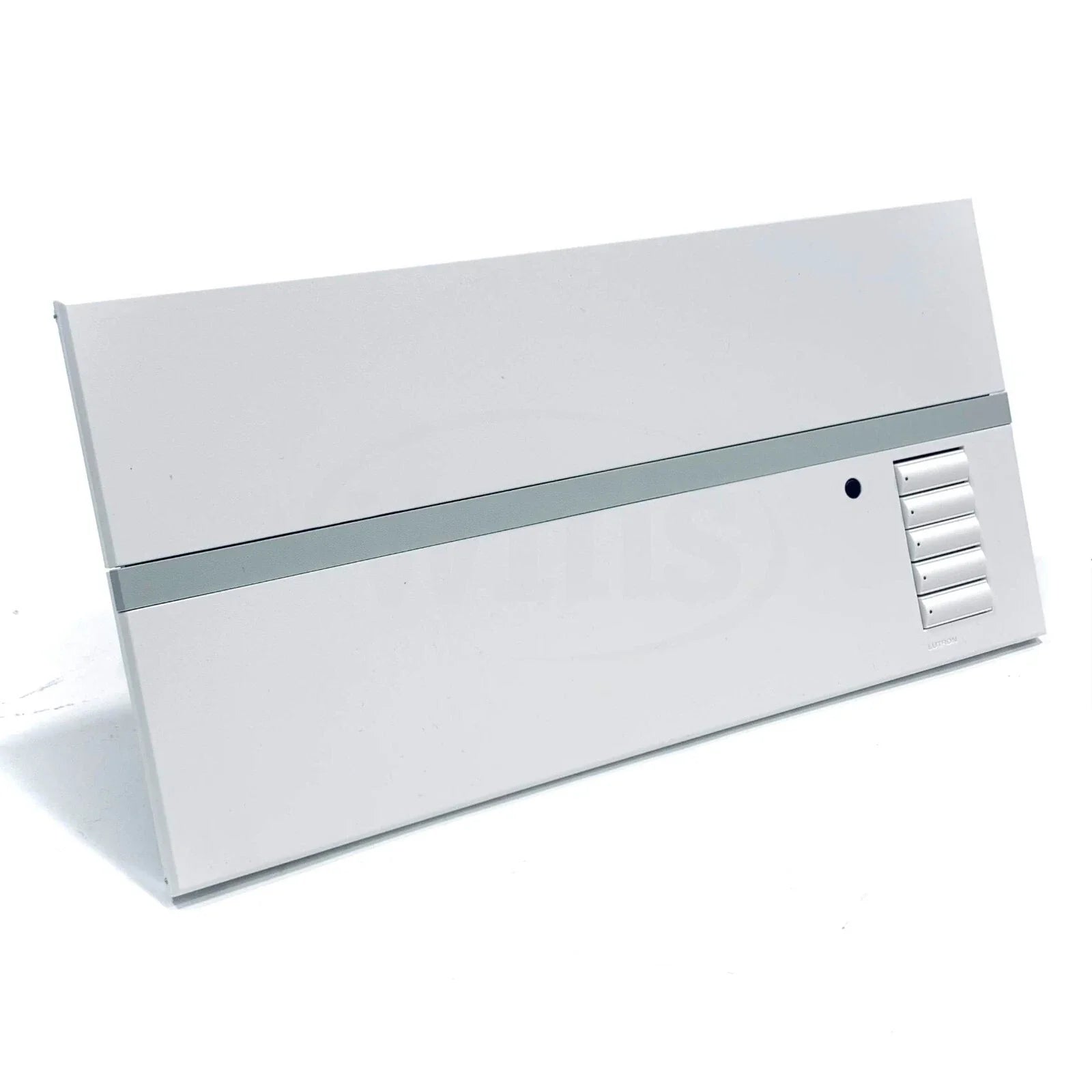

The Lutron QSGRJ-3P-WH is a GRAFIK Eye QS Wireless main control unit featuring three individually programmable lighting zones. Designed for both 120–127 V and 220–240 V systems, it delivers flexible scene control and integration within commercial and residential environments. Its wireless QS technology enables seamless communication with other Lutron components for dynamic lighting management.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
QSGRJ-3P-WH |
| Subcategory |
Control Units |
| Series |
GRAFIK Eye QS |
| Zones |
3 lighting zones |
| Voltage Input |
120–127 V or 220–240 V AC |
| Load Capacity (120–127V) |
25–800 W (25–800 VA) MLV, up to 2000 VA total |
| Load Capacity (220–240V) |
40–1200 W (40–1200 VA) MLV, up to 2000 VA total |
| Frequency |
434 MHz RF (QS wireless communication) |
| Mounting Type |
Wall-mounted |
| Control Type |
Scene control with zone dimming |
| Front Cover |
Opaque |
| Wireless Protocol |
Clear Connect RF (QS-compatible) |
| System Compatibility |
GRAFIK Eye QS, Quantum, HomeWorks QS |
| Interface |
Local keypad interface + remote capability |
| Finish |
White (WH) |
| Compliance |
CE, UL, RoHS |
| Weight |
1.25 lb |
Information About QSGRJ-3P-WH
The QSGRJ-3P-WH is part of the GRAFIK Eye QS series, Lutron’s modular lighting control solution supporting scalable zone-based control. This unit supports up to three lighting zones and offers wireless integration through Lutron’s QS RF protocol at 434 MHz. It is voltage-adaptable for both 120–127 V and 220–240 V applications, making it suitable for international installations. With its opaque front cover and clean wall-mount design, it’s ideal for projects where energy efficiency, user comfort, and streamlined system integration are essential.
Key Features:
- 3-Zone Control: Independently manages up to three lighting zones.
- Dual Voltage Support: Operates at 120–127 V or 220–240 V systems.
- QS Wireless Integration: Communicates over 434 MHz RF with QS devices.
- High Load Capacity: Handles up to 2000 VA total lighting loads.
- Scene Recall: Supports programmable lighting scenes for efficiency and comfort.
- Magnetic Low Voltage Support: Compatible with MLV dimming at high voltage.
- Modern Design: Opaque cover with clean flush-mount appearance.
- Energy Efficient: Helps meet energy codes and reduce consumption.
The QSGRJ-3P-WH delivers the precision and flexibility required for adaptive, multi-zone wireless lighting control.
