Description

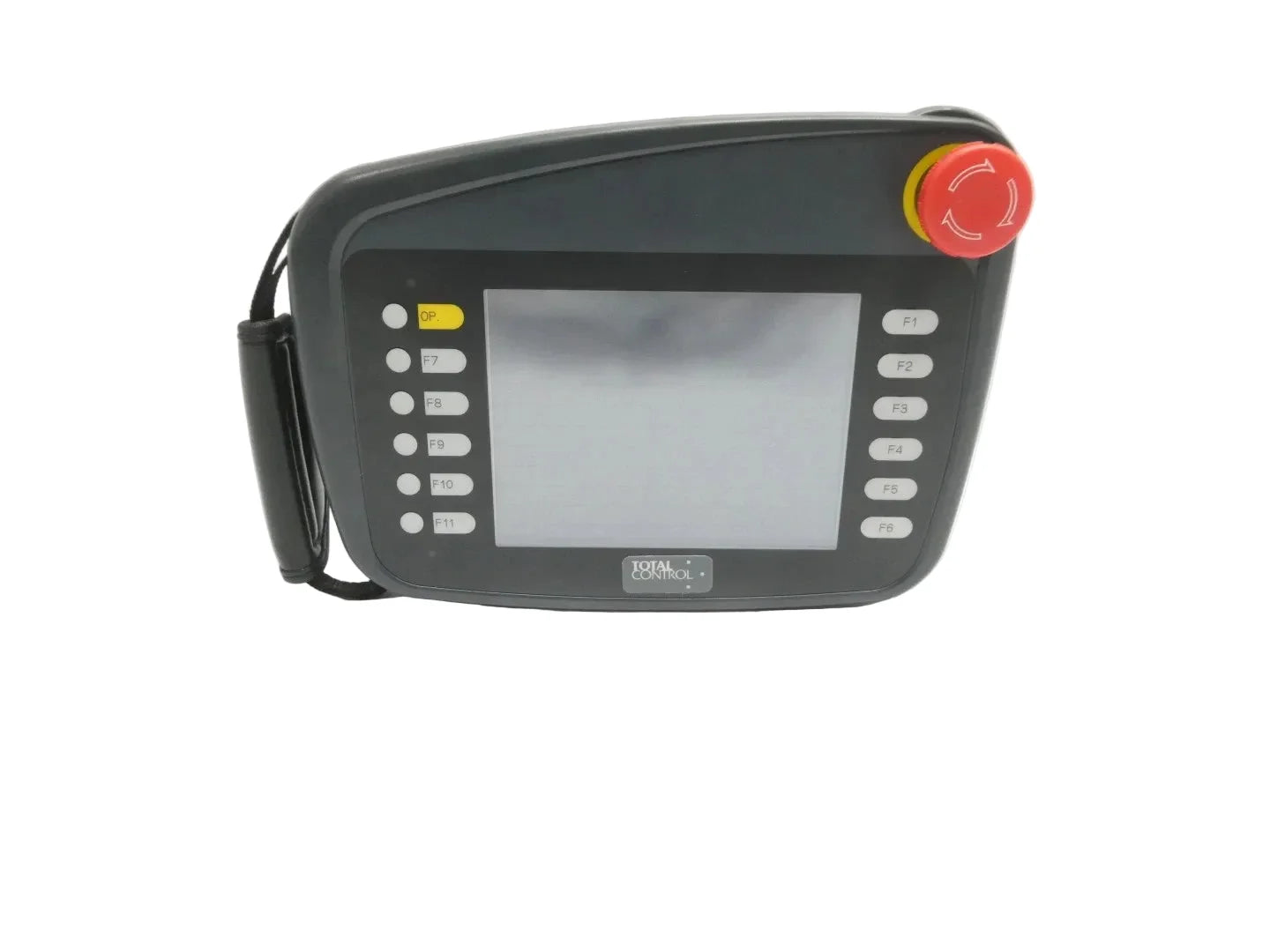

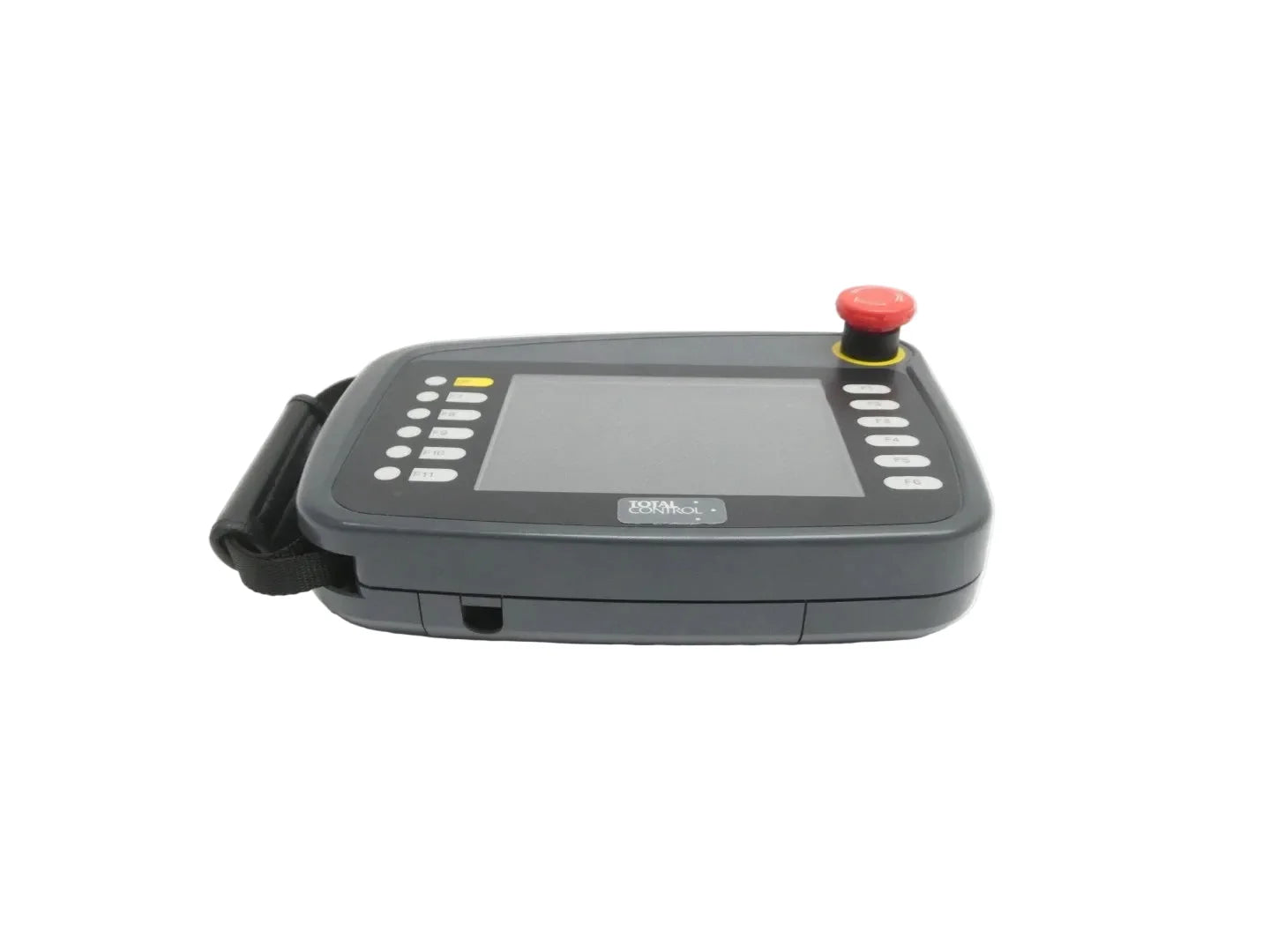

The GE Fanuc QPH-2D100-S2P is a handheld QuickPanel operator interface designed for industrial control and monitoring applications. It features a 5.7-inch STN color LCD display with 240 × 320 resolution and operates on 24 VDC power. Built for panel and handheld use, it provides touch-based control in environments rated NEMA 4X/12 and IP65.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc Total Control |
| Category |
HMI / MMI / OIT |
| Part Number |
QPH-2D100-S2P |
| Subcategory |
Operator Interface |
| Series |
QuickPanel Hand Held |
| Screen Size |
5.7 Inch |
| Display Type |
STN Color LCD |
| Resolution |
240 × 320 Pixels |
| Input Voltage |
24 VDC (20–27 VDC Range) |
| Power Consumption |
50 VA Maximum |
| NEMA Rating |
Type 4X/12 |
| IP Rating |
IP65 |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-20°C to 60°C |
| Software Version |
QuickDesigner Version 3.7 |
| Weight |
1.95 lbs |
Information About QPH-2D100-S2P
The QPH-2D100-S2P belongs to the GE Fanuc QuickPanel Hand Held series and is categorized within the Junior line of operator interfaces. It is designed as a touch-based interface without physical pushbuttons, supporting machine visualization and control functions. The unit operates on 20–27 VDC input and consumes up to 50 VA during operation, with short-term power immunity up to 20 milliseconds. Engineered for industrial environments, it operates within 0°C to 45°C and supports storage conditions from -20°C to 60°C.
Key Features:
-
5.7-Inch STN Color Display: Provides 240 × 320 pixel resolution for machine interface.
-
Touchscreen Operation: Eliminates need for physical switches or buttons.
-
24 VDC Power Input: Operates within 20–27 VDC range.
-
NEMA 4X/12 and IP65 Rated: Suitable for protected industrial environments.
-
QuickDesigner v3.7 Compatible: Supports configuration through designated software.
-
50 VA Maximum Consumption: Defined power usage for control systems.
-
20 ms Power Immunity: Maintains stability during brief power interruptions.
-
Handheld Form Factor: Designed for portable operator interaction.
The QPH-2D100-S2P delivers the reliability and precision required for industrial operator interface and machine control applications.
