Description

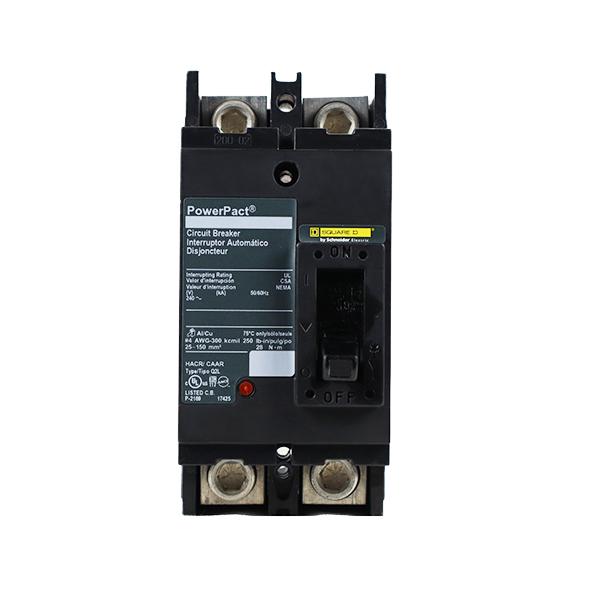

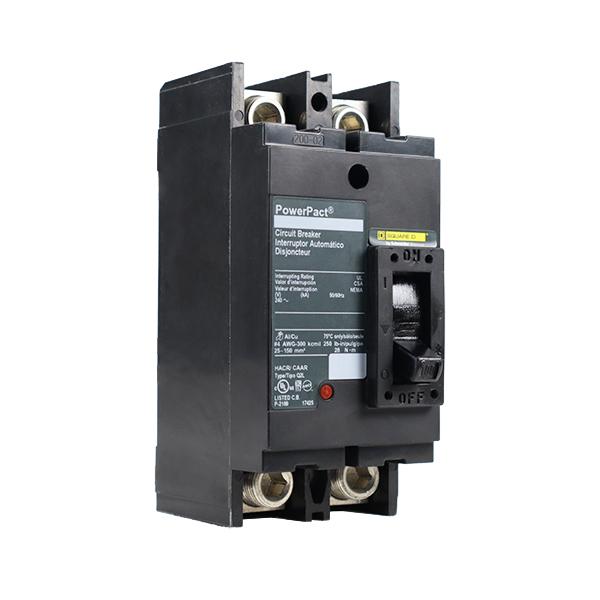

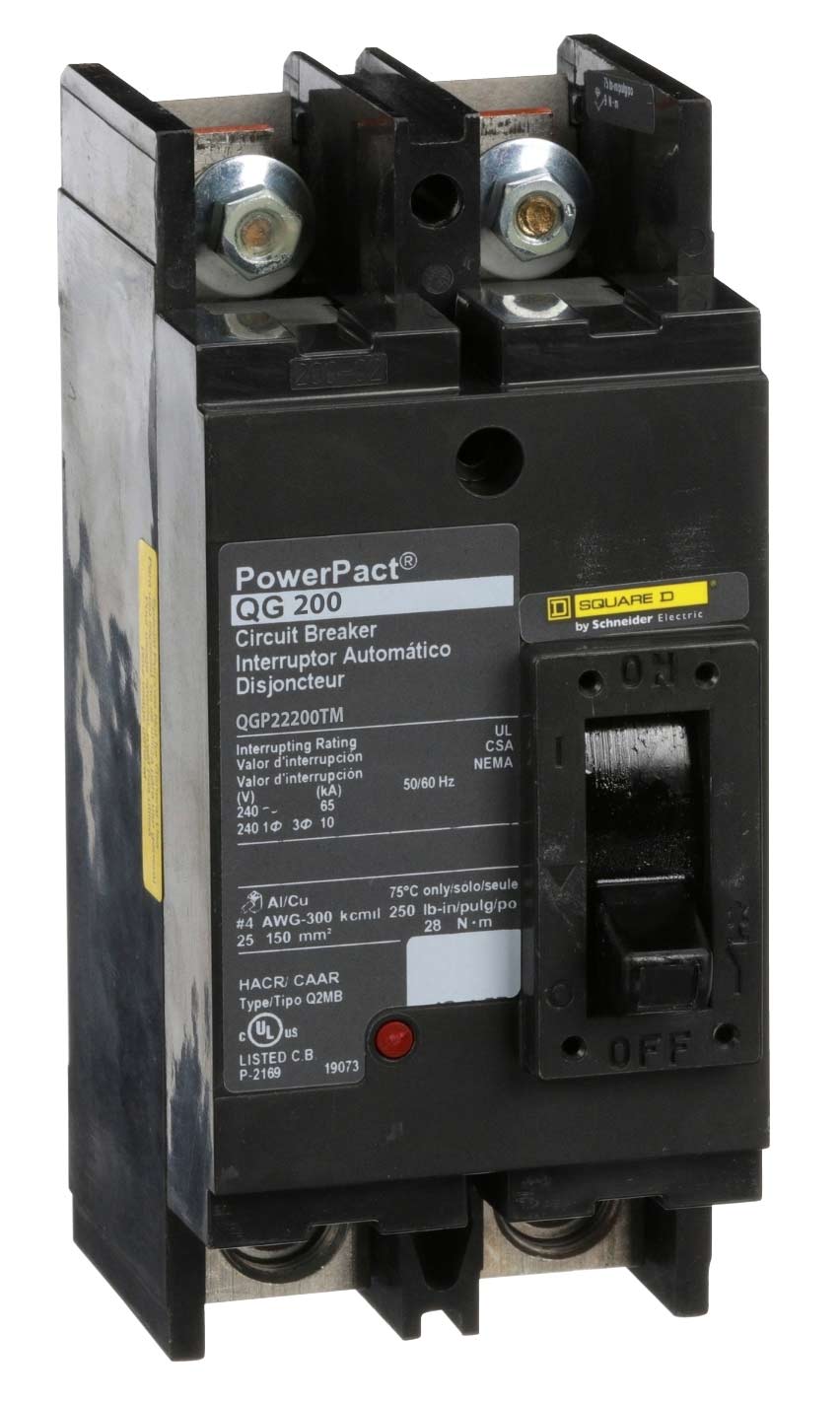

The Square D QGP22200TM is a 2-pole thermal magnetic molded case circuit breaker rated for 200 Amps and 240VAC operation. Designed for high-interrupting performance, it offers a breaking capacity of 65kA, ensuring dependable protection against overloads and short circuits. This breaker is commonly used in Meter-Pak systems, switchboards, and distribution panels for reliable electrical system protection and load management.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Circuit Protection |
| Part Number |
QGP22200TM |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
PowerPact QGP |
| Amperage Rating |
200A |
| Voltage Rating |
240VAC |
| Poles |
2 |
| Phase |
Single Phase |
| Mounting Type |
Plug-On / Bolt-On |
| Interrupting Rating |
65kA at 240VAC |
| Protection Type |
Thermal Magnetic |
| Trip Unit Function |
Long-Time and Instantaneous (LI) |
| Breaking Capacity Code |
G |
| Rated Insulation Voltage (Ui) |
240V AC |
| Rated Impulse Withstand Voltage (Uimp) |
8kV |
| Continuous Current Rating |
80% |
| Electrical Connection |
Terminal Nut (Line) / Lugs (Load) |
| Torque Rating |
28 N·m (247.8 lbf·in) |
| Standards Compliance |
UL, CSA, NEMA, NOM-003-SCFI-2000 |
| Operating Temperature |
40°C to 70°C |
| Height |
6.47 in (164.34 mm) |
| Width |
3 in (76.2 mm) |
| Depth |
3.93 in (99.82 mm) |
| Weight |
3.28 lb (1.49 kg) |
Information About
QGP22200TM
The QGP22200TM is part of the Square D PowerPact QGP series, engineered for high-performance protection in commercial and industrial electrical systems. Built with a durable molded case housing, it integrates LI (Long-Time and Instantaneous) trip functions and thermal-magnetic protection technology. This model is designed with a plug-on bolt-on mounting configuration for quick installation in Meter-Pak metering equipment and distribution enclosures. With compliance to UL, CSA, and IEC standards, the breaker provides safe, consistent operation under demanding load conditions.
Key Features:
- High Interrupting Capacity: 65kA at 240VAC ensures robust fault protection in high-demand systems.
- Thermal-Magnetic Trip Unit: Combines long-time and instantaneous trip functions for precise overload and short-circuit response.
- Compact 2-Pole Design: Efficiently supports 200A current rating in single-phase installations.
- Durable Construction: Molded case design ensures long-term mechanical and electrical reliability.
- Easy Mounting: Plug-on bolt-on connection simplifies installation and maintenance.
- Versatile Application: Suitable for Meter-Pak systems, switchboards, and commercial panelboards.
- Certified Safety Compliance: Meets UL, CSA, and NOM standards for international acceptance.
- Operating Temperature Range: Reliable performance from 40°C to 70°C.
The QGP22200TM delivers the reliability and precision required for safe and efficient circuit protection in commercial and industrial electrical networks.
