Description
The Schneider Electric Q23225NRB is a heavy-duty safety switch designed to provide reliable manual disconnection of electrical power in industrial and commercial applications. It is commonly used as a local disconnect for motors, HVAC equipment, and branch circuits to ensure safe maintenance and servicing. This switch delivers dependable performance in environments requiring clear and secure power isolation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Safety Switches |
| Part Number |
Q23225NRB |
| Subcategory |
Non-Fusible Safety Switches |
| Switch Type |
Heavy-duty safety switch |
| Current Rating |
225 A |
| Voltage Rating |
240 V AC |
| Number of Poles |
3 |
| Fuse Type |
Non-fusible |
| Enclosure Rating |
NEMA 3R |
| Mounting Style |
Wall or panel mount |
| Handle Type |
External, lockable |
| Application |
Motor and equipment disconnect |
| Standards Compliance |
UL listed |
| Weight |
23.7 ib |
Information About Q23225NRB

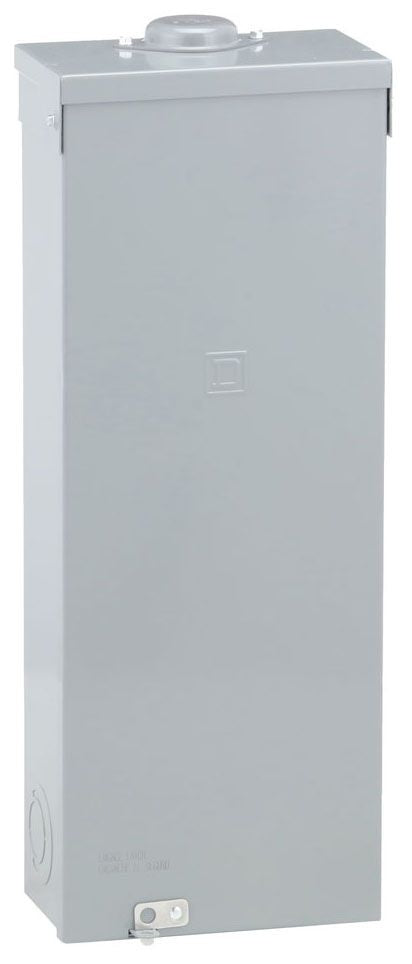

The Q23225NRB is part of Schneider Electric’s Square D safety switch product line, known for durable construction and compliance with electrical safety standards. It features a robust metal enclosure designed to protect internal switching components from environmental exposure. The switch is compatible with low-voltage AC power systems and is typically installed as a service or equipment disconnect. Its mechanical switching mechanism provides positive opening and visible blade action to enhance operational safety.
Key Features:
- Square D Safety Switch: Designed for dependable manual power disconnection.
- Non-Fusible Configuration: Provides isolation without integrated fuse protection.
- 3-Pole Design: Allows simultaneous disconnection of three conductors.
- Heavy-Duty Enclosure: Metal housing supports use in industrial environments.
- Visible Blade Action: Confirms open or closed status for maintenance safety.
- Lockable Handle: Supports lockout/tagout procedures during servicing.
- Service Disconnect Use: Suitable for motors, HVAC units, and branch circuits.
The Q23225NRB delivers the reliability and precision required for safe electrical isolation in industrial and commercial power systems.
