Description

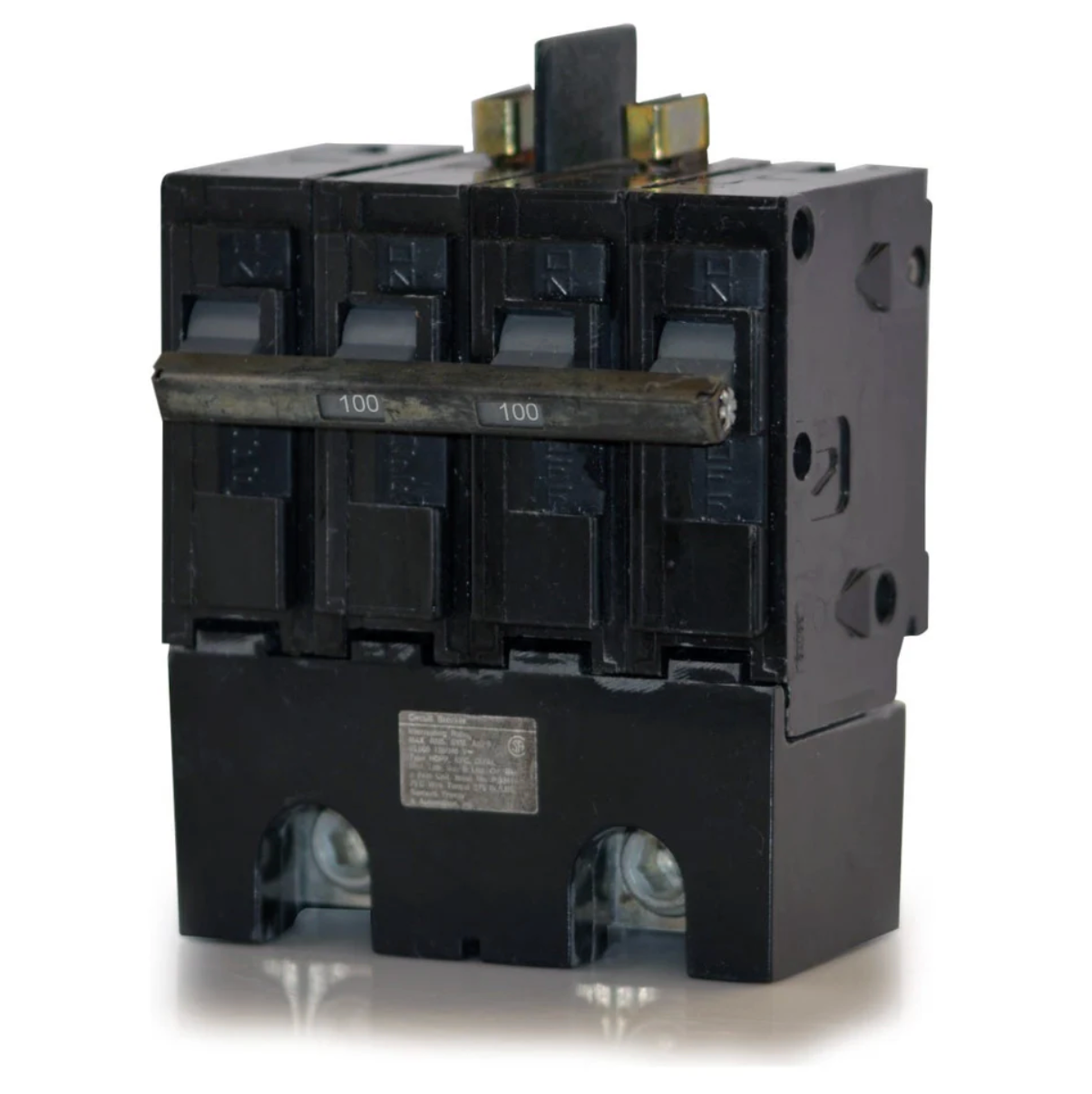

The Siemens Q2100HH is a 2-pole molded case circuit breaker designed to provide dependable protection for residential, commercial, and light industrial electrical systems. Rated at 100 amps and 120/240 VAC, this breaker ensures efficient overload and short-circuit protection with a high interrupting capacity of 65kA@240V. The Q2100HH combines durable construction with Siemens’ reliable thermal magnetic trip technology for long-term performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Breaker |
| Part Number |
Q2100HH |
| Subcategory |
Molded Case |
| Series |
Q Series |
| Type |
HQP |
| Amperage Rating |
100 A |
| Voltage Rating |
120/240 VAC |
| Poles |
2 |
| Phase |
Single Phase |
| Interrupting Rating |
65kA@240V |
| Trip Function |
LI – Long-Time and Instantaneous |
| Protection Type |
Thermal Magnetic |
| Connection Type |
Plug-In |
| Mounting Type |
Bolt-On |
| Wire Size Range |
#8 to 2/0 AWG (Al/Cu) |
| Frame Type |
Q Frame |
| Standards |
UL Listed |
| Country of Origin |
Mexico |
| Dimensions |
2.756 x 2.756 x 1.969 in |
| Weight |
0.68 lbs |
Information About Q2100HH
The Q2100HH is part of the Siemens Q Series of molded case circuit breakers, known for their compact size and high interrupting capabilities. Built with thermal magnetic trip technology, it offers both long-time and instantaneous protection against overloads and short circuits. Designed for plug-in or bolt-on mounting, the breaker is compatible with Siemens load centers and panelboards. Its robust 2-pole configuration supports single-phase applications, making it suitable for both residential and commercial electrical installations.
Key Features:
- High Interrupting Capacity: Rated at 65kA@240V for enhanced fault protection.
- Thermal Magnetic Trip Unit: Provides precise overload and short-circuit protection.
- Compact 2-Pole Design: Ideal for 120/240 VAC single-phase systems.
- Plug-In Mounting: Simplifies installation in Siemens load centers and panels.
- Durable Frame Construction: Ensures long operational life under demanding conditions.
- UL Listed: Certified for safety and compliance with industry standards.
- Wide Wire Range: Accepts #8 to 2/0 AWG aluminum or copper conductors.
- Reliable Performance: Engineered for consistent operation in residential and commercial environments.
The Q2100HH delivers the reliability and precision required for dependable circuit protection in modern electrical systems.
