Description

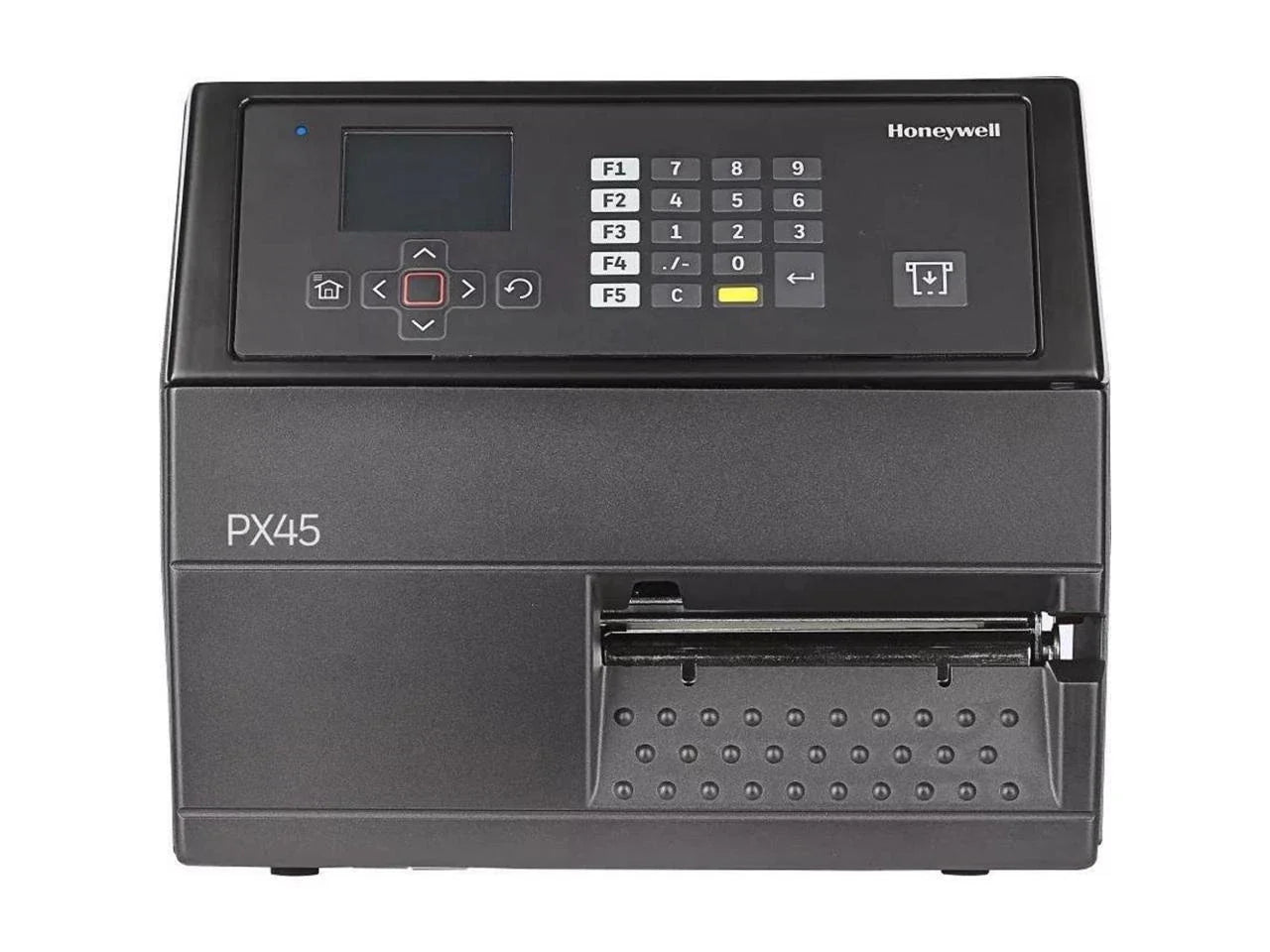

The Honeywell PX45A00000000200 is a 203 dpi industrial thermal transfer barcode label printer engineered for continuous, high-volume printing in demanding production and logistics environments. With its rugged all-metal construction, advanced connectivity, and 12 ips (inches per second) print speed, the PX45 delivers exceptional performance and long-term reliability for mission-critical labeling applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Printers |
| Part Number |
PX45A00000000200 |
| Subcategory |
Printer |
| Product Type |
Barcode Label Printer |
| Print Method |
Thermal Transfer |
| Resolution |
203 dpi |
| Print Speed |
Up to 12 in/sec |
| Maximum Print Width |
4 inches (102 mm) |
| Print Length |
Up to 99 inches (2.5 m) |
| Connectivity |
Ethernet (10/100 Mbps), USB 2.0, RS-232 Serial |
| Supported Languages |
DP/FP, IPL, ZSim, DPL |
| Flash Memory |
512 MB |
| RAM |
128 MB SDRAM |
| Display |
Optional color touch-screen or icon-based LCD |
| Construction |
All-metal chassis and print mechanism |
| Media Type |
Continuous, die-cut, black mark, perforated |
| Media Core Size |
3 inches (76 mm) |
| Ribbon Type |
Wax, wax/resin, or resin thermal transfer |
| Ribbon Core Size |
1 inch (25.4 mm) |
| Ribbon Length |
Up to 450 m |
| Smart Printing |
Fingerprint and C# programmable |
| Power Supply |
100–240 V AC, 50/60 Hz (US & EU cords included) |
| Operating Temperature |
+5 °C to +40 °C (+41 °F to +104 °F) |
| Storage Temperature |
-20 °C to +70 °C (-4 °F to +158 °F) |
| Durability |
Industrial-grade 24/7 use |
| Dimensions |
13.3 in H × 11.2 in W × 19.4 in D (338 × 284 × 493 mm) |
| Weight |
35.00 lbs (15.9 kg) |
Information About PX45A00000000200
The PX45A00000000200 is part of Honeywell’s PX45 Series, a line of high-performance industrial printers designed for around-the-clock operation in manufacturing, warehousing, and distribution settings. This model supports multiple print languages, including DP/FP, IPL, ZSim, and DPL, allowing drop-in integration into mixed-fleet printer environments. Built with a modular, all-metal frame and print mechanism, the PX45 ensures durability under harsh conditions. It offers advanced connectivity through Ethernet, USB, and RS-232 ports, and features Honeywell’s Smart Printing technology, enabling standalone operation without a connected PC. The printer’s QuickMount™ magnetic printhead simplifies maintenance, minimizing downtime and cost.
Key Features:
- High-Speed Industrial Printing: Delivers up to 12 inches per second for high-volume operations.
- 203 dpi Thermal Transfer Printing: Provides clear, reliable print quality for barcodes, labels, and compliance tags.
- All-Metal Industrial Design: Rugged construction ensures long life in 24/7 production environments.
- Smart Printer Functionality: Runs standalone applications directly on the printer using Fingerprint or C#.
- Multi-Language Command Support: Compatible with DP/FP, IPL, ZSim, and DPL command sets for seamless integration.
- Flexible Connectivity: Standard interfaces include Ethernet (10/100 Mbps), RS-232 serial, and USB 2.0 for versatile integration.
- QuickMount™ Printhead: Magnetic design enables easy replacement without tools or alignment.
- Wide Media Compatibility: Supports a variety of label types, including continuous, die-cut, and black mark.
- Large Memory Capacity: 512 MB Flash memory enables fast data processing and large label file storage.
- Global Compatibility: Ships with US & EU power cords for worldwide deployment.
The PX45A00000000200 delivers the reliability, speed, and smart features required for continuous industrial barcode labeling and traceability.
